MACHINE OVERVIEW
MODULE OVERVIEWS
4.4 Technical Reference Manual Chapter Issue 4 Nov 09
MODULE OVERVIEWS
Man Machine
Interface (MMI)
Module
The MMI module enables communication and interaction between the user and
the machine. This is achieved by the use of the touchscreen or monitor, IR
keyboard/mouse or standard keyboard/mouse, tricoloured beacon, USB con-
nector(s) and the two button control system. The IR keyboard/mouse or
standard keyboard/mouse is also available for maintenance purposes.

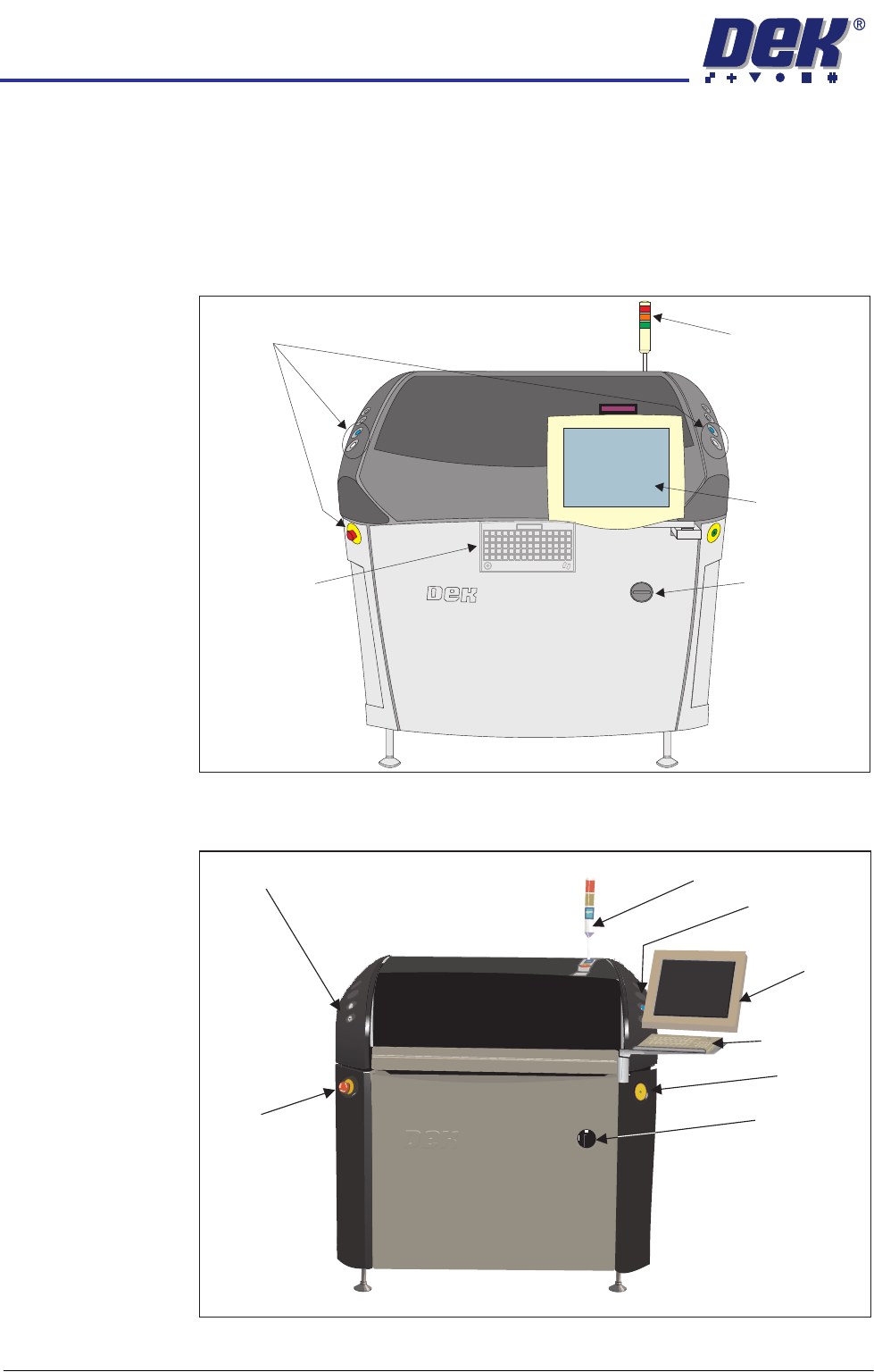

Figure 4-4 MMI Sliding Glass Cover
Figure 4-5 MMI Sliding Glass Cover (iX)
Control Switches
Tricolour Beacon
Touchscreen
Monitor
IR Keyboard/
Mouse (stowed
inside front cover)
Mains Isolator
Switch
Programmable Beacon
ESD Point
Control Buttons
Control Buttons
E Stop
Touch Screen
Monitor
Mains Isolator
Switch
Keyboard
& Tracker Ball
Mouse
MACHINE OVERVIEW
MODULE OVERVIEWS
Chapter Issue 4 Nov 09 Technical Reference Manual 4.5
Figure 4-6 MMI Metal Covers
Left Jog Button
E Stop
Right Jog Button
System Button
Tricolour Beacon
Mains Isolator Switch
Monitor
USB ConnectorUSB Connector
MACHINE OVERVIEW
MODULE OVERVIEWS
4.6 Technical Reference Manual Chapter Issue 4 Nov 09
Power Supply
Module
The M37 power supply module fulfils the following functions:
• Transform and rectify the mains voltage supply to the voltages required by
the electrical systems throughout the machine.
• Electrical safety - achieved by the use of emergency stop safety circuits (E
Stop). When an E Stop is activated, power is removed from selected areas
of the machine.
Machine Control
Module
The M36 machine control enclosure is the central hub controlling machine
motion. Machine control also consists of I/O Nodes throughout the machine
connected to the machine control enclosure using a CAN Bus.
Machine control is an interface between the software and:
• Stepper Motors
• Servo Motors
• Linear Motors
• Sensors
• Switches
• Solenoids
•Lamps
Machine PC
Module
The machine PC enclosure is the master controller of the machine. Issuing
sequential control commands to slave systems via the machine control enclo-
sure, the PC analyses the feedback signals and issues further commands to
ensure the correct operation and safety of the machine.
Figure 4-7 Power Supply - Machine Control - Machine IBus PC
Power Supply Module Machine PC EnclosureMachine Control Enclosure
