Page +$1:+$ 51 DE CA N S 1 Ba s e Fr am e (R ea r ) NO. P ART NO. P ART NAME Q'TY Old No. S u pply S upply L T Reference 1 EP 21-90 0002 STO PPER 2 2 EP 07-00 0576 BRE A KE R,CIR CUIT 1 EP 07-00 0731 BRE A KE R,CIR …
Page
+$1:+$
50
DECAN
S1

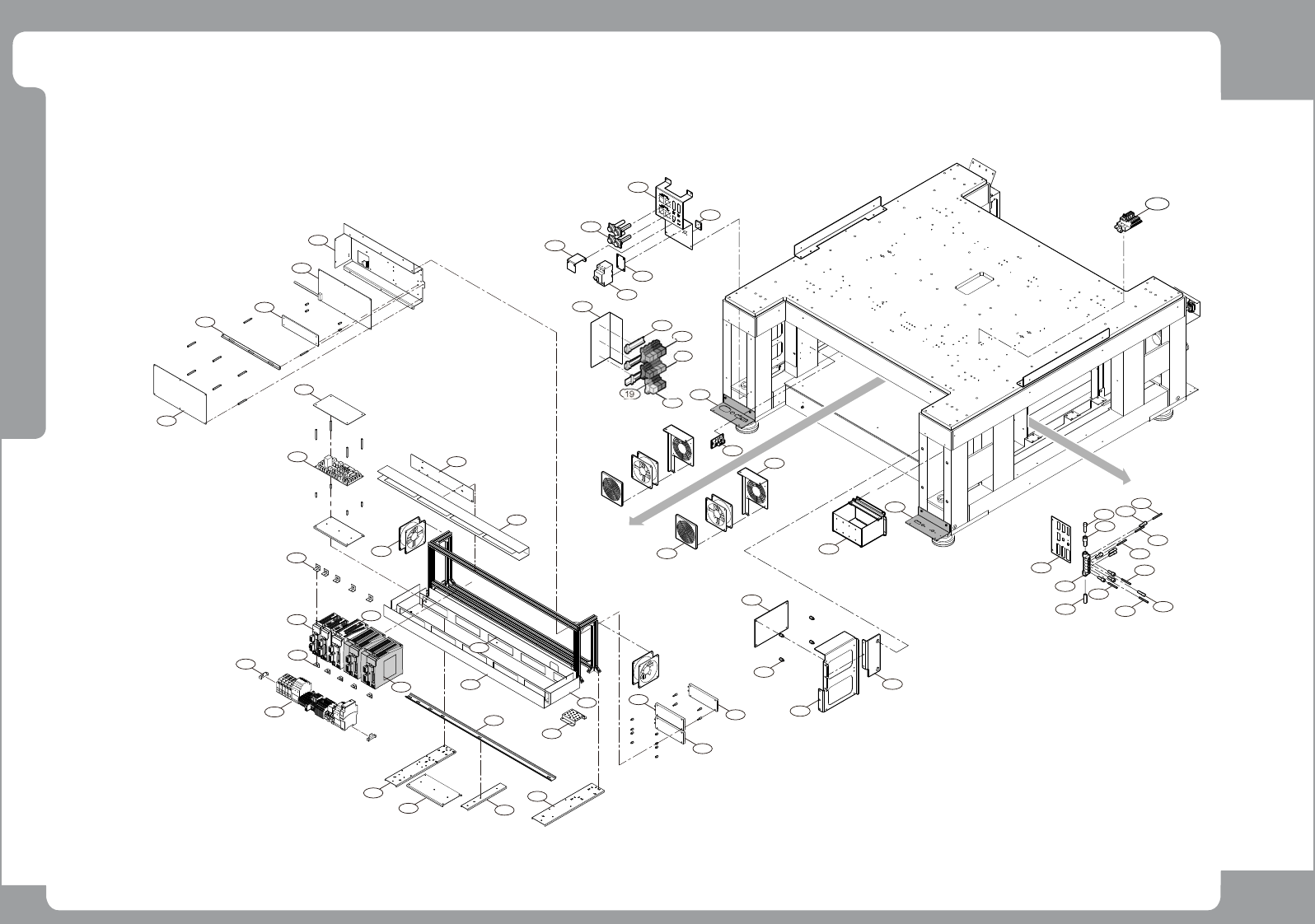

Base Frame (Rear)
13
42
50
40
41
17
48
20
31
32
33
56
21
15
43
44
49
29
30
54
55
56
22
51
52
34
56
55
56
16
45
18
68
14
19
57
6
12
23
24
25
8
9
10
3
60
47
7
1
26
27
62
5
28
58
61
59
4
11
2
35
46
63
39
36
Page
+$1:+$
51
DECAN
S1
Base Frame (Rear)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP21-900002 STOPPER 2
2 EP07-000576 BREAKER,CIRCUIT 1
EP07-000731 BREAKER,CIRCUIT 1
EP18-900018 MAGNETIC CONTACTOR 2
EP18-001050 RELAY,DC 1
EP21-001080 BLOCK,TERMINAL 23
EP21-001050 BLOCK,TERMINAL 26
EP21-001081 ACCESSORY,TERMINAL BLOCK-NS 1
EP21-001058 ACCESSORY,TERMINAL BLOCK-CLIP 2
EP21-001045 BLOCK,TERMINAL 7
EP21-001033 ACCESSORY,TERMINAL BLOCK 2
EP21-001077 BLOCK,TERMINAL 2
EP21-001076 BLOCK,TERMINAL 10
EP21-001075 BLOCK,TERMINAL 1
EP21-001073 BLOCK,TERMINAL 2
EP10-900438 FUSE[250V 5A] 2
EP21-001056 BLOCK,TERMINAL 3
EP10-900439 FUSE[250V 10A] 2
EP21-001074 BLOCK,TERMINAL 1
EP21-001072 BLOCK,TERMINAL 2
EP21-001071 BLOCK,TERMINAL 2
EP21-001055 ACCESSORY,TERMINAL BLOCK 2
EP21-001031 BLOCK,TERMINAL 14
EP07-002301 CONTACTOR 2
3 FC09-000066 BRACKET-HBLSS5 4
4 EP06-000316 SERVO CONTROL-DRIVE 2
5 EP06-000389 SERVO CONTROL-DRIVE 1
6 J90833316A FAN_CABLE_ASSY SM-FAN00 1
7 EP06-000492 SERVO CONTROL-DRIVE 2
8 FC09-000067 BRACKET-PNP_BKT 4
9 AM03-001814D ASSY,BOARD-SAFETY_FROP_REV_3.1 1
Page
+$1:+$
52
DECAN
S1
Base Frame (Rear)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
10 J7251007A BOARD COVER 1
11 FC15-003053A COVER-AXIS_BD_COVER;MIGRATION 1
12 FC09-002302A BRACKET-AXIS_BD_CABLE_BKT; 1
13 EP07-901528 FAN_FILTER 2
HP04-000075 FILTER,AIR-FAN FILTER METAL 2
14 J91741023A CONVEYOR PWR BOARD 1
15 EP07-901528 INLET FAN BKT 2
16 EP07-900027 MAIN CIRCUIT BREAKER 1
17 AM03-003542A CABLE ASSY-INLINE IN-OUT 1
AM03-010846A CABLE ASSY-INLINE NEXT PRE 1
18 EP21-900008 PANEL 1
19 J37041002A RELAY_HOLD_DOWN_CLIPS 22
20 AM03-011179A REAR ELEC PANEL 1
21 FC30-002551A GROUND TERMINAL 1 J7152027A
22 EP06-002643A SERVO CONTROL-DRIVE-2AXIS 1
EP06-002645A SERVO CONTROL-DRIVE-4AXIS 1
1
24 AM03-025224A ASSY,BOARD-AXIS_IO_BOARD(8 AXIS) 1
25 FC09-004628B BRACKET-AXIS_BD_BKT_NEW;EGI,2 1
26 FC09-009484A BRACKET-DRIVER_BKT_DS1;EGI,1.6 1
27 EP03-000184 DUCT,CABLE-60*40*868;PVC_DUCT,GRAY 1
28 EP03-000166 DUCT,CABLE-60X40X176;PVC_DUCT,GRAY 2
29 FC09-003447A LEFT DC BKT 1
30 HP09-000007 MANIFOLD 1
31 FC14-900641 PLUG 1
32 HP06-000226 FITTING 1
33 HP06-900282 STRAIGHT FITTING 5
34 FC14-900644 PLUG 3
35 EP03-000171 DUCT,CABLE-60*40*990;PVC_DUCT,GRAY 1
36 EP03-000168 DUCT,CABLE-60X60X898;PVC_DUCT,GRAY 1
37 J7251013A WIRING DUCT-6 1
