Page +$1:+$ 132 DE CA N S 1 Rear Feeder Board Interface (2/2) 1 REAR FEEDER I/F BOARD 60 60 1 60P ~ CN12P 1 ~ CN12S 1 1 60 60P ~ 60 ~ CN1 1P CN1 1S FEEDER #31~#60 RIGHT B/D REAR FEEDER BASE SM_FD007 FEEDER #1~#30 REAR FE…
Page
+$1:+$
131
DECAN
S1
Rear Feeder Board Interface (1/2)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010656A CABLE ASSY-RFDR_CVIF_CAN 1
2 AM03-027090A CABLE ASSY-FIX_ILL_RFD_CAN 1
3 AM03-025118A CABLE ASSY-AXIS1_RFD_CAN_EXT 1
4 AM03-010841C CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1
5 AM03-011245C CABLE ASSY-CV_RDF_PWR_EXT 1
6 J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1
7 J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1
Page
+$1:+$
132
DECAN
S1

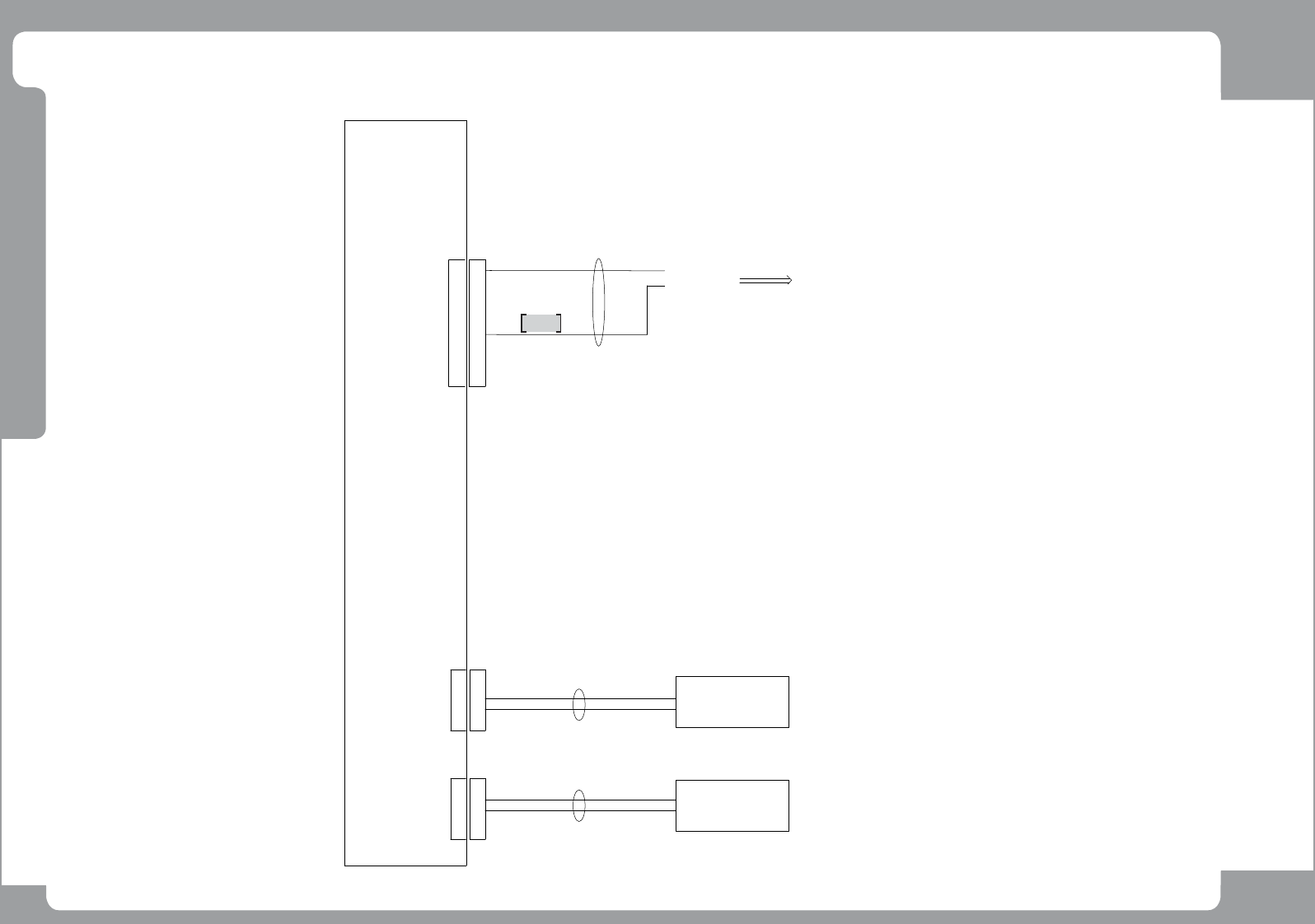

Rear Feeder Board Interface (2/2)
1
REAR FEEDER I/F
BOARD
60 60
1
60P
~
CN12P
1
~
CN12S
11
60
60P
~
60
~
CN11P
CN11S
FEEDER #31~#60
RIGHT B/D
REAR FEEDER BASE
SM_FD007
FEEDER #1~#30
REAR FEEDER BASE
LEFT B/D
SM_FD006
FEEDER INPUT(#1~#30)
FEEDER INPUT(#31~#60)
4
5
6
4
5
6
8P
CN13P
3
3
CN13S
1
2
1
2
8
7
8
7
SM511C_FD003
TB2-2B
RY1-4
REFER TO POWER BLOCK DIAGRAM
AM03-014722B
Page
+$1:+$
133
DECAN
S1
Rear Feeder Board Interface (2/2)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-014722B CABLE ASSY-R FDR PWR RELAY 1
