Page +$1:+$ 137 DE CA N S 1 Co n v ey or S en s or B oa rd ( 2 /4 ) NO. P ART NO. P ART NAME Q'TY Old No. S u pply S upply L T Reference 1 AM 03-01 9720A CAB L E ASSY -WOR K_CO N V_ PCB S ENSO R _D ECAN 1 2 AM 03-01…
Page
+$1:+$
136
DECAN
S1
Conveyor Sensor Board (2/4)
Page
+$1:+$
137
DECAN
S1

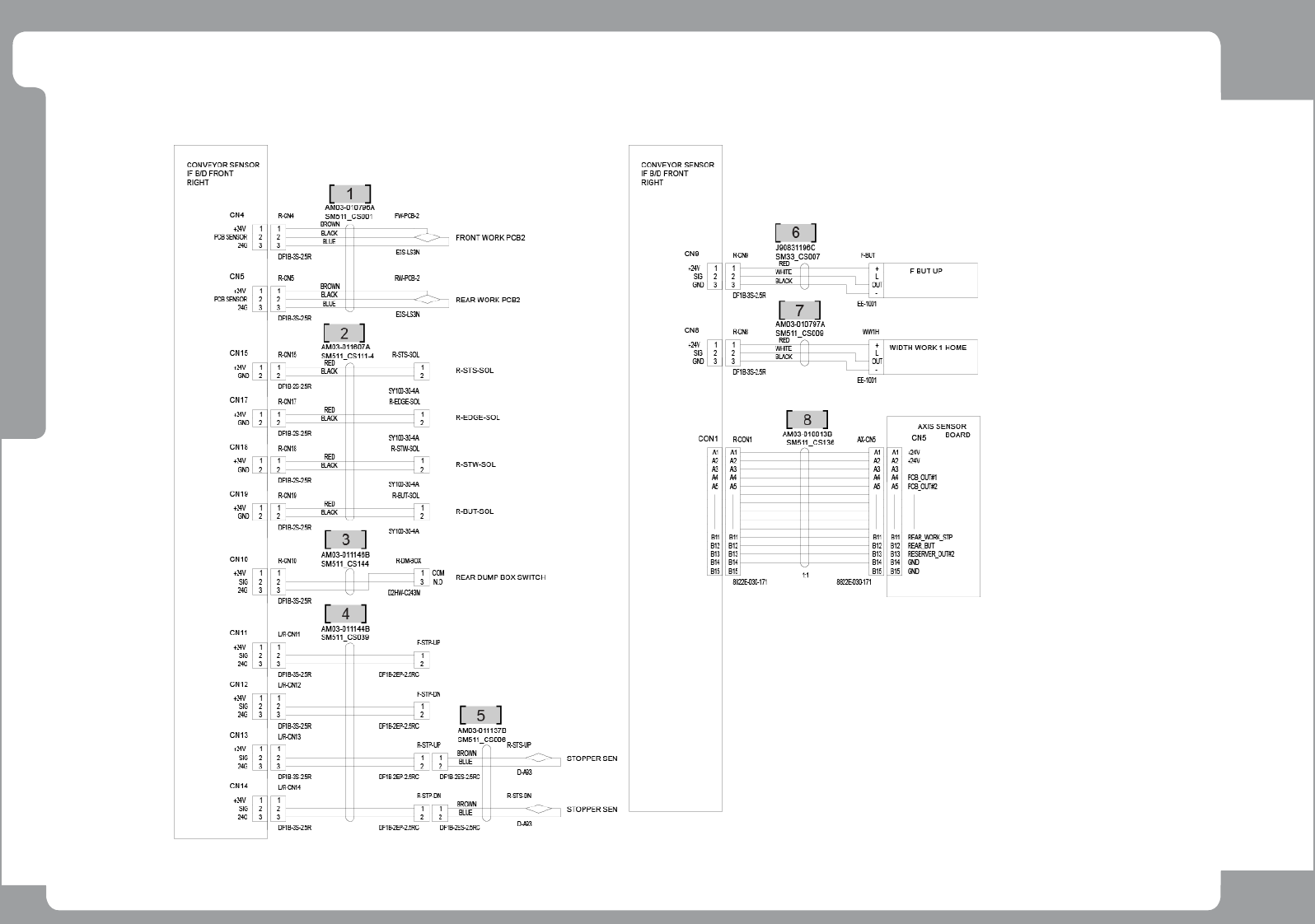

Conveyor Sensor Board (2/4)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-019720A CABLE ASSY-WORK_CONV_PCB SENSOR_DECAN 1
2 AM03-011607A CABLE ASSY-CONVEYOR_SOL 1
3 AM03-011146B CABLE ASSY-R_DUMP_BOX_SWITCH 1
4 AM03-011144B CABLE ASSY-STOPPER_SENSOR_EXT 1
5 AM03-019719A CABLE ASSY-STOPPER_WORK_SENSOR_DECAN 1
6 J90831196C BUT_SENSOR_CABLE_ASSY 1
7 AM03-010797A CABLE ASSY-WIDTH_WORK_1_2_HOME_SEN 1
8 AM03-010813B CABLE ASSY-CONV_RIGHT_IF_BD 1
Page
+$1:+$
138
DECAN
S1
Conveyor Sensor Board (3/4)
