Page +$1:+$ 21 DE CA N S 1 St ag e C AM A ss ’y NO. P ART NO. P ART NAME Q'TY Old No. S u pply S upply L T Reference 1 AM 03-02 7380A ASS Y ,OP TIC S-ST AGE _FOV4 5_2M _CAME RA 1 2 FC 05-00 0502A BAS E-CA ME R A_ SU…
Page
+$1:+$
20
DECAN
S1
Stage CAM Ass’y
1
2
5
6
3
4
Page
+$1:+$
21
DECAN
S1
Stage CAM Ass’y
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-027380A ASSY,OPTICS-STAGE_FOV45_2M_CAMERA 1
2 FC05-000502A BASE-CAMERA_SUPPORT 1
3 AM03-027512A CABLE ASSY-D-R_DUMP_BOX_SWITCH_1 1
4 FC09-009581A BRACKET-BRACKET-DUMP_BKT 1
5 FC09-009497A BRACKET-DUMP_BOX 1
6 J73531004A L_DUMP_BOX_ABSORBER 1
Page
+$1:+$
22
DECAN
S1

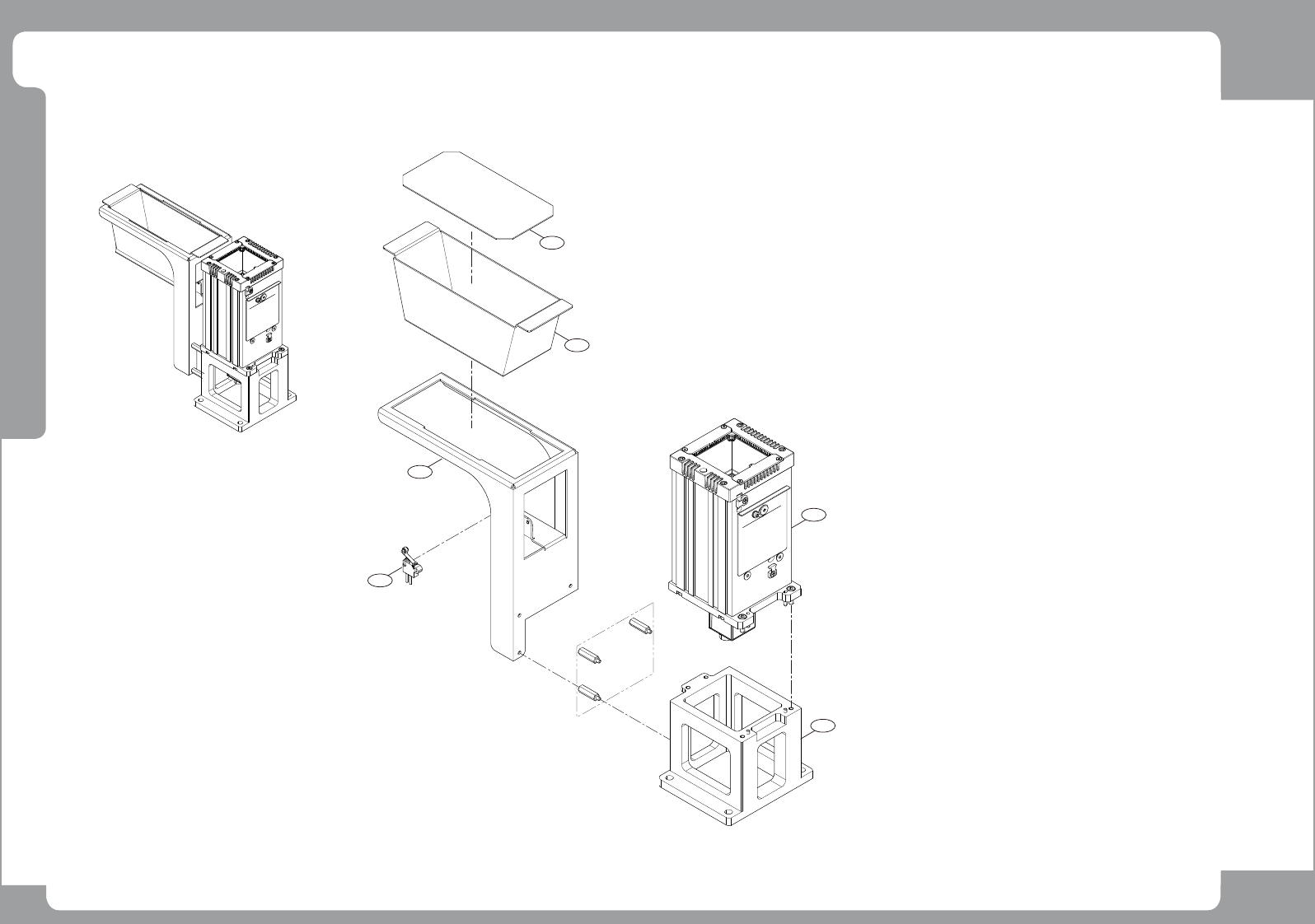

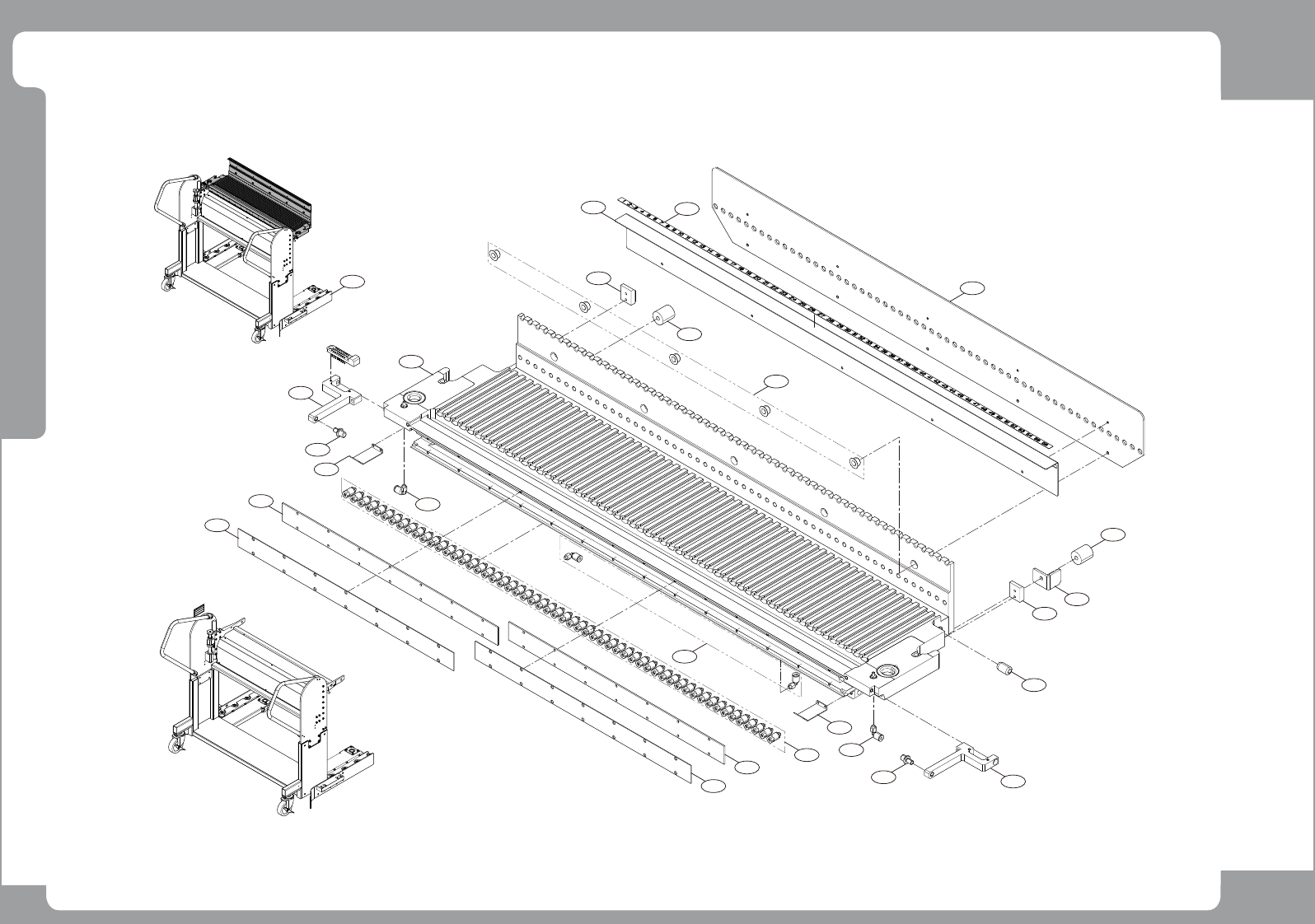

Docking Cart (1/6) - Option
3
4
6
5
1
2
7
4
8
12
15
16
17
9
5
11
10
11
13
18
9
14
A
11
10
12
