DECAN_S1_TRM(Ver1.2_CS19.11) - 第56页
Page +$1:+$ 54 DE CA N S 1 Head (1/6) 11 12 13 19 20 21 1 9 2 3 4 5 6 7 8 10 15 18 16 14 17

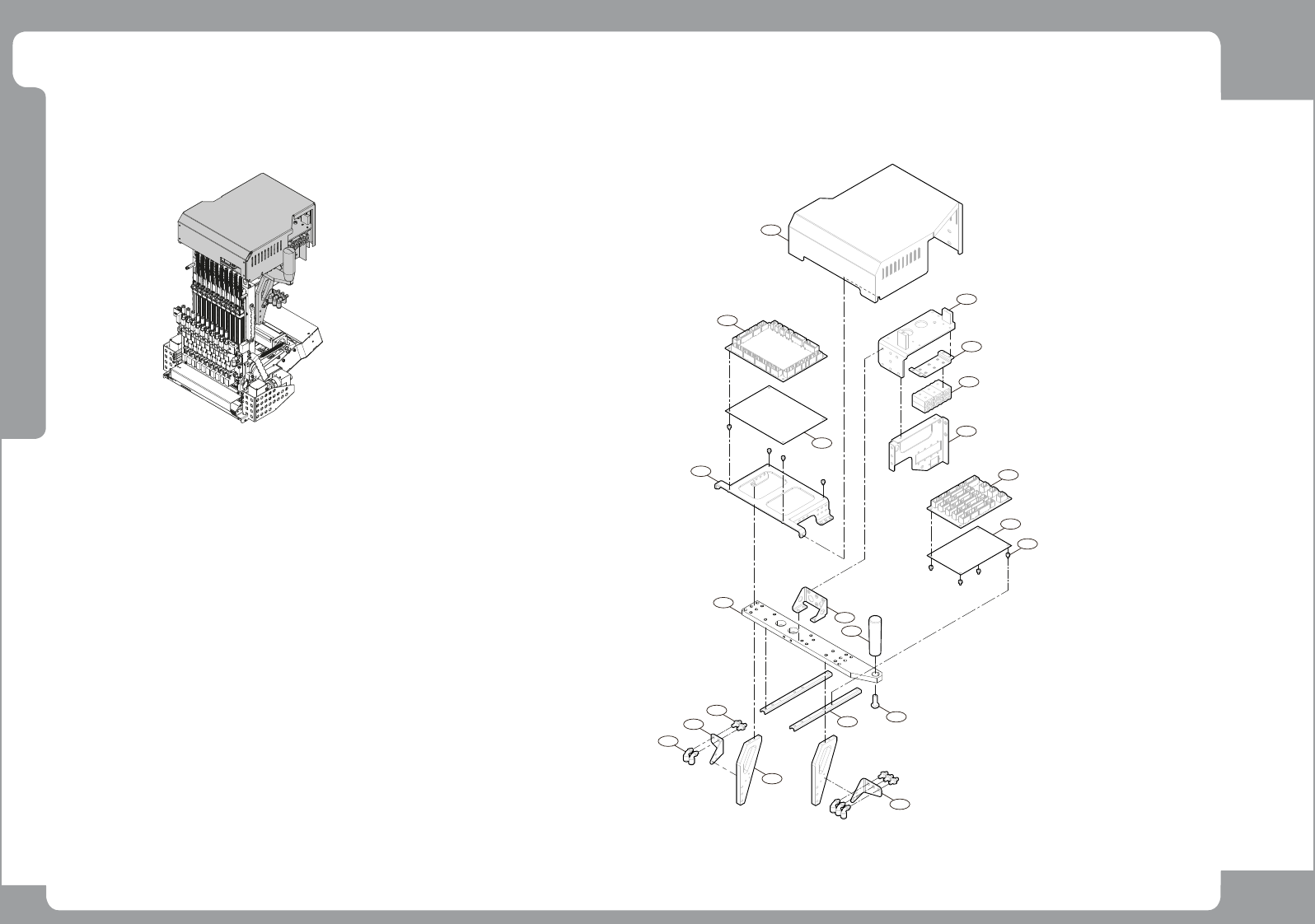

Page
+$1:+$
53
DECAN
S1
Base Frame (Rear)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
38 J7251008A WIRING DUCT-1 1
39 FC30-002552A PLATE-GROUND_BASE_2 1
40 FC09-003482A BOTTOM RL 1
41 FC09-003481A BOTTOM RR 1
42 FC09-001718A RELAY_SOCKET_BKT 1
43 RM01-000080 RAIL-DIN RAIL 35MM;DIN RAIL 3
44 EP18-900034 RELAY 6
45 EP18-900016 RELAY 1
46 FC09-004627C BRACKET-ELEC_PANEL_BKT1_NEW_C;EGI,2 1
47 FC09-004797C BRACKET-ELEC_PANEL_BKT2_C;EGI 1
48 J72521004A ELEC_ACRYL 1
49 EP18-000036 RELAY 4
50 J91741277A HEAD_IF_ASSY REV 1.0 1
51 FC29-900611 HEX SUPPORT 4
52 FC09-006124A BKT FIX ILL BD 1
53 HP13-900084 AIR TUBE (POLYURETHANE) 2
54 HP13-900085 AIR TUBE (POLYURETHANE) 1 FC09-003946A/ FC09-003946B
55 HP13-900083 AIR TUBE (POLYURETHANE) 2
56 HP13-900082 AIR TUBE (POLYURETHANE) 4
57 AM03-000198 ASSY,AIR-SOL_VALVE_EDGE_FIX 1
58 J7051098A DRIVER BRACKET-5 1
59 AM03-007204A CABLE ASSY-Y2_REGEN_RESISTOR 1
60 AM03-021389A CABLE ASSY-X REGEN RESISTOR 1
61 AM03-007203A CABLE ASSY-Y1_REGEN_RESISTOR 1
62 EP21-001081 ACCESSORY,TERMINAL BLOCK 1
63 J70511029A DRIVER_BRACKET-6 1
Page
+$1:+$
54
DECAN
S1
Head (1/6)
11
12
13
19
20
21
1
9
2
3
4
5
6
7
8
10
15
18
16
14
17
Page
+$1:+$
55
DECAN
S1
Head (1/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-005199B COVER-HEAD TOP COVER;STD 1
2 FC09-001568A FLAT_CABLE_BKT 1
3 FC09-001847A FITTING_BKT 1
4 J1301070 STRAIGHT_CONNETOR_FITTING 6
5 FC09-003535B HEAD_BKT_PANEL 1 FC09-001573A/ FC09-003535A
6 AM03-005341B MOTOR_IF_BOARD 1 AM03-005341A
7 FC36-000187A MOTOR_IF_BOARD_SHEET 1 FC30-000991A
8 FC29-900610 HEX SUPPORT 8
9 AM03-005337A HEAD IF BOARD 1
10 FC36-000186A IF_BOARD_SHEET 1 FC30-000990A
11 FC09-001574A HEAD_BOARD_BRACKET 1
12 FC29-900148 HANDLE 1
13 FC09-007734B BRACKET-HARNESS_PLATE_B 1
14 FC18-902795 BUTTON_HEAD_CAP_SCREW 1
15 FC09-001690A HEAD_BKT_FIX 1
16 FC09-001576A MOTOR_IF_BOARD_BKT 2
17 J70541016A 3-NIPPLE_BRACKET 1
18 J71541016B HARNESS_SUPPORT 2
19 FC28-900369 GREASE NIPPLE 5
20 FC09-009679A BRACKET-2-NIPPLE 1
21 HP06-900079 ELBOW_UNION_FEMALE 5
