DECAN_S1_TRM(Ver1.2_CS19.11) - 第84页
Page +$1:+$ 82 DE CA N S 1 Cover (1/2) 15 4 16 6 7 8 9 21 10 17 18 19 14 20 13 B C 12 2 1 3 A 5 SM321 1 2 3 1234 910 11 12 5678
Page
+$1:+$
81
DECAN
S1
ANC
NO. PART NO. PART NAME Q'TY Old No. Reference
1 J7156087A SHUTTER BRACKET 1
2 HP03-900032 AIR CYLINDER 1
3 J7156043B SHUTTER BRACKET 1
4 HP14-900085 SPEED CONTROLLER 2
5 AM03-001543A ANC_SENSOR_CABLE_ASSY 1
6 FC09-004601A CYLINDER_BRACKET 1 J70561001A
7 HP06-900027 FITTING 1
8 HP14-900088 SPEED CONTROLLER 1
9 HP06-900255 STRAIGHT FITTING 1
10 HP03-900054 AIR_CYLINDER 1
11 J71561001B ANC_PLATE 1 ST FRONT, ST REAR, DUAL FRONT
FC30-002002A PLATE-ANC_DECAN 1 DUAL REAR, SINGLE FRONT
12 J71561002B ANC_NOZZLE_SHUTTER 1 ST FRONT, ST REAR, DUAL FRONT
FC14-000729A NOZZLE-SHUTTER_ANC_DECAN 1 DUAL REAR, SINGLE FRONT
J71561036A NOZZLE_SHUTTER_SMALL_PIN 1 SINGLE REAR
13 J71561003B ANC_MAIN_BODY 1 ST FRONT, ST REAR, DUAL FRONT
FC39-001625A BODY-ANC_DECAN 1 DUAL REAR, SINGLE FRONT
J71561034A MAIN_BODY_SMALL_PIN 1 SINGLE REAR
Page
+$1:+$
82
DECAN
S1
Cover (1/2)
15
4
16
6
7
8
9
21
10
17
18
19
14
20
13
B
C
12
2
1
3
A
5
SM321
1
2
3
1234
9101112
5678
Page
+$1:+$
83
DECAN
S1
Cover (1/2)

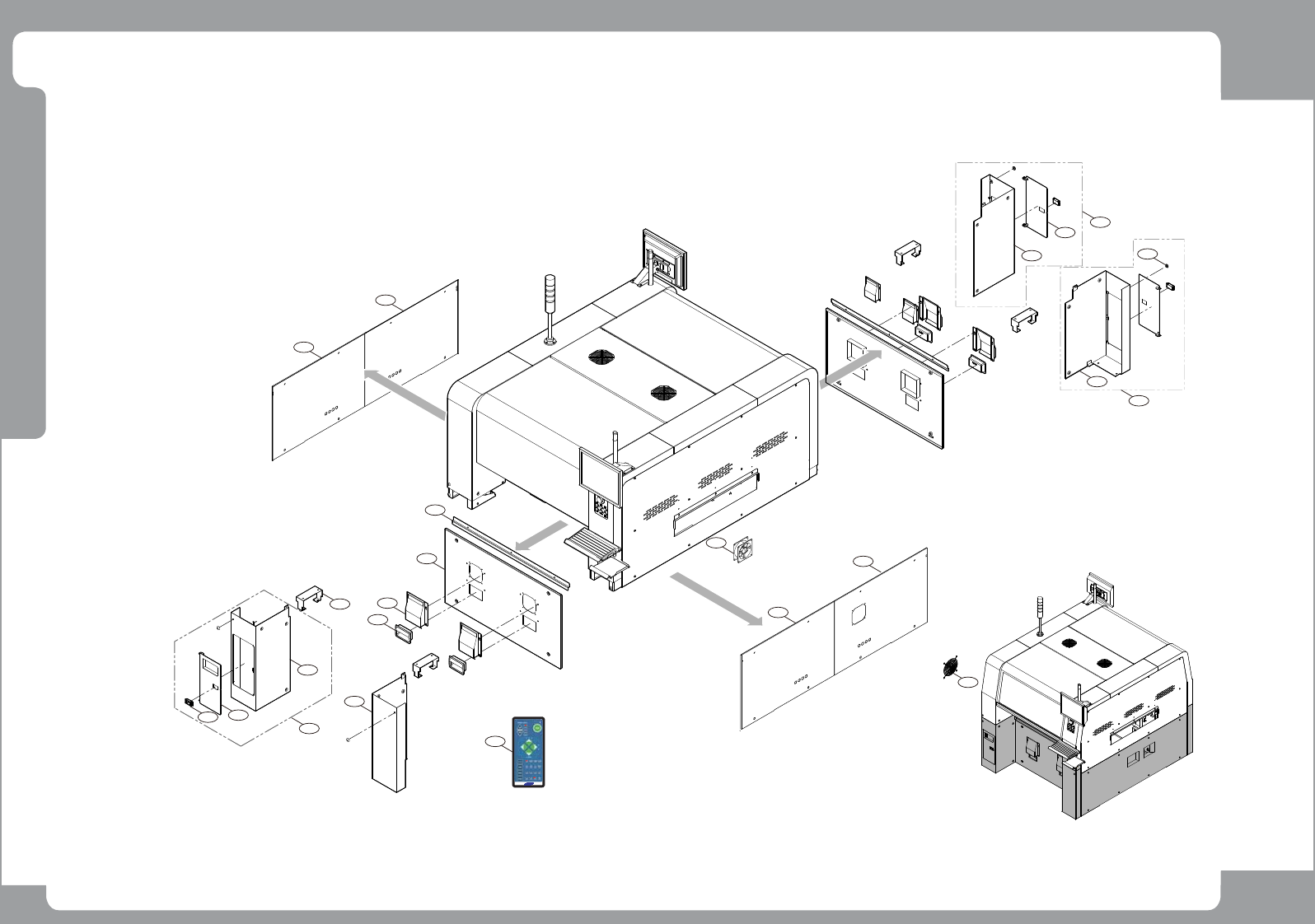

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-011036A ASSY,COVER-LOWER FL 1
1 FC29-900217 SLIDE_LATCH 3
2 FC15-002083A DOOR FRONT 1
3 FC15-002082A LOWER FL 1
4 FC15-006424A COVER-LOWER_FR 1
5 FC15-001147A FB SIDE COVER 4
6 FC29-900144 DRAWER_PULL_HD 4
7 FC15-002184B INLET FAN COVER 4
8 FC15-002183B LFM COVER 2
9 J70521088B FB COVER 2
10 FC15-004384B COVER-SIDE LOWER L S 1
11 FC15-002061A SIDE LOWER R 1
B AM03-018772A ASSY,COVER-LOWER RR 1
12 FC15-002079B LOWER RR 1 FC15-002079A
13 FC15-002080A DOOR REAR 2
C AM03-018773A ASSY,COVER-LOWER RL 1
14 FC15-002081B LOWER RL 1 FC15-002081A
15 FC29-900019 SET_CAP 4
16 AM03-022731A ASSY,CONTROLLER-TEACHING BOX ASSY 2
17 FC15-004434B COVER-SIDE LOWER L2 S;STANDARD 1
18 FC15-004383B COVER-SIDE LOWER R S;STANDARD 1
19 FC15-004435B COVER-SIDE LOWER R2 S;STANDARD 1
20 FC28-001115 FINGER,GUARD 1
21 J90833316A FAN_CABLE_ASSY SM-FAN00 1
