DECAN_S1_TRM(Ver1.2_CS19.11) - 第86页
Page +$1:+$ 84 DE CA N S 1 Cover (2/2) 51 77 52 33 38 48 50 35 10 22 23 60 21 28 56 8 9 15 14 13 12 63 20 4 64 B 3 2 47 52 75 76 32 44 34 40 39 19 45 46 42 43 41 36 58 59 54 53 37 26 25 31 7 17 27 24 29 30 55 16 49 6 18 …
Page
+$1:+$
83
DECAN
S1
Cover (1/2)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-011036A ASSY,COVER-LOWER FL 1
1 FC29-900217 SLIDE_LATCH 3
2 FC15-002083A DOOR FRONT 1
3 FC15-002082A LOWER FL 1
4 FC15-006424A COVER-LOWER_FR 1
5 FC15-001147A FB SIDE COVER 4
6 FC29-900144 DRAWER_PULL_HD 4
7 FC15-002184B INLET FAN COVER 4
8 FC15-002183B LFM COVER 2
9 J70521088B FB COVER 2
10 FC15-004384B COVER-SIDE LOWER L S 1
11 FC15-002061A SIDE LOWER R 1
B AM03-018772A ASSY,COVER-LOWER RR 1
12 FC15-002079B LOWER RR 1 FC15-002079A
13 FC15-002080A DOOR REAR 2
C AM03-018773A ASSY,COVER-LOWER RL 1
14 FC15-002081B LOWER RL 1 FC15-002081A
15 FC29-900019 SET_CAP 4
16 AM03-022731A ASSY,CONTROLLER-TEACHING BOX ASSY 2
17 FC15-004434B COVER-SIDE LOWER L2 S;STANDARD 1
18 FC15-004383B COVER-SIDE LOWER R S;STANDARD 1
19 FC15-004435B COVER-SIDE LOWER R2 S;STANDARD 1
20 FC28-001115 FINGER,GUARD 1
21 J90833316A FAN_CABLE_ASSY SM-FAN00 1
Page
+$1:+$
84
DECAN
S1

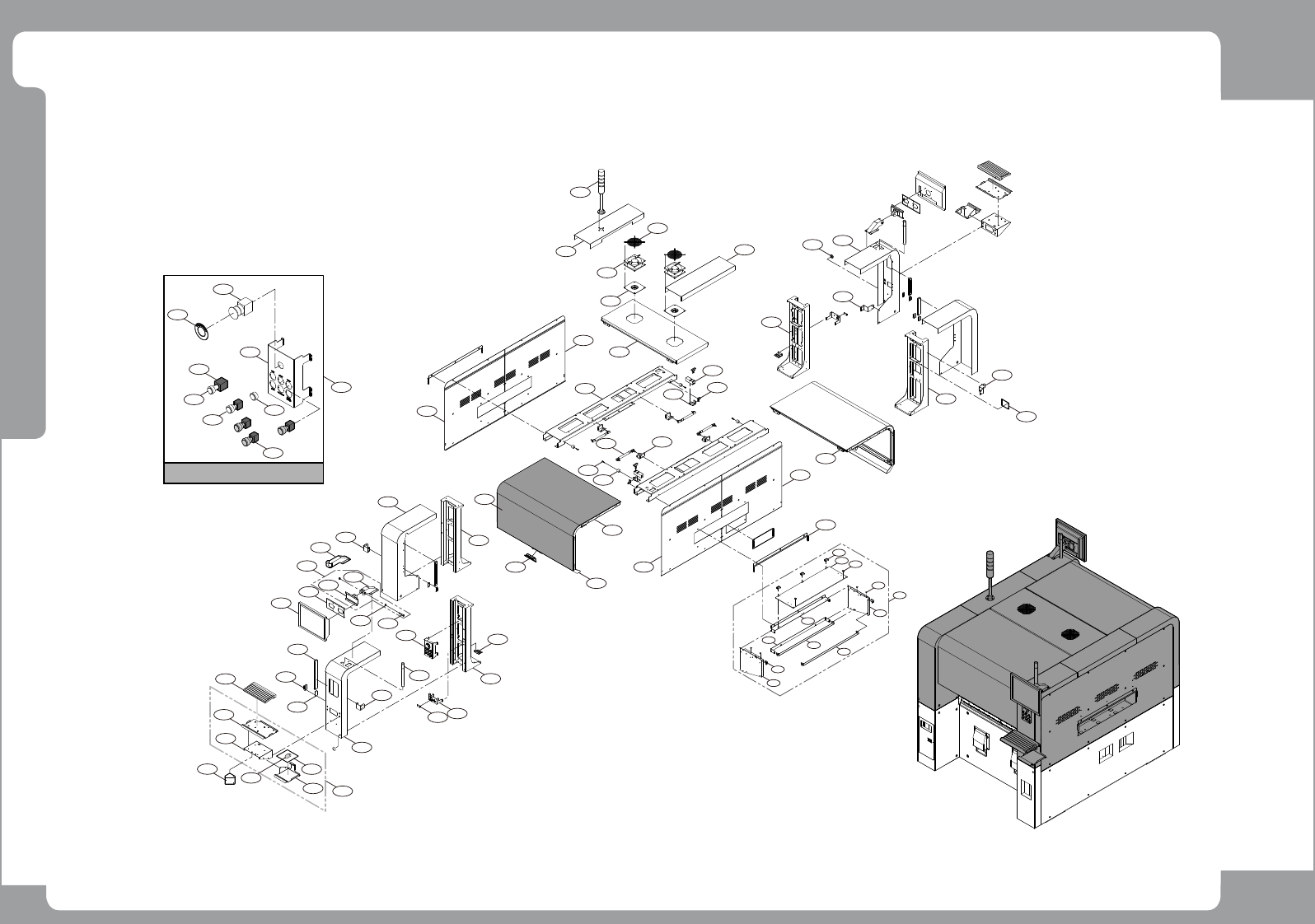

Cover (2/2)
51
77
52
33
38
48
50
35
10
22
23
60
21
28
56
8
9
15
14
13
12
63
20
4
64
B
3
2
47
52
75
76
32
44
34
40
39
19
45
46
42
43
41
36
58
59
54
53
37
26
25
31
7
17
27
24
29
30
55
16
49
6
18
20
5
11
1
61
A
OP PANEL
62
72
73
71
32
74
70
69
65
68
66
67
71
10
Page
+$1:+$
85
DECAN
S1
Cover (2/2)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-018674B ASSY,COVER-KEYBOARD BKT DS 2 AM03-018674A(~#261)
4 CD04-900026 KEYBOARD 2
5 FC15-006516A COVER-UPPER_COVER_FR 1
6 J91741076A CONV_SUB_IF_BOARD VER 1.0 1
8 FC12-900009 MAGNETIC 4
9 J90831139A FRONT AREA SENSOR CABLE ASSY SM33-CV016 1
J90831759A REAR AREA SENSOR CABLE ASSY SM421-CV018 1
10 FC09-003935B COVER INNER BKT F 2 FC09-003935A
11 EP02-001746A HARNESSBLUE TOWER LAMP CABLE ASSY 2
B AM03-011039A ASSY,COVER-LCD BKT 1
12 FC15-002089C LCD BASE 2
13 FC15-002090B LCD HINGE 2 FC15-002090A
14 FC15-000505B LCD_GUIDE_PL 2
15 CD06-000004 MONITOR 2
16 J7070353A BARCODE_COVER 2
17 FC09-003392B BRACKET-LOWER OP PANEL 2 FC09-003392A
18 FC39-001575B COVER FRAME FR N 1 FC39-001575A
19 FC09-009521A BRACKET-OP_CONNECT_BKT 1
20 AM03-027418A CABLE ASSY-OP_PANEL 1
21 EP20-001055 SWITCH,PUSH-EMERGENCY S/W 1
22 PT03-900161A STICKER-EMERGENCY 1
23 FC09-003393A BRACKET-OP PANEL 2
24 EP20-001012 SWITCH,PUSH-START 2 EP20-000113
25 EP20-001057 SWITCH,PUSH-STOP 1
26 EP20-001136 SWITCH,PUSH 2 EP20-000127
27 EP20-001016 SWITCH,PUSH 2 EP20-000114
28 FC15-002287B UPPER L N 2 FC15-002287A
29 FC39-001576B COVER FRAME FL N 1 FC39-001576A
