SIPLACE 1 Assembly instructions Special design Stopper for placement area 1 (00166322-01) SIPLACE HF-series 06/2007 Edition 11 : Fit the stopper module with two screws and sh im s to the adapter . The stopper module can …

100%1 / 30
1 Assembly instructions Special design Stopper for placement area 1 (00166322-01) SIPLACE HF-series SIPLACE
06/2007 Edition
10

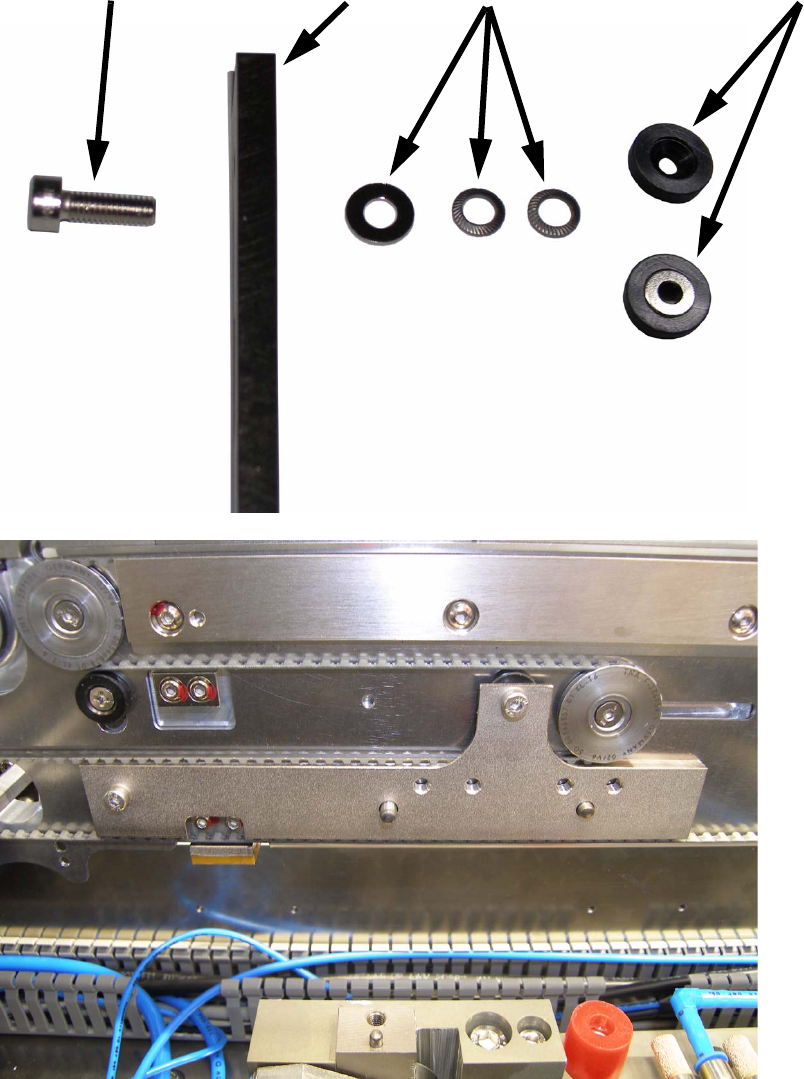

: To mount the adapter to the conveyor, use the delivered screws, shims and the removed spa-
cers like shown on the pictures below. Assemble the parts in the same order like on the picture
below, the spacer has to be fitted the same way it was originally.
If you don’t use the shims, the clamping system won’t work properly!
1
Screw
Adapter
Shims
Spacer
SIPLACE 1 Assembly instructions Special design Stopper for placement area 1 (00166322-01) SIPLACE HF-series
06/2007 Edition
11

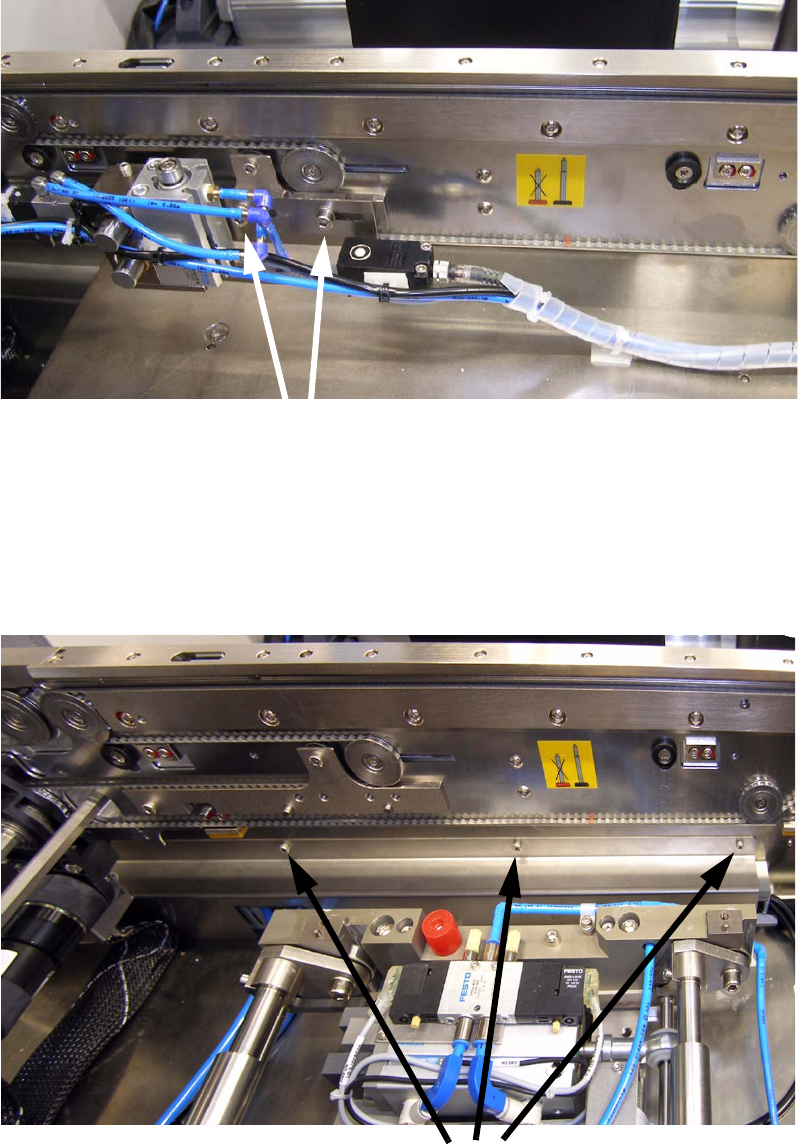

: Fit the stopper module with two screws and shims to the adapter. The stopper module can be
engaged in two positions.
1
1
1.7.2 Running and connecting thew cables and air hoses
1
Two screws
Three screws
1 Assembly instructions Special design Stopper for placement area 1 (00166322-01) SIPLACE HF-series SIPLACE
06/2007 Edition
12

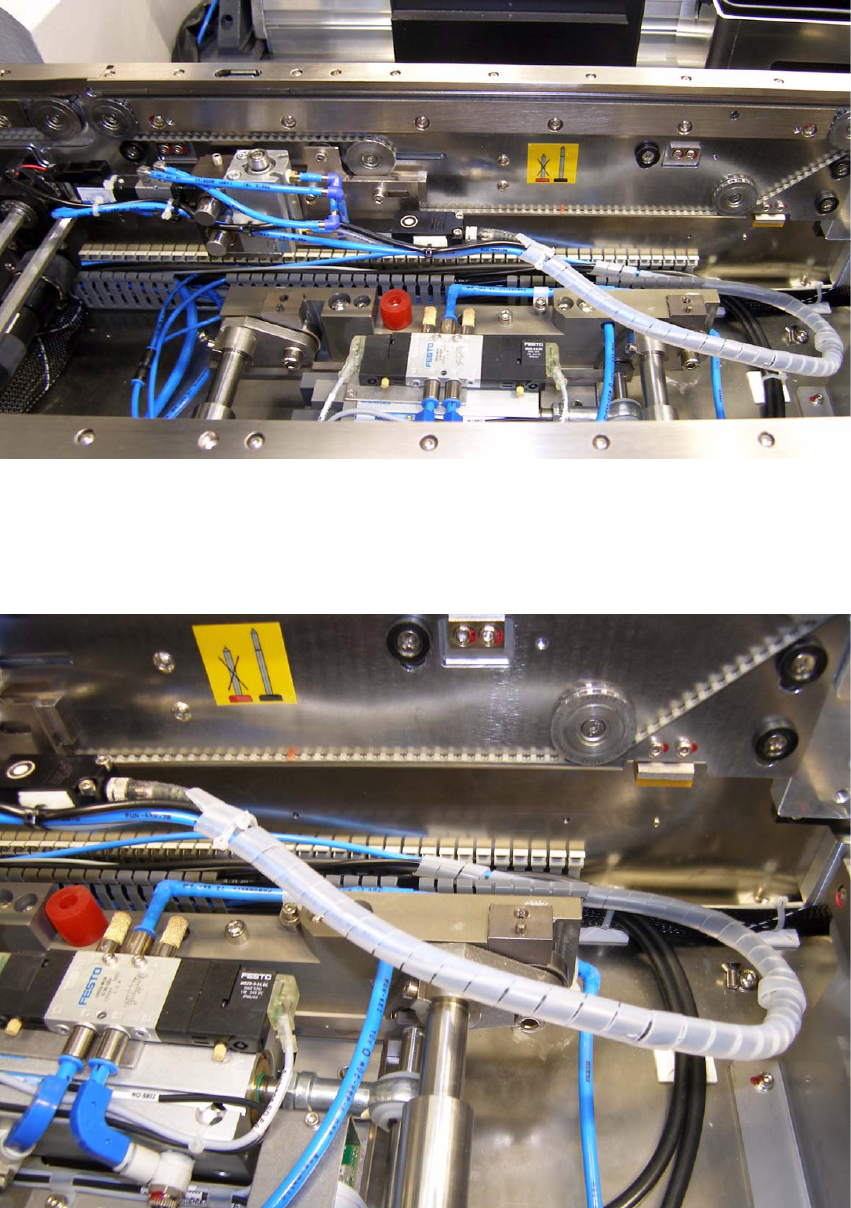

: Run the cables and the hose like shown on the picture below.
1
1
: Twist the provided cable cover around the cables and hose from the end of the module until
the cables are about 10 cm in the cable trench.
1
