1 Assembly instructions Special design Stopper for pl acement are a 1 (00166322-01) SIPLACE HF-series SIPLACE 06/2007 Edition 24 : Repeat the settings for conveyor 2 and click “Accept”. 1 : When you are asked, if you are…
SIPLACE 1 Assembly instructions Special design Stopper for placement area 1 (00166322-01) SIPLACE HF-series
06/2007 Edition
23

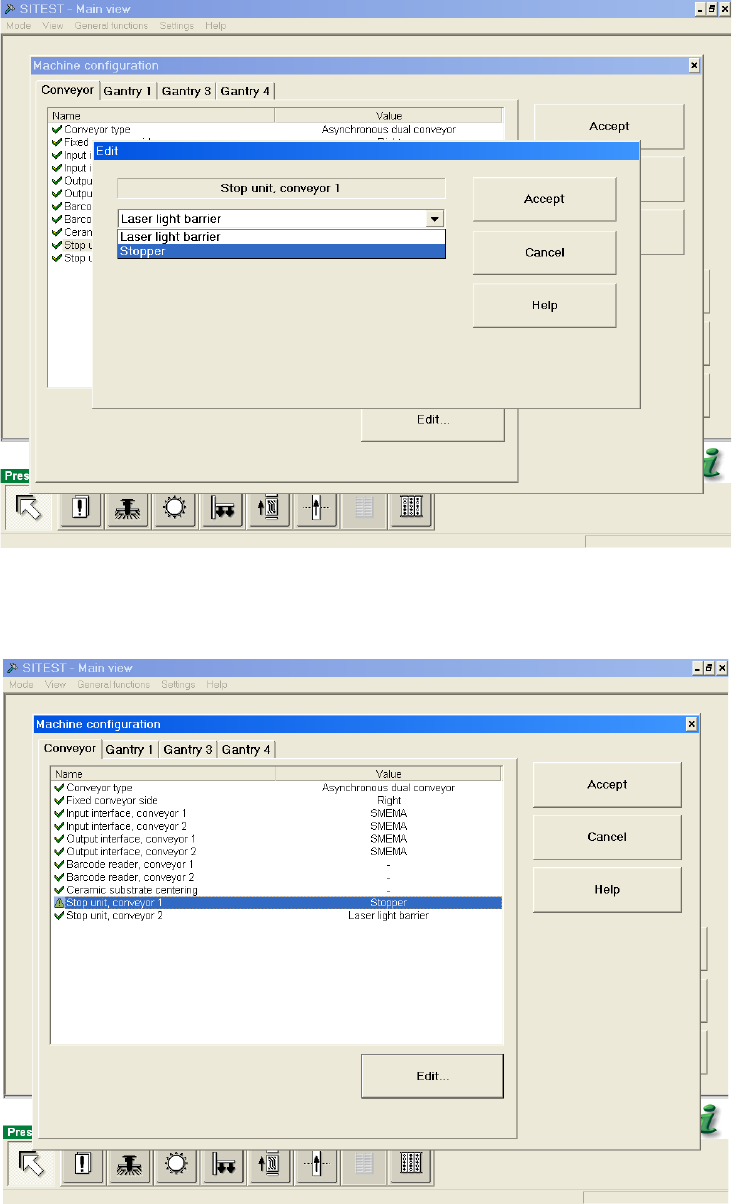

: Choose “Stopper” and click “Accept”.
1
: The Value of the conveyor 1 is now “Stopper”.
1
1 Assembly instructions Special design Stopper for placement area 1 (00166322-01) SIPLACE HF-series SIPLACE
06/2007 Edition
24
: Repeat the settings for conveyor 2 and click “Accept”.
1
: When you are asked, if you are sure that you want to accept this change, choose “Yes”.
1
: Shut down the machine and switch of the main switch.
SIPLACE 1 Assembly instructions Special design Stopper for placement area 1 (00166322-01) SIPLACE HF-series
06/2007 Edition
25
1.11 Calibrating the PCB reference corner
: Switch to SITEST and recalibrate the PCB reference corner for PA1.
Whenever the stopper position is changed, the PCB reference corner will have to be recalibrated
in SITEST. 1
1.12 Description in SIPLACE Pro
: Set the flag "Long board" in the view "Line".
1
1
1
1
1
