Service Work 3.6.8 Replacing the Proximity Switch for the Adjustment Unit [0 0304908-xx] Conveyor Service Manual SIPLACE SX4/DX4 109 3.6.8 3 . 6 . 8 R e p la c in g t h e P r o x im it y S w it c h f o r t h e A d ju s t…
Service Work
Conveyor 3.6.7 Replacing the Short-Stroke Cylinder on the Adjustment Unit [00356862-xx]
108 Service Manual SIPLACE SX4/DX4
3.6.7
3.6.7 Replacing the Short-Stroke Cylinder on the Adjustment Unit [00356862-xx] (DC/QC only)
Replacing the Short-Stroke Cylinder on the Adjustment Unit [00356862-xx] (DC/QC
only)
Parts, equipment and tools
▪ Short-stroke cylinder ADVU-16-20-P-A-SA [00356862-xx]
Overview
Removal
► Loosen the conveyor side clamps. (see "3.6.1 Loosening the Conveyor Side Clamps" [ ➙ 95]).
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 12].
► Remove the cylinder unit from the machine. (See "3.6.6 Replacing the Cylinder Unit on the Adjust-
ment Unit (DC/QC only)" [ ➙ 106])
► Remove the cylinder switch from the short-stroke cylinder. Mark their positions, to make clear as-
signment easier later on.
► Unplug the two pneumatic connections to the short-stroke cylinder. Mark their positions, to make
clear assignment easier later on.
► Loosen the screws fastening the short-stroke cylinder and remove it from the cylinder unit.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:

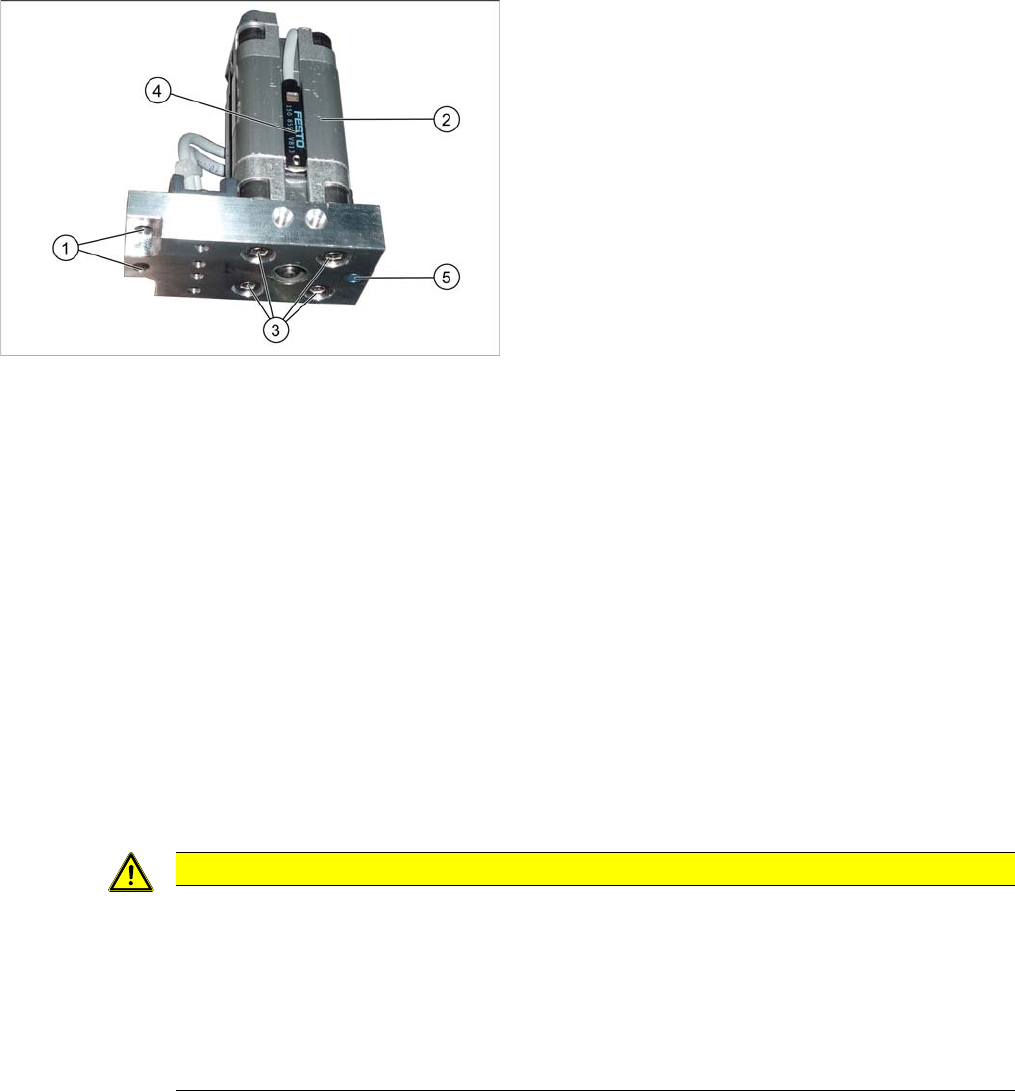

1. Holes for the carriage fastening screws
2. Pneumatic cylinder
3. Screws fastening the cylinder unit
4. Cylinder switch on the adjustment unit [03077361-xx]
5. Proximity switch [00304908-xx]
CAUTION
Installation instructions
► Fit the cylinder switch which you removed from the old short-stroke cylinder into the new
one. Use the same cylinder switch position as was used in the old short-stroke cylinder.
► Make sure that the cylinder unit is flush against the carriage. (See also "3.6.6 Replacing the
Cylinder Unit on the Adjustment Unit (DC/QC only)" [ ➙ 106])
► Make sure that you connect the hoses correctly. (See also "3.6.6 Replacing the Cylinder
Unit on the Adjustment Unit (DC/QC only)" [ ➙ 106])
Service Work
3.6.8 Replacing the Proximity Switch for the Adjustment Unit [00304908-xx] Conveyor
Service Manual SIPLACE SX4/DX4 109
3.6.8
3.6.8 Replacing the Proximity Switch for the Adjustment Unit [00304908-xx]
Replacing the Proximity Switch for the Adjustment Unit [00304908-xx]
Parts, equipment and tools
▪ Proximity switch 3RG4/4.0 mm/sn=0.8 mm/1S [00304908-xx]
Overview
Removal
► Use the software to move the conveyor sides into the position which allows you best access.
► Loosen the conveyor side clamps. (see "3.6.1 Loosening the Conveyor Side Clamps" [ ➙ 95]).
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 12].
► Loosen the screws fastening the lifting table plate and remove the lifting table plate.
► Dismantle the cover plate on the lower end of the trailing cable, to gain access to the cable.
► Loosen the screws fastening the cylinder unit to the carriage and then remove the carriage. The cyl-
inder unit is pinned and can be stiff to move.
► Loosen the fastening screw and pull the proximity switch out of the cylinder unit.
► Open the trailing cable and unthread the electrical connection to the proximity switch. Open the cor-
responding cable ties to help you, if needed.
► Unplug the proximity switch and remove it from the machine.

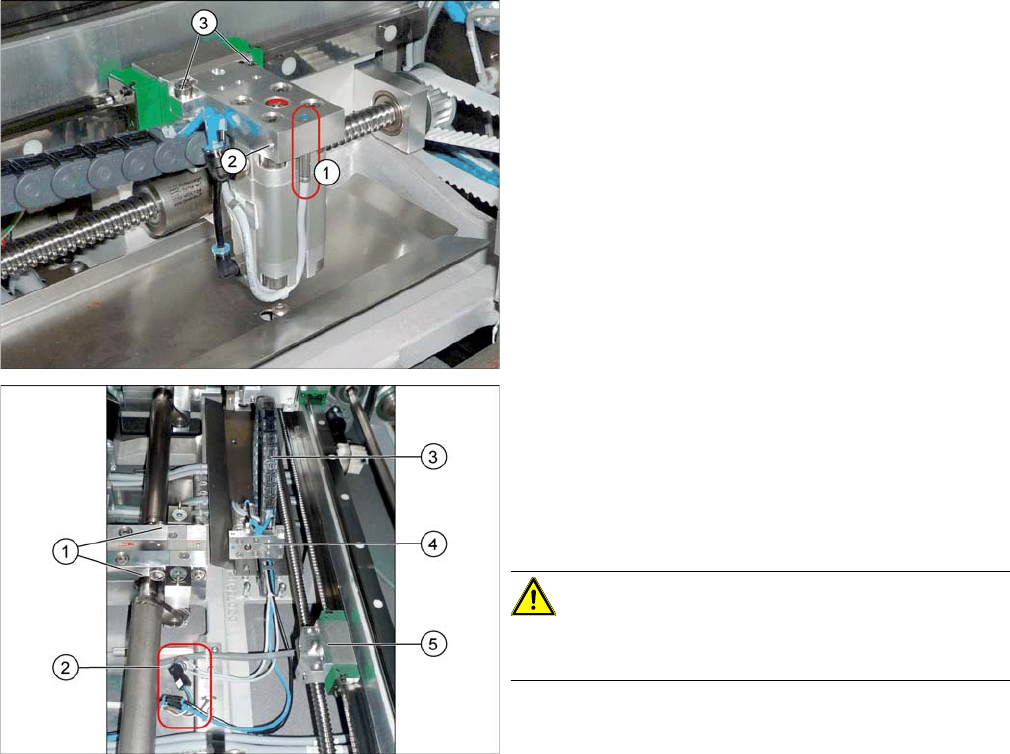

1. Proximity switch on the adjustment unit
2. Screw fastening the proximity switch
3. Screw fastening the cylinder unit to the carriage
1. Lifting tables
2. Electrical and pneumatic connections for the cylinder
unit and the proximity switch
3. Trailing cable for the cylinder unit
4. Cylinder unit
5. Carriage
CAUTION!
Never dismantle the carriage with the receptacle for the
adjustment unit!
Service Work
Conveyor 3.6.9 Replacing the Conveyor Drive [03075892-xx]
110 Service Manual SIPLACE SX4/DX4
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:
3.6.9
3.6.9 Replacing the Conveyor Drive [03075892-xx]
Replacing the Conveyor Drive [03075892-xx]
Parts, equipment and tools
▪ Conveyor drive [03075892-xx]
▪ Belt tension device (00326015-xx)
Overview
Removal
► Use the software to move the conveyor sides into the position which allows you best access. As an
alternative, you can loosen the clamps for the relevant sides in dual conveyors.
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 12].
CAUTION
Installation instructions
► Make sure that the cylinder unit is flush against the carriage. (See also "3.6.6 Replacing the
Cylinder Unit on the Adjustment Unit (DC/QC only)" [ ➙ 106])
► Make sure that you connect the hoses correctly. (See also "3.6.6 Replacing the Cylinder
Unit on the Adjustment Unit (DC/QC only)" [ ➙ 106])
► Make sure that the cables and hoses do not rub against any parts.
► Turn the proximity switch so that the LED is visible when fitted.
► Make sure that the proximity switch does not protrude over the basic structure of the adjust-
ment unit. Check this when the machine is switched on. To do this, move a conveyor side
over the adjustment unit. The LED should only shine when you do this. The gap between
the conveyor side clamping unit and the proximity switch on the adjustment unit must be at
least 0.3 mm.
Check whether this gap is kept for all conveyor sides and that the proximity switch reliably
recognizes all conveyor sides. You can check this with the LED, when the machine is
switched on. Simply move the width adjustment manually along the conveyor with the help
of the toothed belt.
CAUTION
Parallelism
This may affect the parallelism of the width adjustment unit. Bear in mind that this could then
affect the parallelism of the conveyor sides.

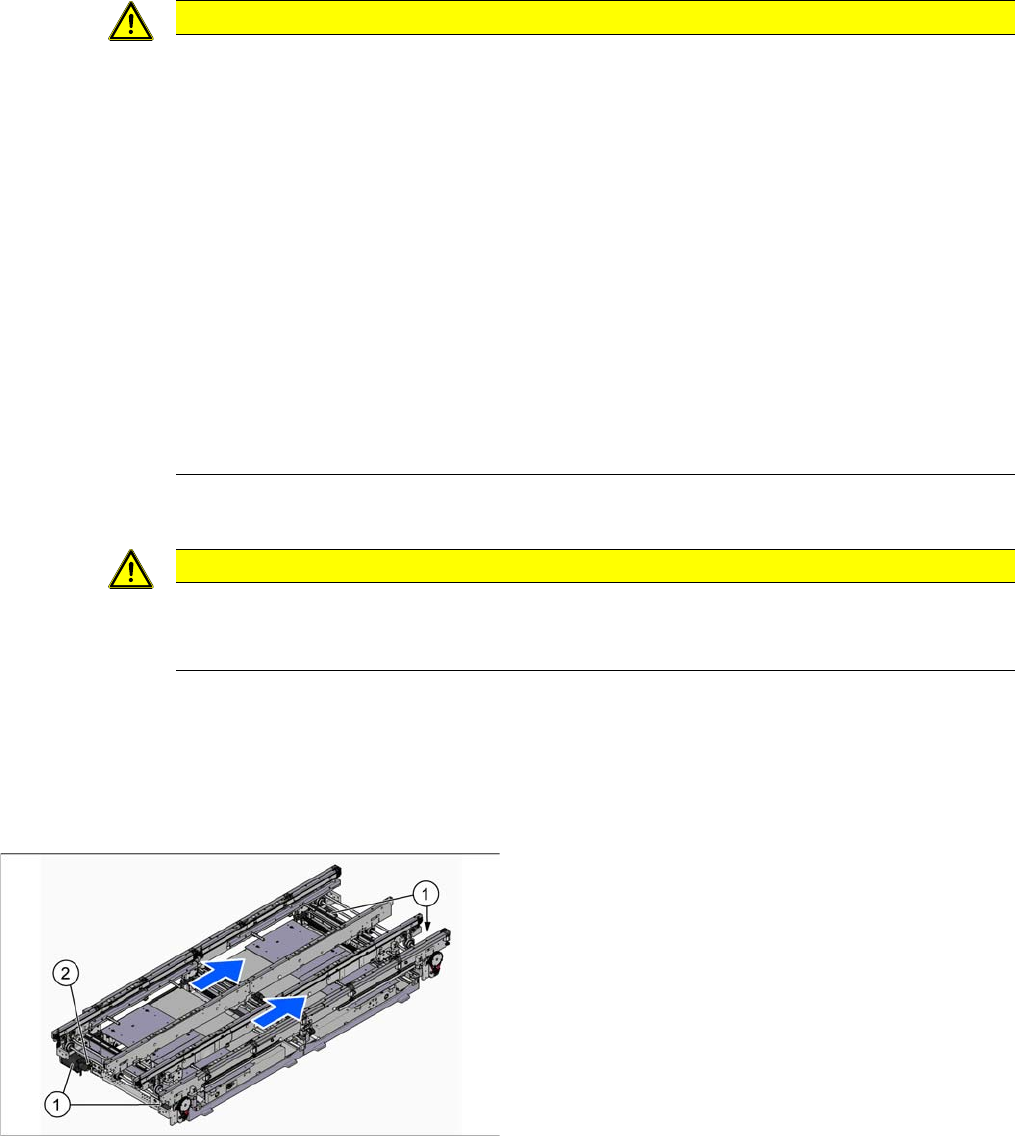

1. Conveyor Drive
2. Width adjustment drive
The width adjustment drive is attached to the convey-
or drive holder near location 4.
