Service Work

Conveyor 3.6.18 Replacing the Hexagonal Shaft [03057258-xx]

122 Service Manual SIPLACE SX4/DX4

3.6.18

3.6.18 Replacing the Hexagonal Shaft [03057258-xx]

Replacing the Hexagonal Shaft [03057258-xx]

Parts, equipment and tools

▪ Hexagonal shaft assembly [03057258-xx]

Removal

► Use the software to move the conveyor sides into the position which allows you best access. As an

alternative, you can loosen the clamps for the relevant sides in dual conveyors.

► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized

reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 12].

Installation

► Follow the removal instructions in reverse order for installation.

See also

 3.6.1 Loosening the Conveyor Side Clamps [ ➙ 95]

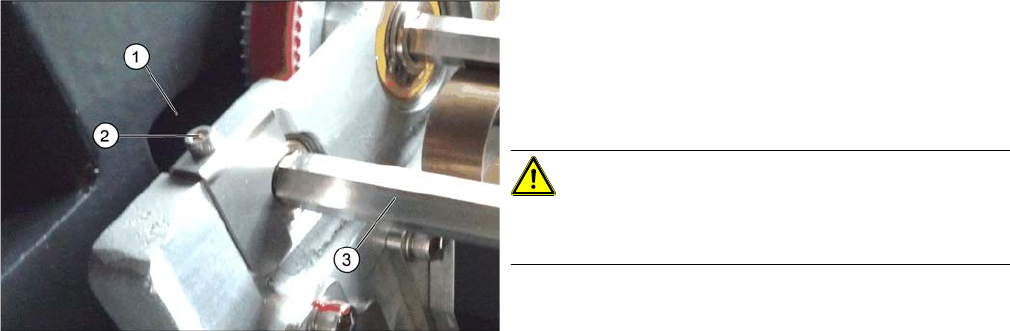

Hexagonal shafts (using example of SX1/SX2)

► Loosen the fastening (2) on the hexagonal shaft (3).

► You can now carefully push one side of the hexago-

nal shaft into the hole in the machine frame (1) and

thread it out of the conveyor sides, together with the

bearing.

CAUTION!

There are cables run inside the machine frame.

Make sure you do not damage these cables.

Service Work

3.6.19 Replacing the Sensor Rail (Stopper) Valve [03077072-xx] Conveyor

Service Manual SIPLACE SX4/DX4 123

3.6.19

3.6.19 Replacing the Sensor Rail (Stopper) Valve [03077072-xx]

Replacing the Sensor Rail (Stopper) Valve [03077072-xx]

Parts, equipment and tools

▪ Sensor rail (stopper) valve [03077072 xx]

Overview

Removal

► Use the software to move the conveyor sides into the position which allows you best access. As an

alternative, you can loosen the clamps for the relevant sides in dual conveyors.

► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized

reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 12].

► Dismantle the cover plate on the sensor rail.

► Unplug the electrical and pneumatic connections to the solenoid valve. Mark their positions, to make

clear assignment easier later on.

► Loosen the screws holding the solenoid valve in place and remove the solenoid valve.

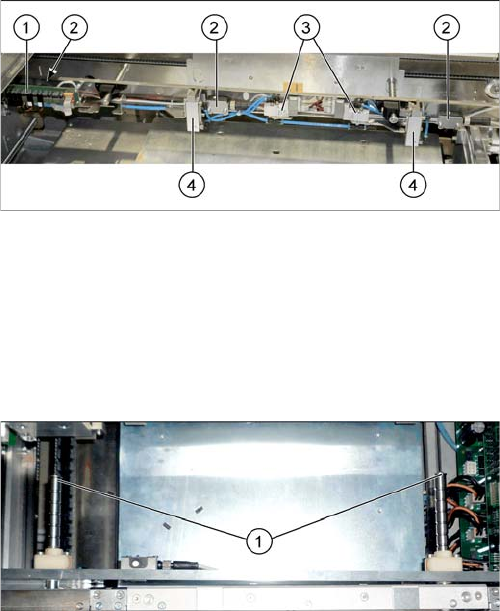

1. Conversion board

2. Ultrasonic sensors (3x)

3. Solenoid valves (2x)

4. Stoppers (2x)

► If needed, the sensor rail can be removed to allow

better access. Simply loosen the two screws (1) on

the ends of both shafts.

Service Work

Conveyor 3.6.19 Replacing the Sensor Rail (Stopper) Valve [03077072-xx]

124 Service Manual SIPLACE SX4/DX4

Installation

► Follow the removal instructions in reverse order for installation. Also observe the following instruc-

tions:
