Service Work 3.9.8 Replacing the Used Tape Chute [03067460-xx] Cutter Service Manual SIPLACE SX4/DX4 169 Removal ► Loose n the screw fastening the used t ape chut e ► Take the used tape chute down and ou t of the machine…
Service Work
Cutter 3.9.8 Replacing the Used Tape Chute [03067460-xx]
168 Service Manual SIPLACE SX4/DX4
3.9.8
3.9.8 Replacing the Used Tape Chute [03067460-xx]
Replacing the Used Tape Chute [03067460-xx]
Parts, equipment and tools
▪ Use tape chute assembly [03067460-xx]
▪ Allen key set

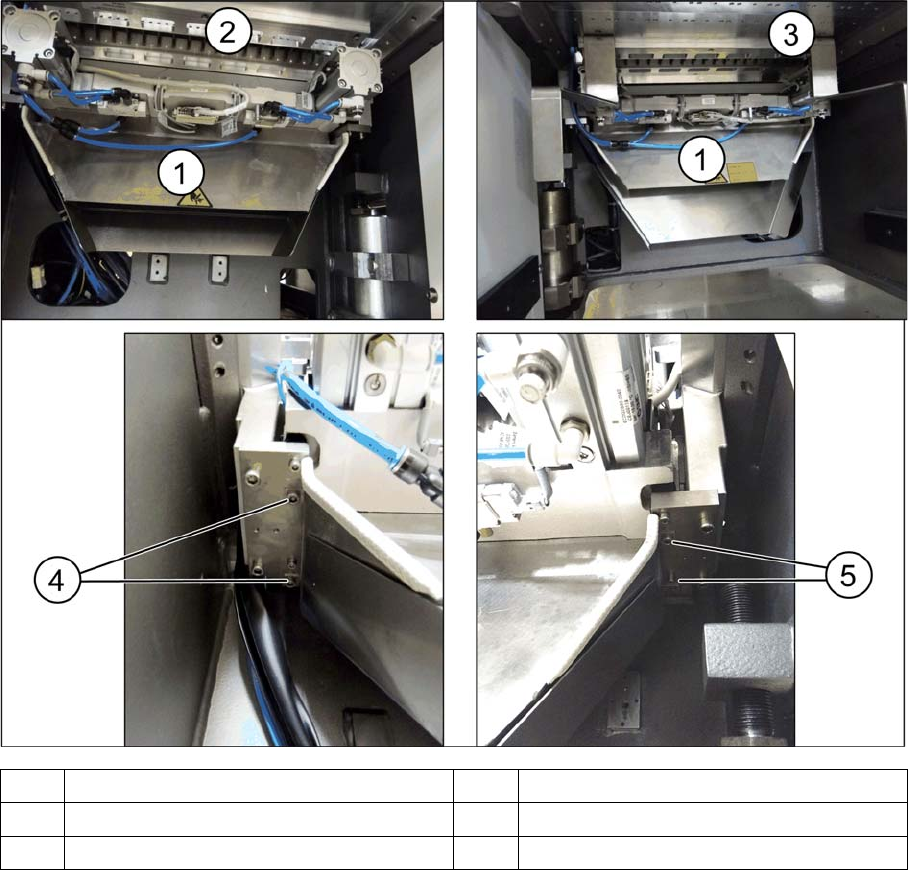

Overview
SXDX4
1 Waste slide 2 COT insert
3 Manual Table for DX4 4 Fastening screw for used tape chute, left
5 Fastening screw for used tape chute, right
Service Work
3.9.8 Replacing the Used Tape Chute [03067460-xx] Cutter
Service Manual SIPLACE SX4/DX4 169
Removal
► Loosen the screw fastening the used tape chute
► Take the used tape chute down and out of the machine.
Installation
► Follow the removal instructions in reverse order for installation.
See also
3.13.2 Removing the Back Section of the Manual Table [ ➙ 201]
3.13.3 Removing the Front Section of the Manual Table [ ➙ 202]
3.13.6 Replacing the Feeder Control Unit (FCU) [ ➙ 206]
3.10.3 Replacing the 40-Fold Feeder Unlock Device [03011582-xx] [ ➙ 173]
CAUTION
Risk of cutting
The cutter is located under the tape channel. The blades there have very sharp edges.
► Do not reach into the cutter and make sure that it is never freely accessible for longer peri-
ods.
Service Work
COT insert 3.10.1 Replacing the COT Insert Assembly [03080552-xx]
170 Service Manual SIPLACE SX4/DX4
3.10
3.10 COT insert
COT insert
3.10.1
3.10.1 Replacing the COT Insert Assembly [03080552-xx]
Replacing the COT Insert Assembly [03080552-xx]
Parts, equipment and tools
▪ COT insert SX4 assembly [03080552-xx]
▪ SIPLACE SX4/DX4 detailed circuit diagrams [00196711-xx] (German/English)
▪ Fit-up aid [03015976-xx]
▪ Suitable lifting device (e.g. hand-operated crane)
Removal
► The connection cables and hoses are located behind the COT insert – in the space leading to the
machine base (under the nozzle changer).
► Dismantle the nozzle changer.
► Mark the allocation of all press-fit connections so that you can restore the connections later, with the
new cables. If required, use the detailed circuit diagrams to help you.
► Unplug all connectors and hoses connected to the COT insert.
► Dismantle the side cover on the inside of the location so that you can remove the COT insert later on.
CAUTION
Heavy machine part!
The COT insert is heavy. To lift it out, you will need to use the fit-up aid and a suitable lifting
device (hand-operated crane etc.).

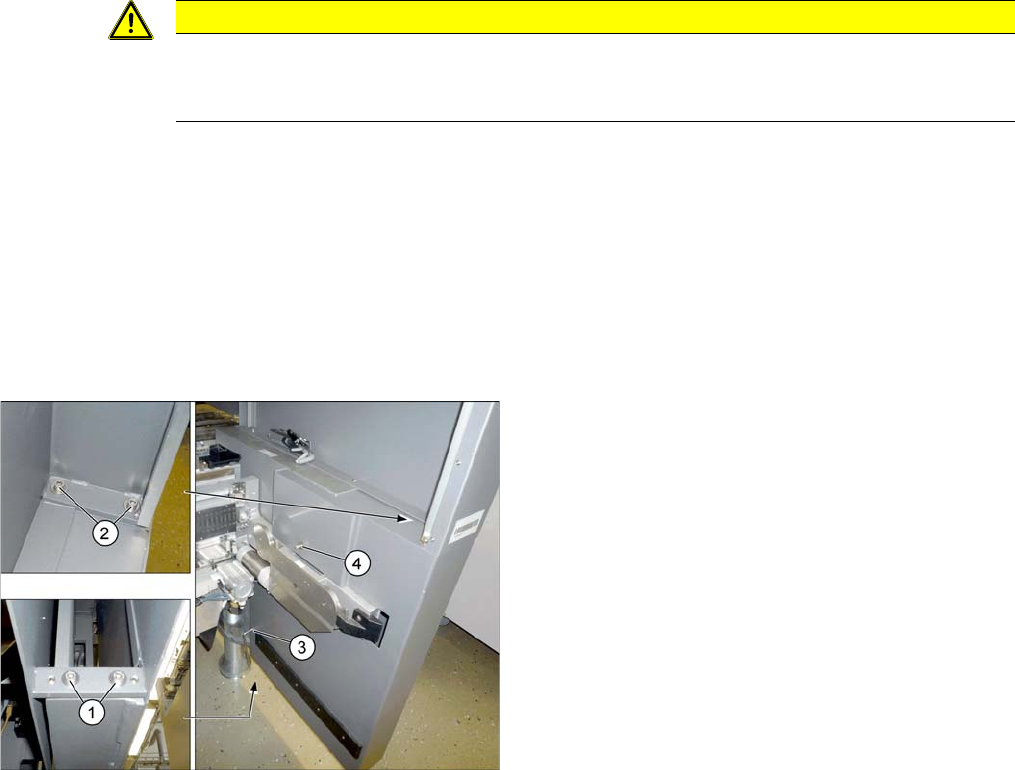

► To do this, loosen the 6 screws fastening the side
cover in the order (1) to (4) and remove these. While
unscrewing, always hold on to the side cover, to pre-
vent it falling off.
