Service Work
X-Series Component Trolley 3.11.2 Replacing the Locking Latch [03069205-xx]
184 Service Manual SIPLACE SX4/DX4
3.11.2
3.11.2 Replacing the Locking Latch [03069205-xx]
Replacing the Locking Latch [03069205-xx]
Parts, equipment and tools
▪ Single locking latch [03069205-xx]
▪ Tension spring [03010352-xx]
▪ Cover plate for locking strip [03077142-xx]
SXDX4 SX DX12V1 – M anual Table and DX Trolley
Overview
NOTICE
Component trolley X/SX series
Component trolleys from the X series (S) and SX series require a locking latch for each feeder
track.
► X series (S), SX4: feeder lock [03023777-xx] with 40 locking latches
(1x per component trolley X series (S)/SX4)
► Feeder lock [03057284-xx] with 30 locking latches
(1x per 30 track, 2x per 60 track component trolley SX1/SX2)
⇨ The feeder lock can also be completely dismantled from the component trolley and re-
placed.
NOTICE
Manual table, component trolley DX
When using a manual table or component trolley for the DX series, only every second feeder
track is locked.
If too many locking latches are fitted or if they are fitted in the wrong places, these will not be
unlocked by the unlocking device and you will not be able to remove the feeder modules. In this
case, use the unlocking hook [03038882-xx]. (See "3.13.6.1 Operating the Unlocking Hook"
[ ➙ 208])
► Feeder lock 40 [03082778-xx] with 20 locking latches
(1x per component trolley DX4)
► Feeder lock 30/2 fold [03081586-xx] with 17 locking latches
(1x 30 track and 2x 60 track manual table or component trolley DX1/DX2)
⇨ The feeder lock can also be completely dismantled from the component trolley and re-
placed.
⇨ Please also observe section "3.13.5 Replacing the Feeder Lock on the Manual Table
[03082778-xx]" [ ➙ 204].
1. Waste tape container
2. Cover
3. Position of complete feeder locking mechanism
4. Locking latch
5. Tension spring
6. Pressure plate
4
6
5
1
3
2
Service Work
3.11.2 Replacing the Locking Latch [03069205-xx] X-Series Component Trolley
Service Manual SIPLACE SX4/DX4 185
Removal/installation
► Remove the waste tape container (1) and empty it.
► Refit the waste tape container. This makes sure that any parts which fall down are not lost.
► Loosen the screws fastening the cover plate locking rail [03077142-xx] (2). Use a suitable Phillips
screwdriver, to avoid damaging the screws.
► During reassembly, take care to keep the pressure plates in their correct position (4). These are not
symmetrical and will not hold the shaft properly if placed in a certain (incorrect) position.
► When tightening the fastening screws (3), make sure that the pressure plates (4) are not at an incor-
rect angle and that the locking latches do not jam.
► Hook the tension springs (1) back up.
► Refit the cover.
See also
3.13.6.1 Operating the Unlocking Hook [ ➙ 208]
3.13.5 Replacing the Feeder Lock on the Manual Table [03082778-xx] [ ➙ 204]
NOTICE
Tape waste container
You can use the waste tape container as a surface on which to place small parts e.g. tension
springs, locking latches etc.
► Unhook all tension springs (1) from the locking latch-
es (2).
► Loosen the screws (3) fastening the pressure plates
(4).
► Pull out the locking latches with the shaft (5).
► The locking latches can now be pushed off the shaft.
► Return the locking latches, including the new one, to
the shaft.
► Fit the locking latches and shaft.
4
5
1
3
2
Service Work
X-Series Component Trolley 3.11.3 Replacing the Guide Profile/Entering Guide Feeder
186 Service Manual SIPLACE SX4/DX4
3.11.3
3.11.3 Replacing the Guide Profile/Entering Guide Feeder
Replacing the Guide Profile/Entering Guide Feeder
Parts, equipment and tools
▪ Guide profile [03002898-xx]
or
Entering guide feeder [03039368 -xx]
Overview

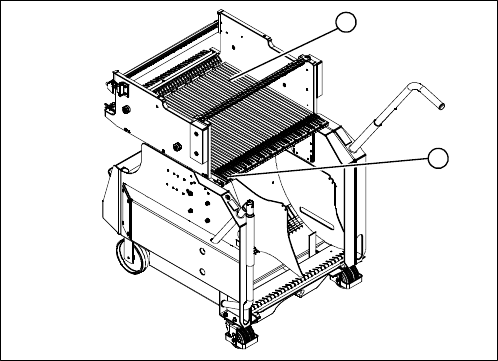

1. Short guide profile
2. Entering guide feeder
The guide profiles are fixed from above, with one screw
each.
The feeder entering guide is fixed from below, with three
screws each.
1
2
