Overview of the Modules 2.1.1 Serial Number of Module Overview of SX4/DX4 Service Manual SIPLACE SX4/DX4 19 2 2 O v e r v ie w o f t h e M o d u le s Overview of the Modules 2.1 2 . 1 O v e r v ie w o f S X 4 / D X 4 Ove…
Introduction
Abbreviations 1.3.7 SIPLACE on the World Wide Web (WWW)
18 Service Manual SIPLACE SX4/DX4
1.5
1.5 Abbreviations
Abbreviations
Abbreviations Description
PA Placement area
CO Component
COT Changeover table
COT-i Changeover table insert
C&P Collect&Place
C&P20, CP20 Collect&Place head with 20 segments
CPP Collect&Pick&Place head
CPx Collective term for CPP and/or CP20
DC Dual conveyor with 2 lanes
ESD Electrostatic sensitive device
EMC Electromagnetic compatibility
SC Single conveyor with 1 lane
FHE Fast Head Exchange
PCB Board
NC Nozzle changer
P&P Pick&Place
QC Quad lane conveyor with 4 lanes
SCS Single Core Solution
TH TwinHead
VS Vision system
Overview of the Modules
2.1.1 Serial Number of Module Overview of SX4/DX4
Service Manual SIPLACE SX4/DX4 19
2
2 Overview of the Modules
Overview of the Modules
2.1
2.1 Overview of SX4/DX4
Overview of SX4/DX4
2.1.1
2.1.1 Serial Number of Module
Serial Number of Module

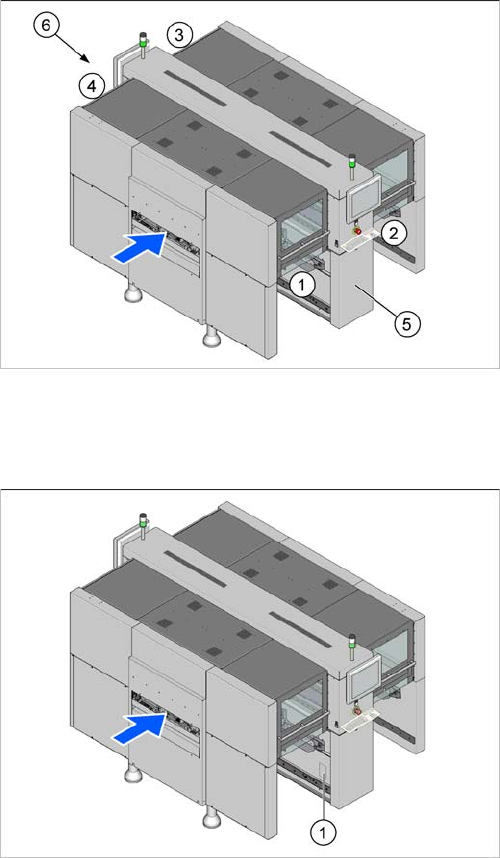

Overview of machines (using SX4 as example)
1. Location 1
2. Location 2
3. Location 3
4. Location 4
5. GCU, HCU, BoxPC
6. Power supply
The serial number of your SX4/DX4 placement machine
can be found on the typeplate (1) at location 1.
Overview of the Modules
C&P20, C&P20A and C&P20M head 2.2.1 Differentiation of the C&P20 heads
20 Service Manual SIPLACE SX4/DX4
2.2
2.2 C&P20, C&P20A and C&P20M head
C&P20, C&P20A and C&P20M head
2.2.1
2.2.1 Differentiation of the C&P20 heads
Differentiation of the C&P20 heads
Differenc es between CP 20/A/M
The C&P20A differs from the C&P20 in the following issues:
▪ New E/D transformer
▪ Improved linear guide rails at the segments
▪ Driver bearing
▪ Modified Z-axis (also used in C&P20 later on)
▪ Hoses
▪ FHE components
The C&P20M differs from the C&P20A in the following issue:
▪ Incremental encoder of the star motor

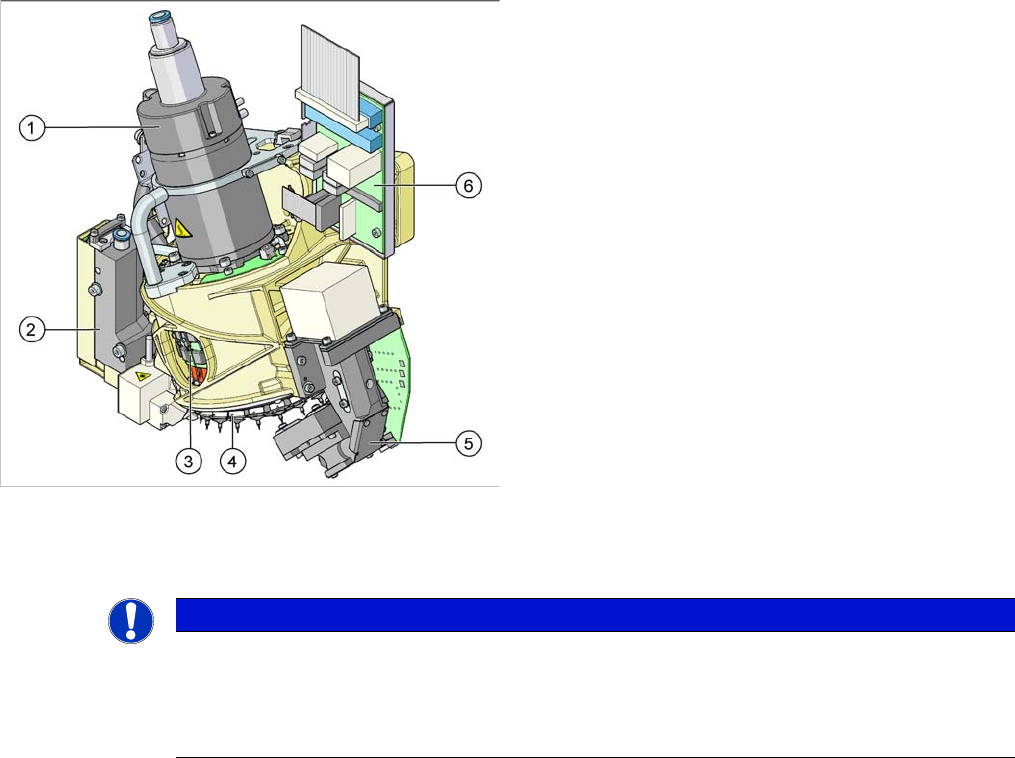

C&P20A
1. Star motor
2. Pressure control valve
3. DP drives (20 x)
4. Star with 20 nozzles
5. Component Camera
6. Intermediate distributor board
NOTICE
C&P20, C&P20A, C&P20M
The instructions apply in principle to all C&P20, C&P20A and C&P20M heads.
Any differences will be explicitly indicated.
► The different heads can be recognized according to the labeled stickers.
