Service Work Manual Table (DX4) 3.13.6 Replacing the Feeder Control U nit (FCU) 208 Service Manual SIPLACE SX4/DX4 3.13.6.1 3 . 1 3 . 6 . 1 O p e r a t in g t h e U n lo c k in g H o o k Operating the Unlocking Hook Part…
Service Work
3.13.6 Replacing the Feeder Control Unit (FCU) Manual Table (DX4)
Service Manual SIPLACE SX4/DX4 207
Removal
► Dismantle the back section of the manual table (see "3.13.2 Removing the Back Section of the Man-
ual Table" [ ➙ 201]).
► Dismantle the front section of the manual table (see "3.13.3 Removing the Front Section of the Man-
ual Table" [ ➙ 202]).
► Dismantle the feeder unlocking device and the FCU (see section "COT insert").
Installation
► Follow the removal instructions in reverse order for installation.
See also
3.10 COT insert [ ➙ 170]
3.10.3 Replacing the 40-Fold Feeder Unlock Device [03011582-xx] [ ➙ 173]
3.10.2 Replacing the Feeder Control Unit (FCU) [03059623-xx] [ ➙ 172]
If there is a WPC at the same location, perform the follow-
ing two steps as well:
► Dismantle the WPC docking rail (1).
► Dismantle the left side of the insert mechanism (2).
Loosen the 4 fastening screws (3) on the underside
and the 2 fastening screws on the top of the empty
tape duct.
Service Work
Manual Table (DX4) 3.13.6 Replacing the Feeder Control Unit (FCU)
208 Service Manual SIPLACE SX4/DX4
3.13.6.1
3.13.6.1 Operating the Unlocking Hook
Operating the Unlocking Hook
Parts, equipment and tools

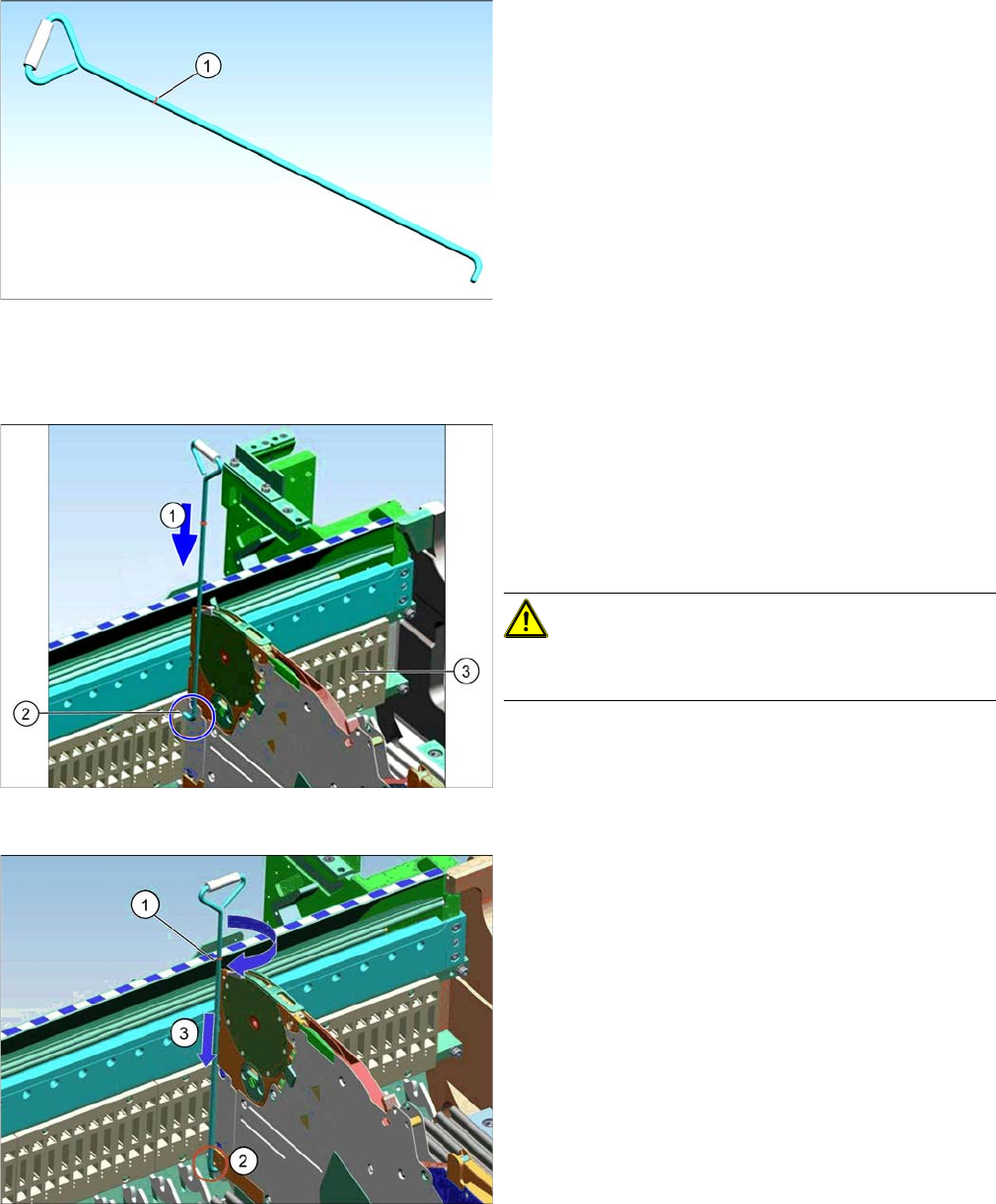

▪ Unlocking hook [03038882-xx]
Overview
Application
Unlocking hook for manual tables
In the event of an error, it is not possible to remove the X
feeders manually by just removing the table.
If the Feeder Control Unit (FCU) fails, the unlocking hook
can be used to manually remove the X feeders from the
table. You can then replace the FCU.
The unlocking hook is supplied in the service box with
each machine order.
1. Red marking - height mark to used tape chute, for un-
locking the feeder.
Guidance for unlocking hook
Once the manual table has been fully configured with
feeders, start to remove the feeders with the unlocking
hook. Start at track 1.
► (1) Guide the unlocking hook downwards, between
the side wall of the table and the feeder at track 1, lev-
el with the feeder pickup window.
CAUTION!
Make sure that the tip of the hook (2) points to the FCU
(3).
Feeder unlocking device
► If the red mark (1) on the unlocking hook is at the
same height as the upper edge of the used tape
chute, turn the hook by 90 degrees. The hook must
then engage between the feeder and the latch on the
table (2).
► Press the unlocking hook down more (3) and remove
the feeder.
► Repeat these steps for all other feeders.
Service Work
3.13.7 Replacing the Centering Bar Manual Table (DX4)
Service Manual SIPLACE SX4/DX4 209
3.13.7
3.13.7 Replacing the Centering Bar
Replacing the Centering Bar
Parts, equipment and tools
Select the correct spare part:
Overview
Removal
► Loosen the four fastening screws on the front side.
► Pull the centering bar off the locating pins.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:

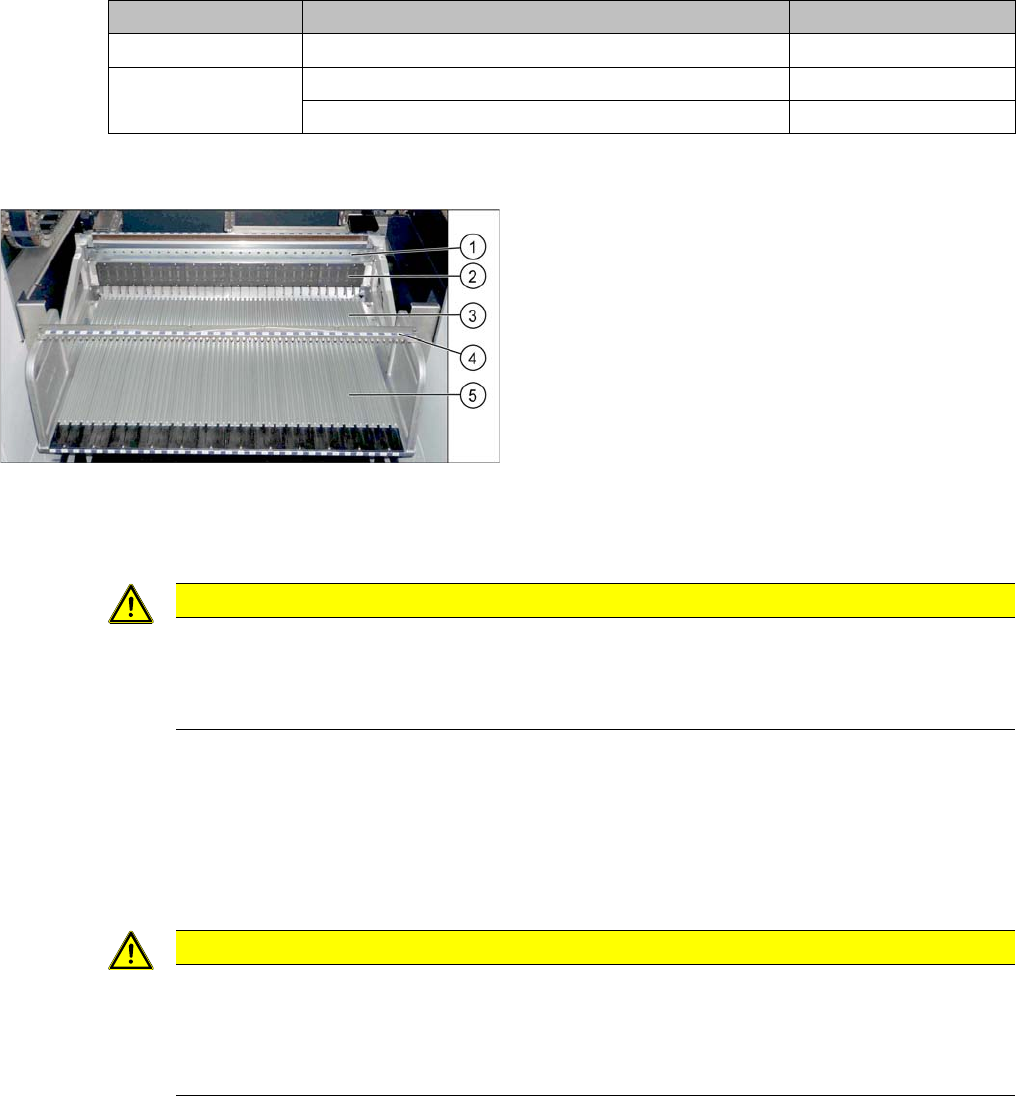

Machine type Designation Item No.
DX4 Stop rail 40/2-fold 03082777-xx
DX1/DX2 Stop rail 60/2-fold 03081975-xx
Stop rail 30/2-fold 03082572-xx
Manual table (using example of DX1/DX2)
1. Centering bar
2. FCU
3. Front part
4. Back part
CAUTION
Front and back section must be fitted
The centering bar may only be released if both the front and back sections are fixed inside the
machine. The table could be distorted otherwise. The possible consequence would be prob-
lems with feeder recognition.
CAUTION
Installation instructions
► Before installation, clean the centering pins on the sides of the centering bar.
► Make sure that the centering bar is not tensioned.
► Check that all feeders fit easily into the centering and are not subjected to tension.
