Service Work
3.14.5 Replacing the Suppressor Module in the Connector Unit Box [03097216-xx] Vacuum Pump
Service Manual SIPLACE SX4/DX4 217
3.14.5
3.14.5 Replacing the Suppressor Module in the Connector Unit Box [03097216-xx]
Replacing the Suppressor Module in the Connector Unit Box [03097216-xx]
Parts, equipment and tools
▪ EMC suppressor module RC 3x400V 575VAC 4kW [03097216-xx]
Overview
Removal
The suppressor module is located in the connector unit box. The connector unit box is located at the bot-
tom of the machine frame, at location 2.
► For more information about this, read section "3.14.3 Replacing the Connector Unit Box " [ ➙ 215].
Installation
► Observe the following instructions during installation:
See also
1.2 Preparatory Work... [ ➙ 12]

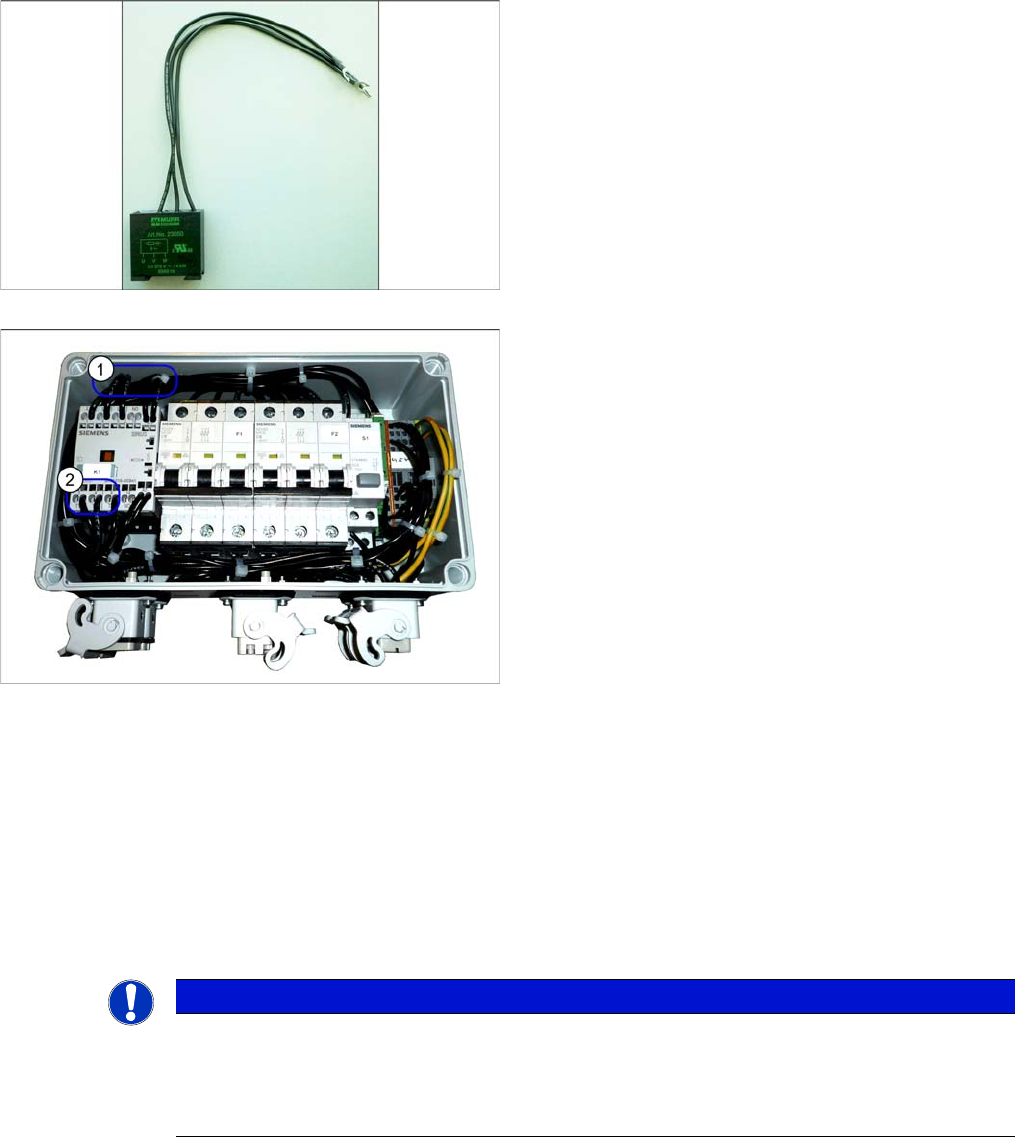

Suppressor module
Connector unit box
1. Installation location of suppressor module
2. The suppressor module is connected to terminal 2, 4
and 6.
NOTICE
Installation instructions
► Cut off the cable lugs and remove approx. 1 cm of insulation from the end of the cable.
► Unlock the terminals (e.g. with a screwdriver) and insert one cable each into terminals 2, 4
and 6.
Service Work
Vacuum Pump 3.14.6 Replacing the Circuit Breaker in the Connector Unit Box [03079445-xx]
218 Service Manual SIPLACE SX4/DX4
3.14.6
3.14.6 Replacing the Circuit Breaker in the Connector Unit Box [03079445-xx]
Replacing the Circuit Breaker in the Connector Unit Box [03079445-xx]
Parts, equipment and tools
▪ Circuit breaker 5SY6 3pol 6A C [03079445-xx]
Removal/Installation
The circuit breaker is located in the connector unit box. The connector unit box is located at the bottom
of the machine frame, at location 2.
► For more information about this, read section "3.14.3 Replacing the Connector Unit Box " [ ➙ 215].
See also
1.2 Preparatory Work... [ ➙ 12]
3.14.7
3.14.7 Replacing the Button in the Connector Unit Box [03072025-xx]
Replacing the Button in the Connector Unit Box [03072025-xx]
Parts, equipment and tools
▪ Button 5TE4 800 [03072025-xx]
Removal/Installation
The button is located in the connector unit box. The connector unit box is located at the bottom of the
machine frame, at location 2.
► For more information about this, read section "3.14.3 Replacing the Connector Unit Box " [ ➙ 215].
See also
1.2 Preparatory Work... [ ➙ 12]
3.14.8
3.14.8 Replacing the Relay Terminal Block in the Connector Unit Box [03086538-xx]
Replacing the Relay Terminal Block in the Connector Unit Box [03086538-xx]
Parts, equipment and tools
▪ Relay terminal block DEK-REL-G24/21 24VDC 1 Wech [03086538-xx]
Removal/Installation
The relay terminal block is located in the connector unit box. The connector unit box is located at the
bottom of the machine frame, at location 2.
► For more information about this, read section "3.14.3 Replacing the Connector Unit Box " [ ➙ 215].
See also
1.2 Preparatory Work... [ ➙ 12]
3.14.9
3.14.9 Replacing the Diode Terminal Block in the Connector Unit Box [03006763-xx]
Replacing the Diode Terminal Block in the Connector Unit Box [03006763-xx]
Parts, equipment and tools
▪ Diode terminal block 2.5 qmm gy 4L. with 1N4007 [03006763-xx]
Removal/Installation
The diode terminal block is located in the connector unit box. The connector unit box is located at the
bottom of the machine frame, at location 2.
► For more information about this, read section "3.14.3 Replacing the Connector Unit Box " [ ➙ 215].
See also
1.2 Preparatory Work... [ ➙ 12]
Measuring Equipment and Tools
Calibration Tool [03010565-xx]
Service Manual SIPLACE SX4/DX4 219
4
4 Measuring Equipment and Tools
Measuring Equipment and Tools
4.1

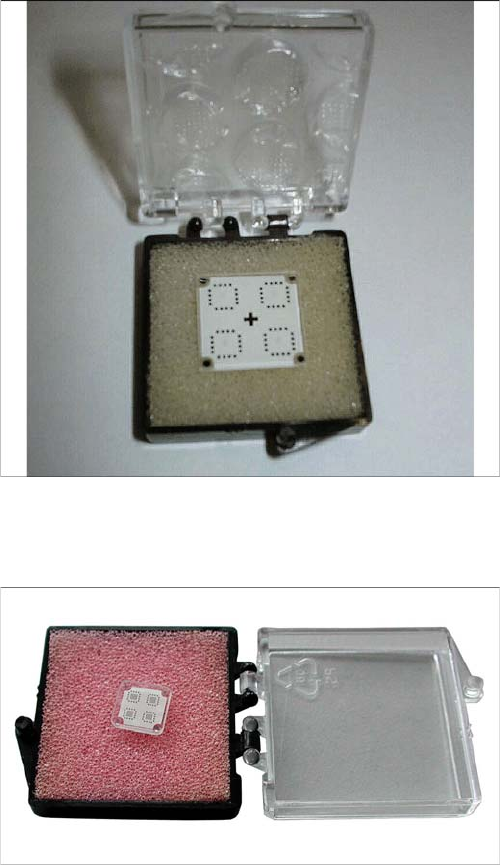

4.1 Calibration Tool [03010565-xx]
Calibration Tool [03010565-xx]
4.2
4.2 Calibration Tool [03034148-xx]
Calibration Tool [03034148-xx]
Use:
The calibration tool [03010565-xx] is used for calibration
of the DLM, CPP, P&P heads, TwinHead and PCB cam-
era.
Use:
The calibration tool is used for the following placement
heads:
▪ C&P20
▪ C&P20 A
▪ C&P20 M
▪ C&P20 P
▪ CPP (only at X4i S without stationary camera)
