Overview of the Modules 2.6.4 GCU Electrical System Service Manual SIPLACE SX4/DX4 25 2.6.4 2 . 6 . 4 G C U GCU
Overview of the Modules
Electrical System 2.6.3 Power Supply
24 Service Manual SIPLACE SX4/DX4
2.6.3
2.6.3 Power Supply
Power Supply
The power supply unit is mounted on a compact rack unit and is located between location 3 and 4. A
lockable door prevents access to the power supply.

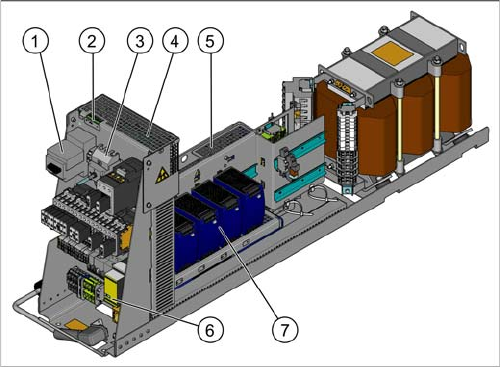

Power supply (AMI version)
Power supply [00354626-xx]
1. Motor circuit breaker with motor protection tripping
unit
2. LEDs, microfuses (board A10, under the mesh cover)
3. Output coupling link
4. Two boards are fitted over one another here.
Front: A2
Behind: A3
5. Line filter, load add circuit, ballast resistor (under the
mesh cover)
6. Protective contactor combination
7. Pulsed power pack A5 to A8
Overview of the Modules
2.6.4 GCU Electrical System
Service Manual SIPLACE SX4/DX4 25
2.6.4

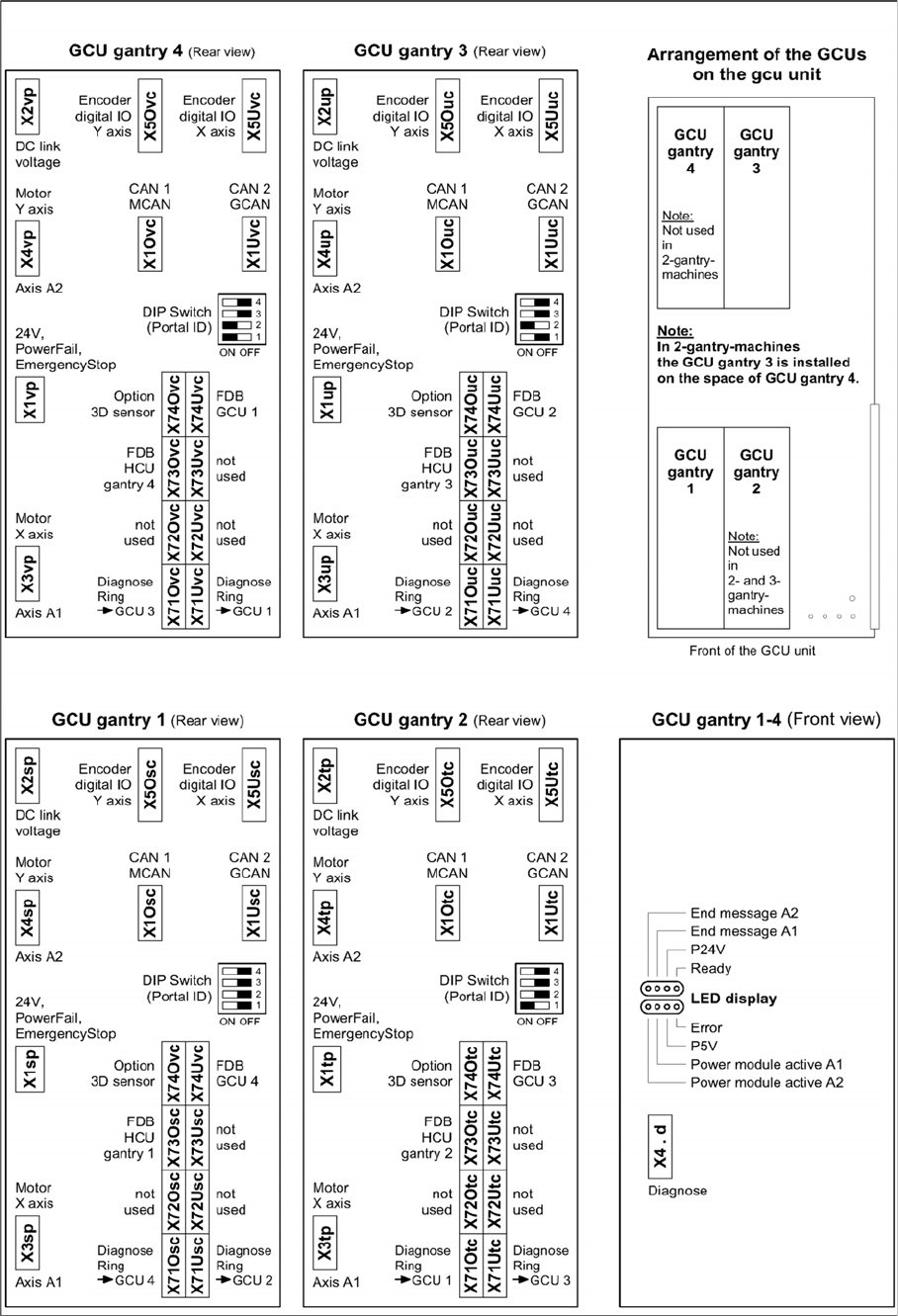

2.6.4 GCU
GCU
Overview of the Modules
Pneumatic System 2.6.4 GCU
26 Service Manual SIPLACE SX4/DX4
2.7
2.7 Pneumatic System
Pneumatic System
The pneumatic system is located at locations 1, 3 and 4, behind the side covers.
2.8
2.8 Gantries
Gantries
1. Location 3, behind the side cover: Elmo blower with
electrics, cooling air filter
2. Location 4, behind the side cover
3. Proportional controller for gantry group of placement
heads PA1/PA2
1. Location 1, behind the side cover: connection cou-
pling, main valve with compressed air filter, com-
pressed air displays
2. Location 1, at the bottom, in the machine base: com-
pressed air connection for gantry trailing cable and
vacuum pump option
3. 5/2 way valve [03062277-xx]
Main valve (X59) for NC, input, conveyor
4. 5/2 solenoid valve [00344974-xx]
Safety valve (X60) for tape cutter
5. Pressure regulator [03062103-xx]
1. Gantry trailing cables split for Y axis
2. Gantry trailing cables split for X axis
3. Gantry interface and Vision board
The Vision board is fitted on the gantry interface.
4. Y-Axis
5. Y axis scale
6. Y drive (primary)
7. X axis
8. X axis scale
9. Placement head (here: C&P20A)
10. X drive (primary)
11. Head adapter
