Settings Other Settings 5.8.2 Calibration 268 Service Manual SIPLACE SX4/DX4 5.8.2.2 5 . 8 . 2 . 2 C a lib r a t io n P r o c e d u r e Calibration Procedure C&P calibration procedure
Settings
5.8.2 Calibration Other Settings
Service Manual SIPLACE SX4/DX4 267
5.8.2
5.8.2 Calibration
Calibration
Overview
This calibration step first measures the component camera. This determines the relationship of "camera
pixel size to resolution of machine measuring system (X,Y)", the "camera center point in X and Y direc-
tion" and the "torsion angle of the CCD sensor in the camera". This is following by determining the head
offset and the segment offsets for the top and bottom.
▪ Head offset: the head offset is the distance between the PCB camera and the nozzle (segment 1).
The target is a fixed value (X=0 and Y=-105 mm), to which an offset value (from the head calibration)
is added.
▪ Segment offset top: the top segment offset involves turning the calibration tool in the component
camera in 0, 90, 180 and 270° steps. The value determined is that of the rotating center of the nozzle
tip in relation to the component camera center in the X and Y direction.
▪ Segment offset bottom: the bottom segment offset involves recording and measuring the calibration
tool in the 0, 90, 180 and 270° positions. The value determined is that of the rotating center point of
the nozzle tip when the Z axis is extended in relation to the PCB camera. Segment 1 forms the ref-
erence (X=0, Y=0) to the other segments.
5.8.2.1
5.8.2.1 Calibrating the Heads and Cameras
Calibrating the Heads and Cameras
► Switch over to the operator level Service (Customer).
► Switch over to the Service menu and select Ma-
chine calibration or Automatic calibration (depending
on SW version).
► Select 8. Head and cameras and click on Next.
► On the next page, select the gantries on which the
heads to be calibrated are located and then click on
Next.
► The next step is to check the calibration conditions
(nozzle, calibration tool etc.). Follow the instructions
provided.
After this step, calibration will begin. All required interme-
diate steps (head height etc.) will be performed automat-
ically.
Settings
Other Settings 5.8.2 Calibration
268 Service Manual SIPLACE SX4/DX4
5.8.2.2
5.8.2.2 Calibration Procedure
Calibration Procedure
C&P calibration procedure
Settings
5.8.3 Setting the Nozzle Reject and Station Height Other Settings
Service Manual SIPLACE SX4/DX4 269
5.8.3
5.8.3 Setting the Nozzle Reject and Station Height
Setting the Nozzle Reject and Station Height
Parts, equipment and tools
▪ Depth measuring gauge (300 mm) [03079617-xx]
▪ Adjusting plates for nozzle reject device [03039514-xx]
▪ Screws DIN 7991-M4 x 20-8.8 [00333782-xx]
▪ Plastic sheet (to keep the depth measuring gauge away from the magnets).
Setting

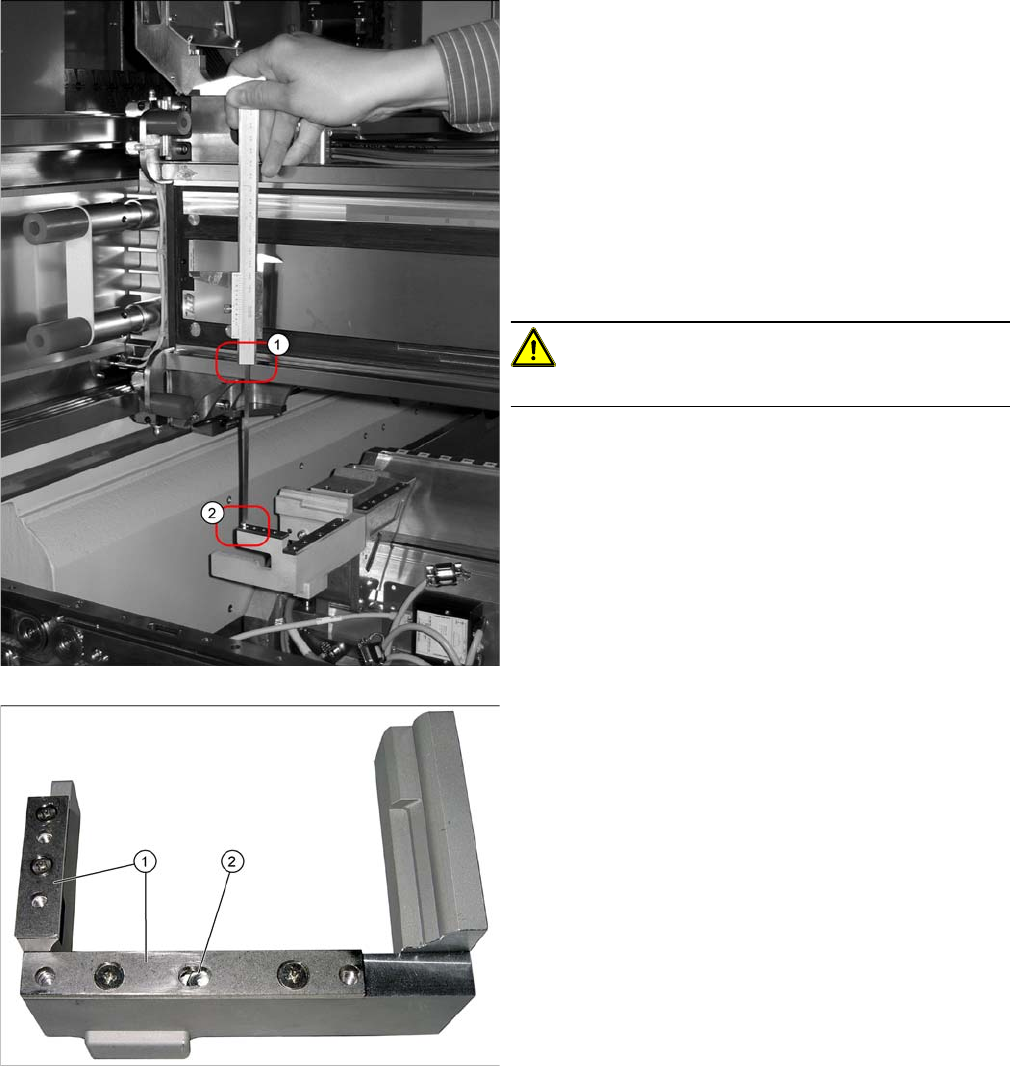

1. Position upper edge of measuring scale on the linear
guidance.
2. Bottom end of measuring gauge on the assembly sur-
face of the nozzle station
► Push the placement head to be measured outwards.
► Place a plastic plate in front of the magnets.
► Position the measuring gauge on the upper edge of
the nozzle station assembly surface and measure the
distance to the upper edge of the lower X axis linear
guidance.
CAUTION!
Hold the measuring scale vertically!
1. Adjusting plates
2. Slot
► Set a distance of 139.0±0.2 mm for all placement
heads.
If the distance is too large, insert shim plates: Shim
plates for nozzle stripping device [03039514-xx,
Screws DIN7991 M4x20-8.8 [00333782-xx].
