Overview of the Modules

2.9.1 Single conveyor PCB Conveyor

Service Manual SIPLACE SX4/DX4 27

2.9

2.9 PCB Conveyor

PCB Conveyor

The SX4 machine is fitted with a dual or quad lane conveyor, depending on your configuration. DX4 ma-

chines are fitted with a single conveyor.

2.9.1

2.9.1 Single conveyor

Single conveyor

2.9.2

2.9.2 Dual Conveyor

Dual Conveyor

2.9.3

2.9.3 Quad Lane Conveyor

Quad Lane Conveyor

The single conveyor has one lane. In the standard ver-

sion, the fixed conveyor side wall is on the right.

1. Placement area 1

2. Placement area 2

3. Stopper (5 x)

4. Conveyor drive (2x)

5. Lifting tables (2x)

6. Installation position for conveyor control TSP 410

The dual conveyor has two conveyor lanes. In the stand-

ard version, the fixed conveyor side wall of each convey-

or lane is on the right-hand side.

1. Placement area 1

2. Placement area 2

3. Stoppers (5 x per conveyor lane)

4. Conveyor drive (4x)

5. Lifting tables (4x)

6. Conveyor control TSP410 (2x, under the covers)

The quad lane conveyor has four conveyor lanes. In the

standard version, the fixed conveyor side wall of each

conveyor lane is on the right-hand side.

1. Placement area 1

2. Placement area 2

3. Stoppers (3 stoppers (5 per conveyor lane)

4. Conveyor drive (4x)

5. Lifting tables (4x)

6. Conveyor control TSP410 (2x, under the covers)

Overview of the Modules

COT Insert for SX4 2.9.4 Width Adjustment

28 Service Manual SIPLACE SX4/DX4

2.9.4

2.9.4 Width Adjustment

Width Adjustment

Function Description

The width is adjusted by means of a motor as programmed. For dual conveyor systems, differing widths

can be set for the two conveyor lanes. The width adjustment uses a motor with its own measuring sys-

tem, meaning that the PCB width can be set independently of other machine components (e.g. the Y

gantry).

The PCB width is adjusted using the width adjustment units. These are moved synchronously back and

forth by the drive motor, with the help of recirculating spindles and a toothed belt.

The side clamp is released by moving out fixing pins. At the same time, the side is fixed to the adjustment

units. After reaching the new PCB width, the fixing pins move back in. The conveyor side is then clamped

again.

2.10

2.10 COT Insert for SX4

COT Insert for SX4

1. Adjustment unit

2. Toothed belt of width adjustment

3. Drive unit of width adjustment

The COT insert is fitted in the SX4 as a default. This is op-

tional for the DX4.

NOTICE!

Please note that the FCU and the spring release differ be-

tween the SX4 and DX4. In the DX4, only every second

feeder track is supported.

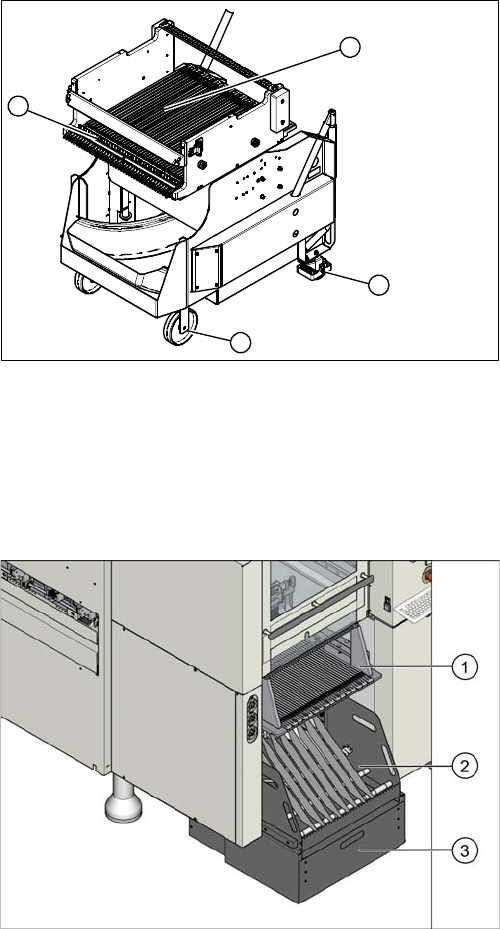

1. Safety switch for the component trolley

2. Empty tape duct

3. Assembly positions for the nozzle changers

4. Cutter

5. Feeder control unit (FCU)

6. Waste slide

7. Feed control

8. Feeder unlocking device

Overview of the Modules

2.9.4 Width Adjustment X-Series component trolley

Service Manual SIPLACE SX4/DX4 29

2.11

2.11 X-Series component trolley

X-Series component trolley
