Description of the circuit boards 6.2.4 X base adapter C&P [03045647-xx] Ga ntry Service Manual SIPLACE SX4/DX4 285 Meaning of LEDs H1 - H9 The voltage monitors trigger as soon as the target voltage is e xceeded or u…
Description of the circuit boards
Gantry 6.2.4 X base adapter C&P [03045647-xx]
284 Service Manual SIPLACE SX4/DX4
Switch S2
All switches must be set to OFF. If needed, the HCU can be reset with S3.
Further Information
Base adapter for CPx [03045647-xx] on machines with HCU
Switch Description
S1 S0 Gantry encoding (currently not used)
S2 S1 Gantry encoding (currently not used)
S3 Reset Reset HCU
S4 Boot HCU bootstrap function activated (not designed for Service)

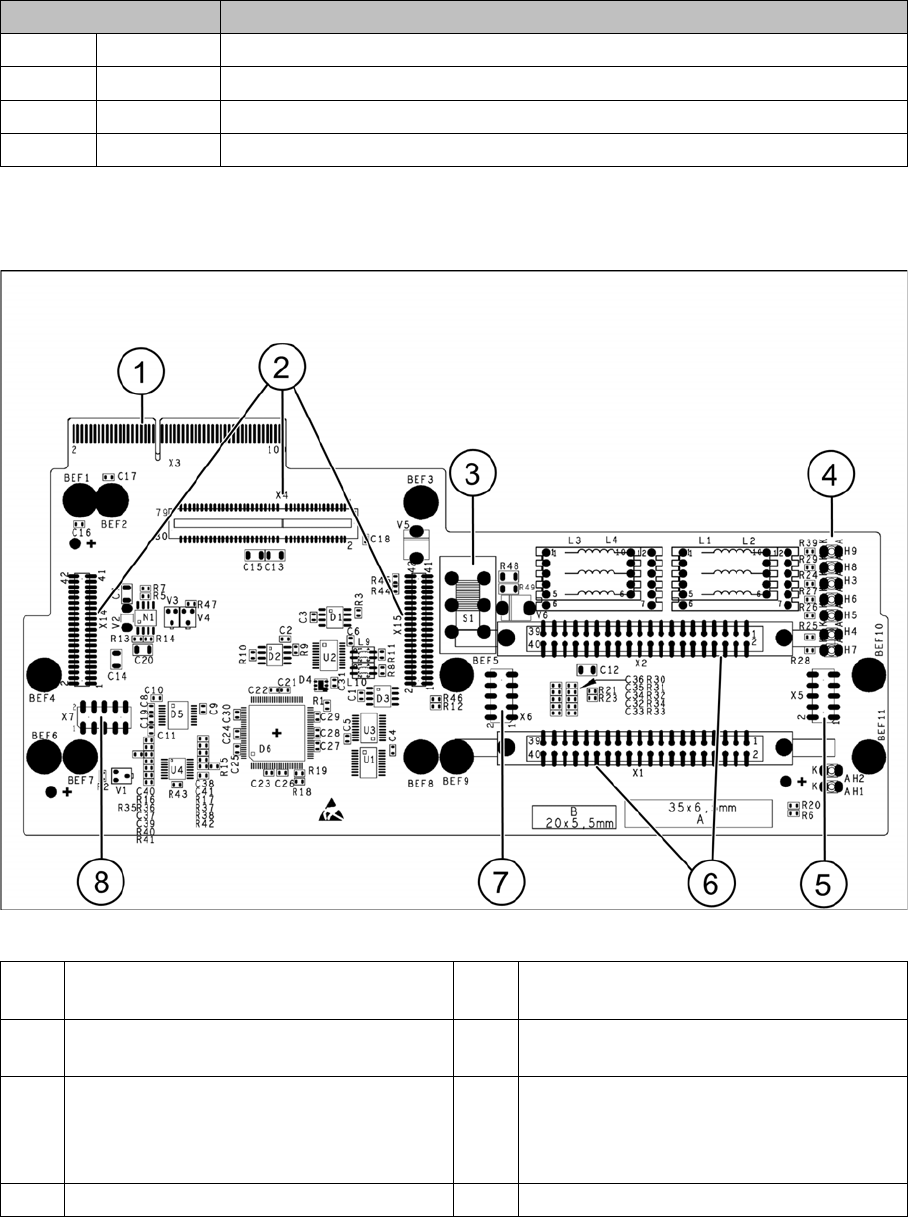

1 X3 Connection to the head interface board
C700
5 Test connector for FPGA
2 X4, X14, X15 – connector for HCU 6 X1-X2 flat ribbon connection for CPP or
C&P20
3 Switch S1 intermediate circuit voltage
Z axis
40V C&P20 (switch top)
150V CPP(switch bottom)
7 X6 Programming connector for FPGA
4 LED H3- H9 8 X7 Test connector HCU
Description of the circuit boards
6.2.4 X base adapter C&P [03045647-xx] Gantry
Service Manual SIPLACE SX4/DX4 285
Meaning of LEDs H1 - H9
The voltage monitors trigger as soon as the target voltage is exceeded or undershot by 5%.
H1 Ok Status display for the component sensor
H2 RS232 Shines when the programming connector for the HCU1 is connected (not de-
signed for Service)
H3 1V5 Voltage monitor 1.5 V, shines red in event of errors
H4 3V3 Voltage monitor 3.3 V, shines red in event of errors
H5 5V Voltage monitor 5 V, shines red in event of errors
H6 15V Voltage monitor 15 V, shines red in event of errors
H7 DP Voltage monitor DP (currently without function)
H8 24V Voltage monitor 24 V, shines red in event of errors
H9 LOC Voltage monitor local - shines red as soon as one of the voltage monitors trig-
gers (not for 24 V)
Description of the circuit boards
Gantry 6.2.5 X base adapter TWIN [03054879-xx]
286 Service Manual SIPLACE SX4/DX4
6.2.5
6.2.5 X base adapter TWIN [03054879-xx]
X base adapter TWIN [03054879-xx]
From version -03:
03054879-03/-04
LED [03054879-03]
X4
X14
X15
Connections for HCU (TwinHead
module 2)
X9
X16
X17
Connections for HCU (TwinHead
module 1)
X30
X31
Connections for TwinHead module 2 X32
X33
Connections for TwinHead module 1
X3 Connection on the head interface Hx LEDs (see below)
LED Color Status Signal name Description
H2 GN ON - HCU2 programming connector connected
H3 RD ON FPGA_TEST_6 1.5VDC PowerFail
H4 RD ON FPGA_TEST_2 3.3VDC PowerFail
H5 RD ON FPGA_TEST_4 5VDC PowerFail
H6 RD ON FPGA_TEST_1 15VDC PowerFail
H7 RD ON FPGA_TEST_3 DP PowerFail, not used
H8 RD ON FPGA_TEST_5 24VDC PowerFail
H9 RD ON POWERFAIL_LOCAL PowerFail board:
ON, when 1.5VDC, 3.3VDC, 5VDC and 15VDC
are outside the permissible tolerance
