Description of the circuit boards 6.2.5 X base adapter TWIN [03054879-xx] Gantry Service Manual SIPLACE SX4/DX4 287 Older versions: Base adap ter bo ard (without HCU) LEDs - meanings The voltage monitors trigger as so on…
Description of the circuit boards
Gantry 6.2.5 X base adapter TWIN [03054879-xx]
286 Service Manual SIPLACE SX4/DX4
6.2.5
6.2.5 X base adapter TWIN [03054879-xx]
X base adapter TWIN [03054879-xx]

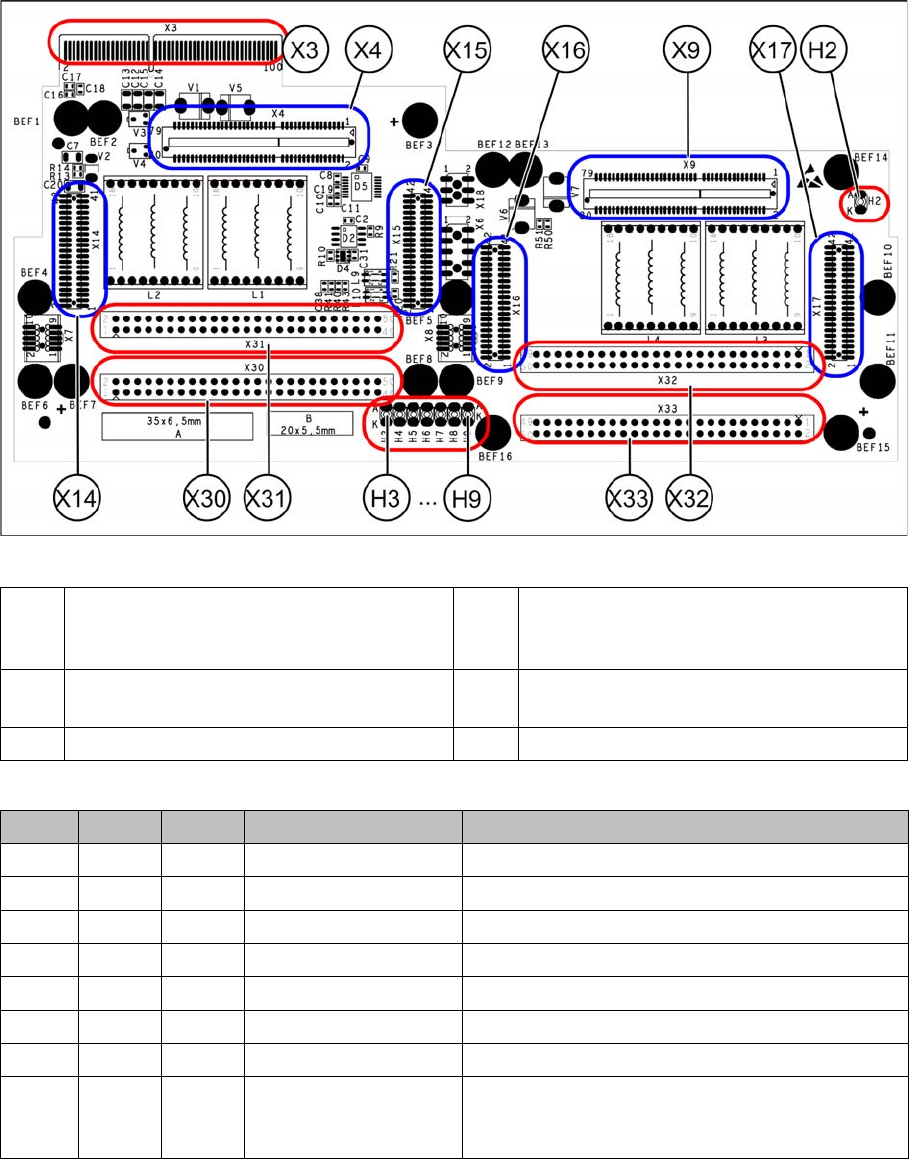

From version -03:
03054879-03/-04
LED [03054879-03]
X4
X14
X15
Connections for HCU (TwinHead
module 2)
X9
X16
X17
Connections for HCU (TwinHead
module 1)
X30
X31
Connections for TwinHead module 2 X32
X33
Connections for TwinHead module 1
X3 Connection on the head interface Hx LEDs (see below)
LED Color Status Signal name Description
H2 GN ON - HCU2 programming connector connected
H3 RD ON FPGA_TEST_6 1.5VDC PowerFail
H4 RD ON FPGA_TEST_2 3.3VDC PowerFail
H5 RD ON FPGA_TEST_4 5VDC PowerFail
H6 RD ON FPGA_TEST_1 15VDC PowerFail
H7 RD ON FPGA_TEST_3 DP PowerFail, not used
H8 RD ON FPGA_TEST_5 24VDC PowerFail
H9 RD ON POWERFAIL_LOCAL PowerFail board:
ON, when 1.5VDC, 3.3VDC, 5VDC and 15VDC
are outside the permissible tolerance
Description of the circuit boards
6.2.5 X base adapter TWIN [03054879-xx] Gantry
Service Manual SIPLACE SX4/DX4 287

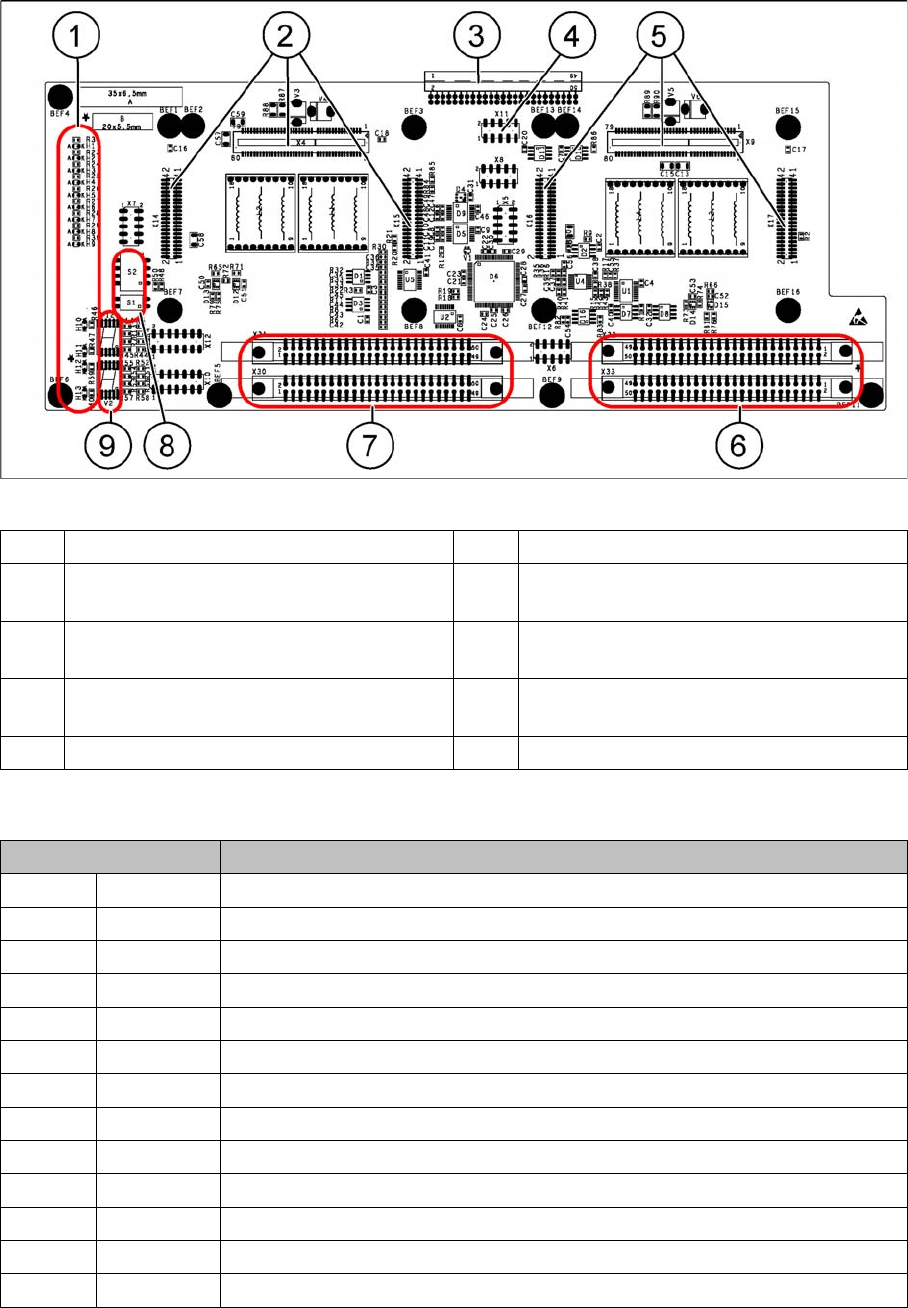

Older versions:
Base adapter board (without HCU)
LEDs - meanings
The voltage monitors trigger as soon as the nominal voltage is undershot by 5%.
1 LEDs H1-H13 2 X4, X14, X15 – connector for HCU1
3 X3 – connector to the gantry interface
board C700
4 X11 – service connector for checking the
voltages
5 X9, X16, X17 – connector for HCU2 6 X32, X33 – connector for segment 2 flat rib-
bon cable
7 X30, X31 – connector for segment 1 flat rib-
bon cable
8 DIP switches S1 and S2
9 7-segment displays
LED Description
H1 RS232 Lights up when the HCU1 programming connector is plugged in
H2 RS232 Lights up, when the HCU2 programming connector is plugged in
H3 1V5 1.5 V voltage monitoring - lights up red in case of an error
H4 3V3 3.3 V voltage monitoring - lights up red in case of an error
H5 5V 5 V voltage monitoring - lights up red in case of an error
H6 15V 15 V voltage monitoring - lights up red in case of an error
H7 DP DP voltage monitoring – (currently without function)
H8 24V 24 V voltage monitoring - lights up red in case of an error
H9 LOC Voltage monitoring local - lights up as soon as the voltage monitors triggers.
H10 Ok HCU1-OK - HCU running without errors
H11 ERR HCU1 error - HCU reports an error
H12 Ok HCU2-OK - HCU running without errors
H13 ERR HCU2 error - HCU reports an error
Description of the circuit boards
Gantry 6.2.5 X base adapter TWIN [03054879-xx]
288 Service Manual SIPLACE SX4/DX4
Switch S1
All switches must be set to OFF. If required, the HCU can be reset with the "reset" button.
Switch S2
All switches must be set to OFF. If required, the HCU can be reset with the "reset" button.
Switch Description
S1 Not used No function
S2 Reset HCU
2
Resets the HCU2
Switch Description
S1 Boot Bootstrap function for the HCUIs
S2 Reset HCU
1
Resets the HCU1
S3 S1 Gantry encoding (currently not used)
S4 S0 Gantry encoding (currently not used)
