Description of the circuit boards 6.3.1 Conveyor control TSP410C, control module [03077468-xx] Con veyor Service Manual SIPLACE SX4/DX4 289 6.3 6 . 3 C o n v e y o r Conveyor 6.3.1 6 . 3 . 1 C o n v e y o r c o n t r o l…
Description of the circuit boards
Gantry 6.2.5 X base adapter TWIN [03054879-xx]
288 Service Manual SIPLACE SX4/DX4
Switch S1
All switches must be set to OFF. If required, the HCU can be reset with the "reset" button.
Switch S2
All switches must be set to OFF. If required, the HCU can be reset with the "reset" button.
Switch Description
S1 Not used No function
S2 Reset HCU
2
Resets the HCU2
Switch Description
S1 Boot Bootstrap function for the HCUIs
S2 Reset HCU
1
Resets the HCU1
S3 S1 Gantry encoding (currently not used)
S4 S0 Gantry encoding (currently not used)
Description of the circuit boards
6.3.1 Conveyor control TSP410C, control module [03077468-xx] Conveyor
Service Manual SIPLACE SX4/DX4 289
6.3
6.3 Conveyor
Conveyor
6.3.1

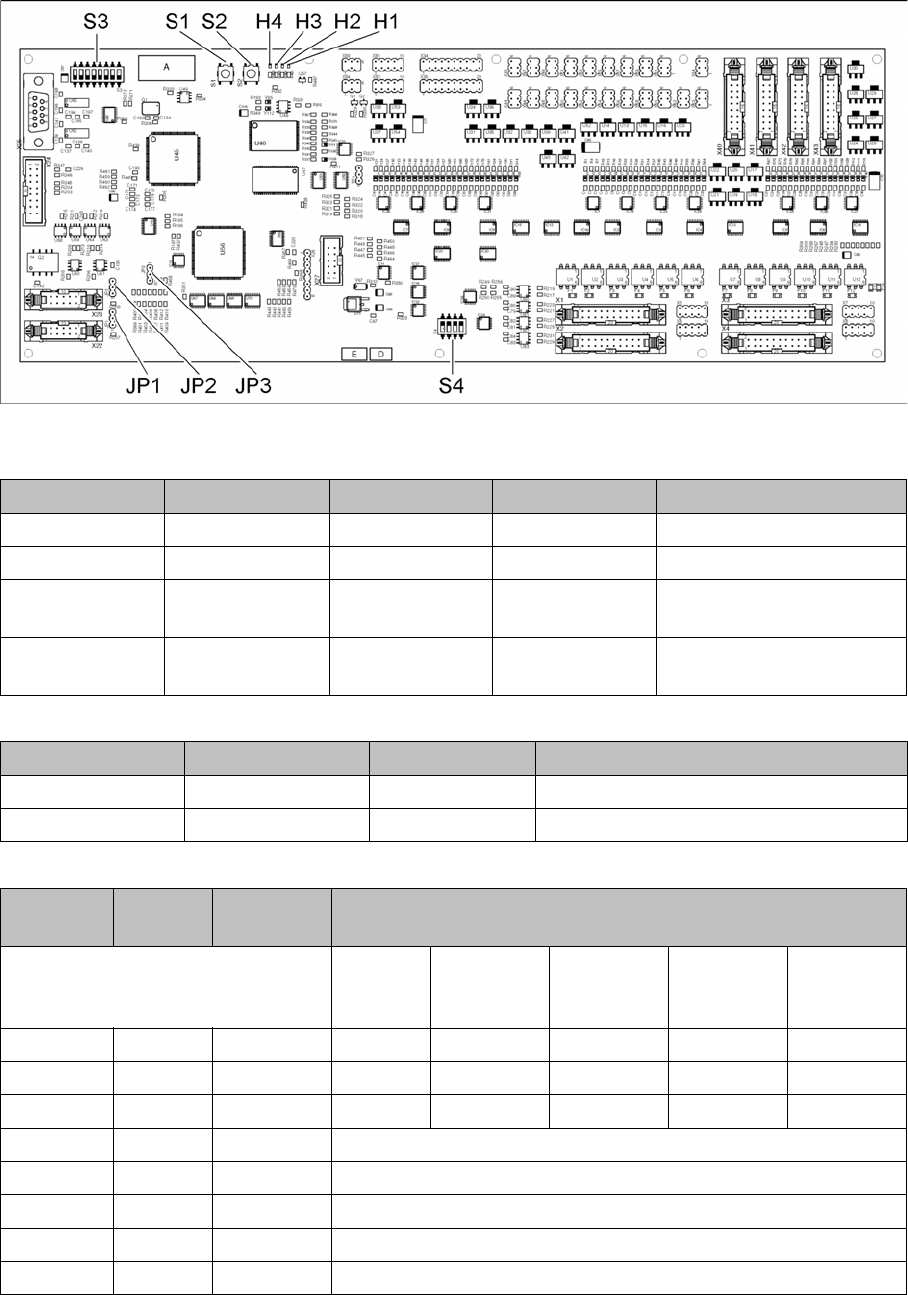

6.3.1 Conveyor control TSP410C, control module [03077468-xx]
Conveyor control TSP410C, control module [03077468-xx]
03077468-02
LED [03077468-02]
Button S1 and S2 [03077468-02]
Dip switch S3 [03077468-02]
LED Color Status Signal name Description
H1 RD ON LED_FAIL Error
H2 GN ON LED_RUN Running
H3 YE ON LED_CAN1 CAN bus activity to ma-
chine
H4 YE ON LED_CAN2 CAN bus activity
2. conveyor control
Buttons Status Signal name Description
S1 OFF /MR ON: Reset
S2 OFF /BSL ON: boot
Switch Status Signal
name
Description
Single
conveyor
Dual con-
veyor, lane
1
Dual con-
veyor, lane
2
Quad lane
1R/1L
Quad lane
2R/2L
S3.1 ON/OFF /DIP1 OFF OFF ON OFF ON
S3.2 ON/OFF /DIP2 OFF ON OFF ON OFF
S3.3 ON/OFF /DIP3 OFF OFF OFF ON ON
S3.4 OFF /DIP4 Reserved
S3.5 ON /DIP5 Reserved
S3.6 OFF /DIP6 Reserved
S3.7 OFF /EBSL ON: bootstrap mode
S3.8 OFF /EXTSTRT Flash memory internal, ON: flash memory external
Description of the circuit boards
Conveyor 6.3.2 Conveyor control TSP410P, power module [03077469-xx]
290 Service Manual SIPLACE SX4/DX4
Dip switch S4 [03077468-02]
Jumper [03077468-02]
6.3.2

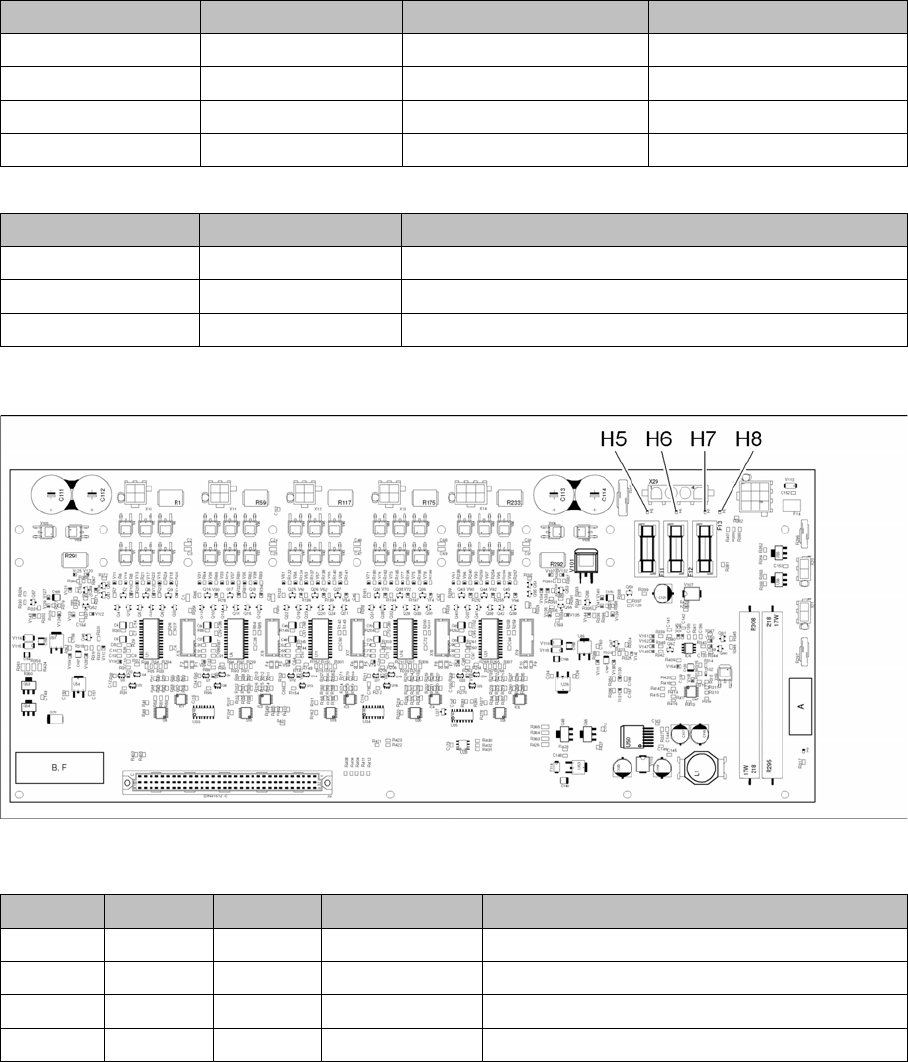

6.3.2 Conveyor control TSP410P, power module [03077469-xx]
Conveyor control TSP410P, power module [03077469-xx]
03077469-03
LED [03077469-03]
Switch Status Signal name Description
S4.1 OFF /DIP7 Reserved
S4.2 OFF /DIP8 Reserved
S4.3 OFF /DIP9 Reserved
S4.4 OFF /DIP10 Reserved
Jumper Status Description
JP1 OFF No 120 ohms CAN resistor
JP2 1-2 No 120 ohms CAN resistor
JP3 OFF Jumper set to 1-2: FPGA download cable connected
LED Color Status Signal name Description
H5 GN ON PM1_1 +40VDC OK (placement area 1)
H6 GN ON PM1_2 +40VDC OK (placement area 2)
H7 GN ON +24V +24VDC OK
H8 GN ON P_BRAKE Supply voltage for lifting table brake OK
