Service Work
3.1.1 Replacing the Gas Pressure Shock Absorber on the Cover [03086743-xx] Basic Machine
Service Manual SIPLACE SX4/DX4 33
Parts, equipment and tools
▪ Loctite 638 [00317731-xx], if required
Troubleshooting for FS01
See also
3.1.1 Replacing the Gas Pressure Shock Absorber on the Cover [03086743-xx] [ ➙ 31]
► Check the screwed fixtures on the gas springs.
► If the screwed fixtures have loosened, proceed as fol-
lows:
► Remove the gas springs (see previous chapter).
► Dismantle the two end pieces.
► Make sure that the thread is free of grease and dust.

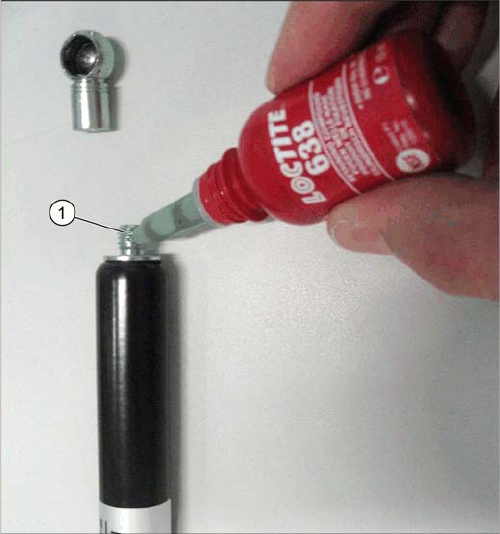

► Coat the thread of the gas spring with Loctite 638 and
then screw the end pieces back onto the gas springs.
► Fit the gas springs again (see previous chapter).
Service Work
Basic Machine 3.1.2 Replacing the Cover Switch [03055263-xx]
34 Service Manual SIPLACE SX4/DX4
3.1.2
3.1.2 Replacing the Cover Switch [03055263-xx]
Replacing the Cover Switch [03055263-xx]
Parts, equipment and tools
▪ Safety switch AZ 16-03zvrk-M16 3Oe [03055263-xx]
Overview
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 12].
► Unplug the connection cable from the cover switch.
► Loosen the screws fastening the cover switch and remove the cover switch.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:
See also
3.1.1 Replacing the Gas Pressure Shock Absorber on the Cover [03086743-xx] [ ➙ 31]

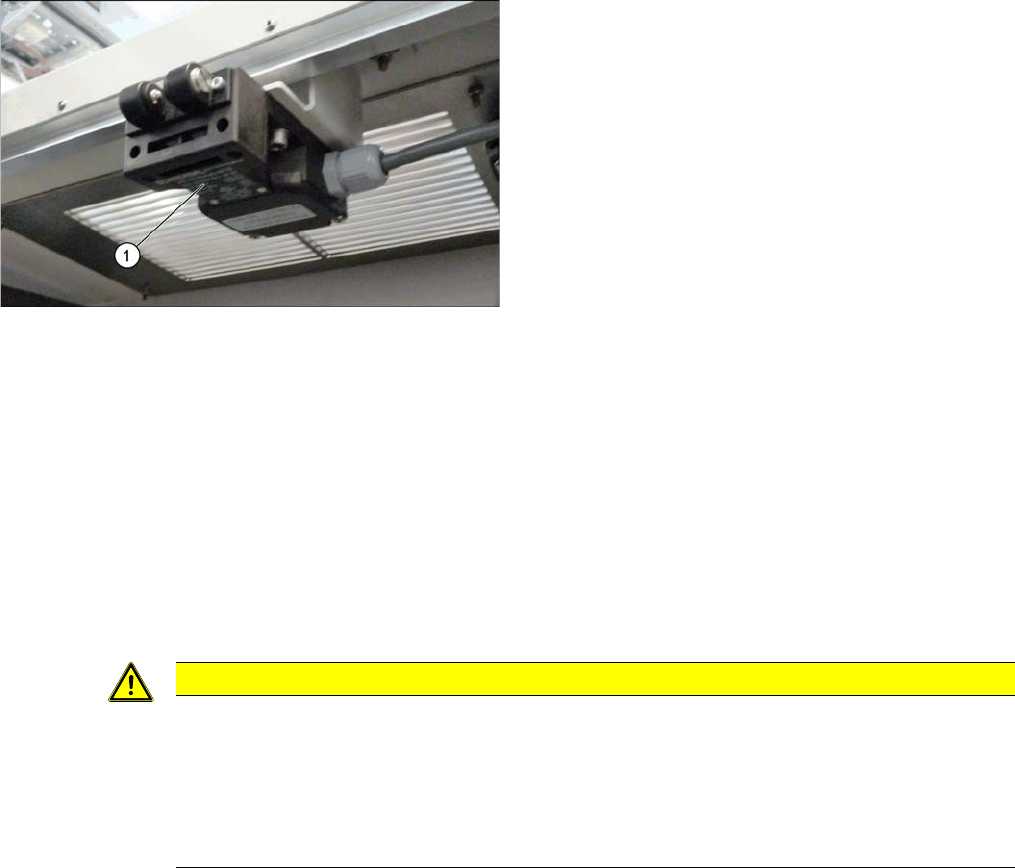

Cover switch (using example of SX1/SX2)
1. Cover switch
CAUTION
Installation instructions
► The cover switch must be set to the cover. Make sure that the cover switch is clean and
switches properly. The cover switch needs to be set so that even a minimal opening of the
cover will trigger the safety circuit.
► Switch the machine on and make sure that the cover switch activates the safety circuit,
when the protective covers are opened.
Service Work
3.1.3 Replacing the Cover Fan [03056479-xx] Basic Machine
Service Manual SIPLACE SX4/DX4 35
3.1.3
3.1.3 Replacing the Cover Fan [03056479-xx]
Replacing the Cover Fan [03056479-xx]
Parts, equipment and tools
▪ Axial fan type 4414 FNN [03056479-xx]
▪ Sealing varnish Loctite 241 [02101037-xx]
Overview
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 12].
The fans are fastened to the cover plate, inside. First dismantle the cover plate:
► Loosen and unplug the connection cable (4).
► Loosen the 6 screws fastening the cover plate and remove the cover plate. Make sure that the wash-
ers and contact disks are not lost. You may want to mark their positions, to make clear assignment
easier later on.
► Loosen the four screws fastening the cover fan. Make sure that the washers are not lost.
► Unplug the cover fan connection cable and remove the cover fan from the machine.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:

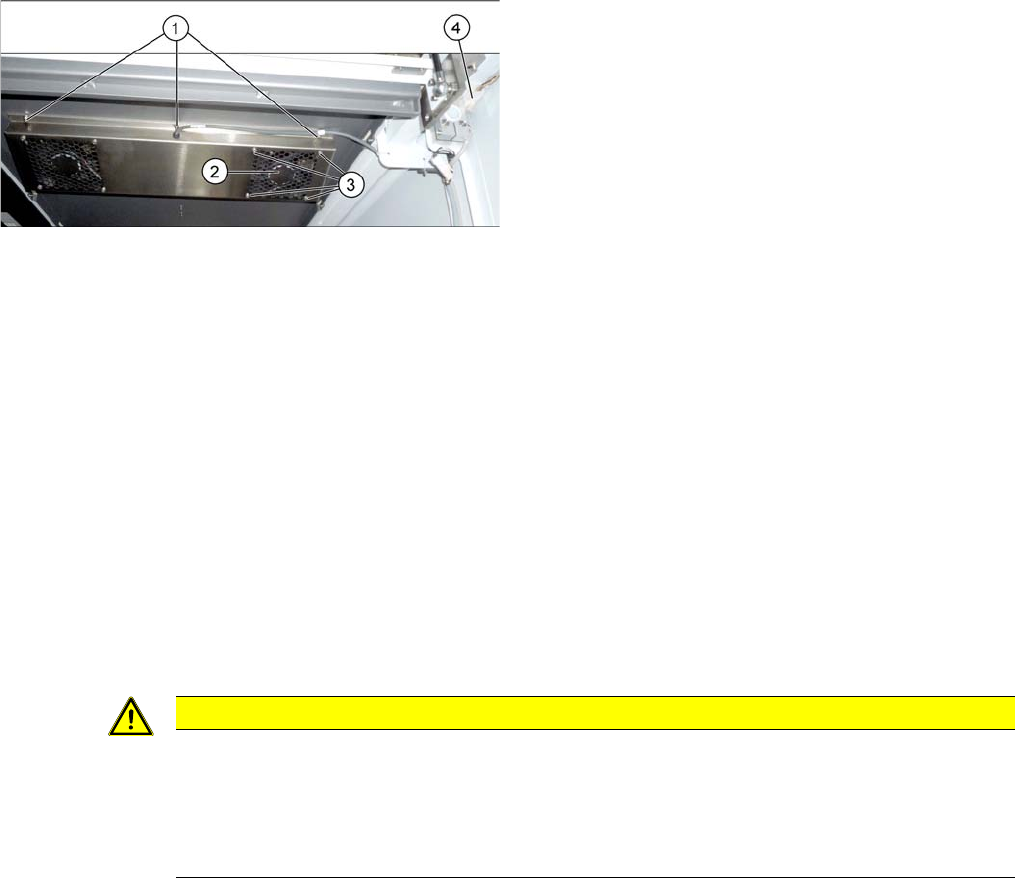

1. Screws for fastening the cover plate
2. Cover fan
3. Fastening crews for cover fan
4. Connection cable for cover fan
CAUTION
Installation instructions
► When fitting the fan, note the correct direction of the air blown. If necessary, you can use
the adjacent fan as a guide. The direction of air blown is shown by an arrow on the side of
the fan housing.
► Secure the six screws fastening the cover plate with Loctite 241.
