Service Work 3.1.3 Replacing the Cover Fan [03056479-xx] Basic Machine Service Manual SIPLACE SX4/DX4 35 3.1.3 3 . 1 . 3 R e p la c in g t h e C o v e r F a n [ 0 3 0 5 6 4 7 9 - x x ] Replacing the Cove r Fan [03056479-…

Service Work

Basic Machine 3.1.2 Replacing the Cover Switch [03055263-xx]

34 Service Manual SIPLACE SX4/DX4

3.1.2

3.1.2 Replacing the Cover Switch [03055263-xx]

Replacing the Cover Switch [03055263-xx]

Parts, equipment and tools

▪ Safety switch AZ 16-03zvrk-M16 3Oe [03055263-xx]

Overview

Removal

► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized

reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 12].

► Unplug the connection cable from the cover switch.

► Loosen the screws fastening the cover switch and remove the cover switch.

Installation

► Follow the removal instructions in reverse order for installation. Also observe the following instruc-

tions:

See also

 3.1.1 Replacing the Gas Pressure Shock Absorber on the Cover [03086743-xx] [ ➙ 31]

Cover switch (using example of SX1/SX2)

1. Cover switch

CAUTION

Installation instructions

► The cover switch must be set to the cover. Make sure that the cover switch is clean and

switches properly. The cover switch needs to be set so that even a minimal opening of the

cover will trigger the safety circuit.

► Switch the machine on and make sure that the cover switch activates the safety circuit,

when the protective covers are opened.

Service Work

3.1.3 Replacing the Cover Fan [03056479-xx] Basic Machine

Service Manual SIPLACE SX4/DX4 35

3.1.3

3.1.3 Replacing the Cover Fan [03056479-xx]

Replacing the Cover Fan [03056479-xx]

Parts, equipment and tools

▪ Axial fan type 4414 FNN [03056479-xx]

▪ Sealing varnish Loctite 241 [02101037-xx]

Overview

Removal

► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized

reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 12].

The fans are fastened to the cover plate, inside. First dismantle the cover plate:

► Loosen and unplug the connection cable (4).

► Loosen the 6 screws fastening the cover plate and remove the cover plate. Make sure that the wash-

ers and contact disks are not lost. You may want to mark their positions, to make clear assignment

easier later on.

► Loosen the four screws fastening the cover fan. Make sure that the washers are not lost.

► Unplug the cover fan connection cable and remove the cover fan from the machine.

Installation

► Follow the removal instructions in reverse order for installation. Also observe the following instruc-

tions:

1. Screws for fastening the cover plate

2. Cover fan

3. Fastening crews for cover fan

4. Connection cable for cover fan

CAUTION

Installation instructions

► When fitting the fan, note the correct direction of the air blown. If necessary, you can use

the adjacent fan as a guide. The direction of air blown is shown by an arrow on the side of

the fan housing.

► Secure the six screws fastening the cover plate with Loctite 241.

Service Work

Basic Machine 3.1.4 Guide Rollers on the Covers

36 Service Manual SIPLACE SX4/DX4

3.1.4

3.1.4 Guide Rollers on the Covers

Guide Rollers on the Covers

Parts, equipment and tools

▪ Per machine:

– 4x roller assembly - pack of 20 [03078561-xx]

– 4x DIN915-M8x16 - pack of 10 [00304354-xx]

4x DIN EN ISO4026-M8x16-A2-21H - pack of 10 [03025582-xx]

▪ Open-ended wrench, size 10

▪ Allen key

Procedure

► Open the two gantry changer doors and move the covers out of the guidance.

This makes the following work easier.

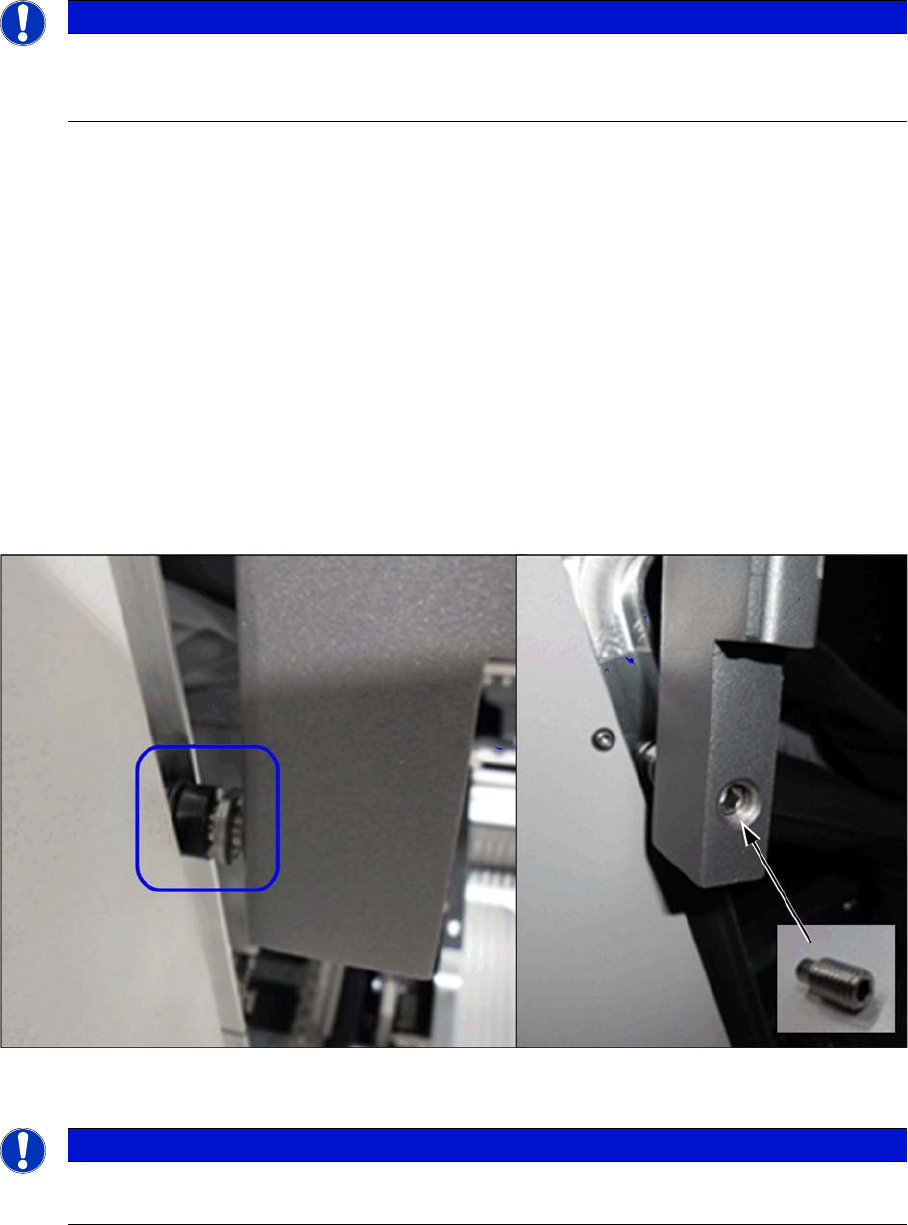

► Loosen the screwed fixture on the roller (fork wrench size 10). Unscrew as far as required.

► From the inside, screw on a setscrew as lock and tighten it.

Verification

► Check whether the cover can be easily moved along the whole area. Adjust the cover if necessary

(see "5.1.1 Setting the Machine Covers" [ ➙ 227]).
