Service Work
3.2.12 Replacing the Output Coupling Link (K7) [03065954-xx] Electrical System
Service Manual SIPLACE SX4/DX4 53
3.2.12
3.2.12 Replacing the Output Coupling Link (K7) [03065954-xx]
Replacing the Output Coupling Link (K7) [03065954-xx]
Parts, Equipment and Tools
▪ Output coupling link 24V AC/DC 1W [03065954-xx]
Overview
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 12].
► Unplug all connections to the output coupling link. You may want to mark their positions, to make
clear assignment easier later on.
► Take the output coupling link off the rail.
Installation
► Follow the removal instructions in reverse order for installation.
1. Output coupling link
Service Work
Electrical System 3.2.13 Replacing the Socket [00375320-xx]
54 Service Manual SIPLACE SX4/DX4
3.2.13
3.2.13 Replacing the Socket [00375320-xx]
Replacing the Socket [00375320-xx]
Parts, Equipment and Tools
▪ Socket, rail-mounted SD-D/SC/LA/GY [00375320-xx]
Overview
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 12].
► Unplug all connections to the socket. You may want to mark their positions, to make clear assign-
ment easier later on.
► Take the socket off the rail.
Installation
► Follow the removal instructions in reverse order for installation.
1. Socket
Service Work
3.2.14 Replacing the SP Splitter (A10) [03076607-xx] Electrical System
Service Manual SIPLACE SX4/DX4 55
3.2.14
3.2.14 Replacing the SP Splitter (A10) [03076607-xx]
Replacing the SP Splitter (A10) [03076607-xx]
Parts, Equipment and Tools
▪ SP splitter [03076607-xx]
▪ 12x microfuse 5x20/T6.3A/ceramic [03010626-xx] (supplied – see machine service box)
Overview
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 12].
► Loosen the screws fastening the mesh cover on the SP splitter and then remove the mesh cover.
► Unplug all electrical connections to the SP splitter. Mark their positions, to make clear assignment
easier later on.
► Loosen the screws fastening the SP splitter and then remove this.
Installation
► Follow the removal instructions in reverse order for installation.

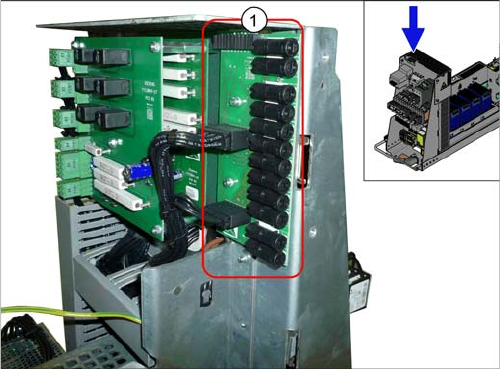

1. SP splitter (A10)
