Service Work
Electrical System 3.2.15 Replacing the Microfuse (F40 to F51) [03010626-xx]
56 Service Manual SIPLACE SX4/DX4
3.2.15
3.2.15 Replacing the Microfuse (F40 to F51) [03010626-xx]
Replacing the Microfuse (F40 to F51) [03010626-xx]
Parts, equipment and tools
▪ Microfuse 6.3A T / 150 VDC [03010626-xx]
Overview
Removal
► Use a suitable screwdriver to turn the fuse holder out of its socket.
► Remove the old microfuse from the fuse holder and replace this with a new microfuse of the same
type.
Installation
► Follow the removal instructions in reverse order for installation.
See also
5.2.1 Overview of Electrics [ ➙ 233]
NOTICE
Fuses
A fuse kit for the power supply is included with the delivery of the machine in a separate pack-
age or may be in the power supply.

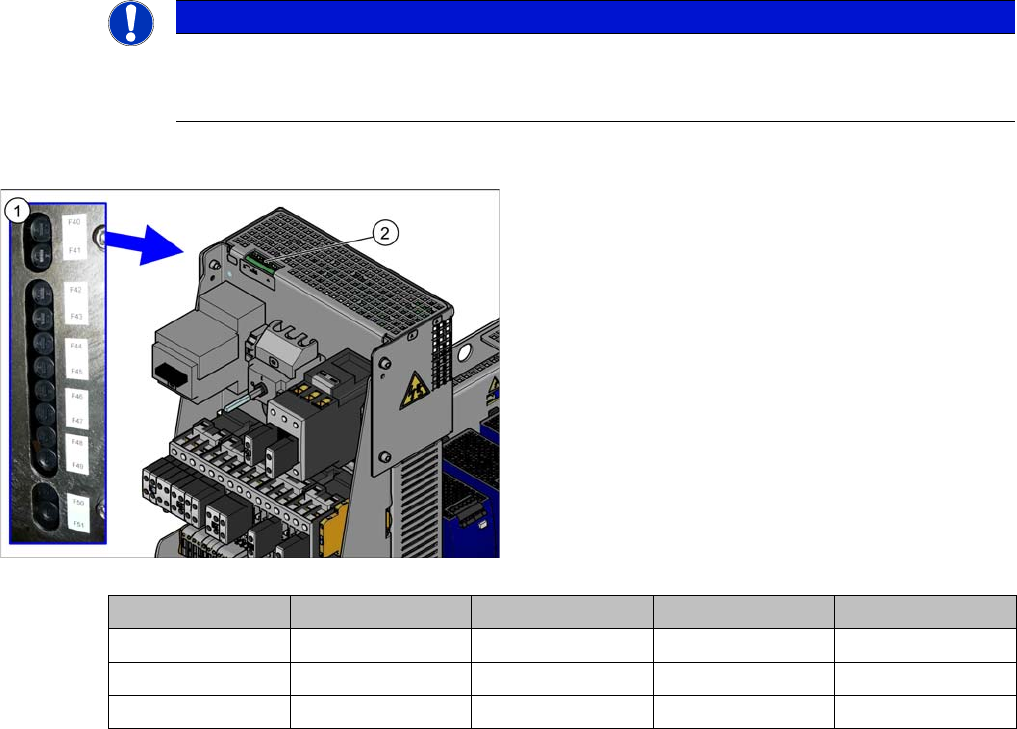

1. Microfuses F40 to F51
2. LED D40 to D51
The LEDs show the operational readiness of the individ-
ual microfuses.
Voltage Gantry 1 Gantry 2 Gantry 3 Gantry 4
+150V F40 F42 F43 F41
+42V F44 F46 F47 F45
+24V F48 F50 F51 F49
Service Work
3.3.1 Replacing the Control Computer BoxPC Control
Service Manual SIPLACE SX4/DX4 57
3.3
3.3 Control
Control
3.3.1
3.3.1 Replacing the Control Computer BoxPC
Replacing the Control Computer BoxPC
Parts, equipment and tools
▪ SX4: BoxPC 827B, 1 GB RAM [03069632-xx]
▪ DX4: BoxPC 627B with hotlink cable, 2 GB RAM [03055300-xx]
▪ X series S: Control computer BoxPC 827C [03094732-xx] or
Control computer BoxPC 627C [03094731-xx] (as option for 3D coplan)
Overview
CAUTION
Plug-in card
The BoxPC is supplied without the following parts. These must be removed from the old Box
PC and fitted in the new one or ordered as new parts.
► Hotlink interface PCI-A24-K01 (1x, with stationary camera 2x) [03052135-xx]
► CAN card PowerCAN-PCI (1x) [03052590-xx]
► Working memory SO-DIMM DDR2 667 1024MB (1x)

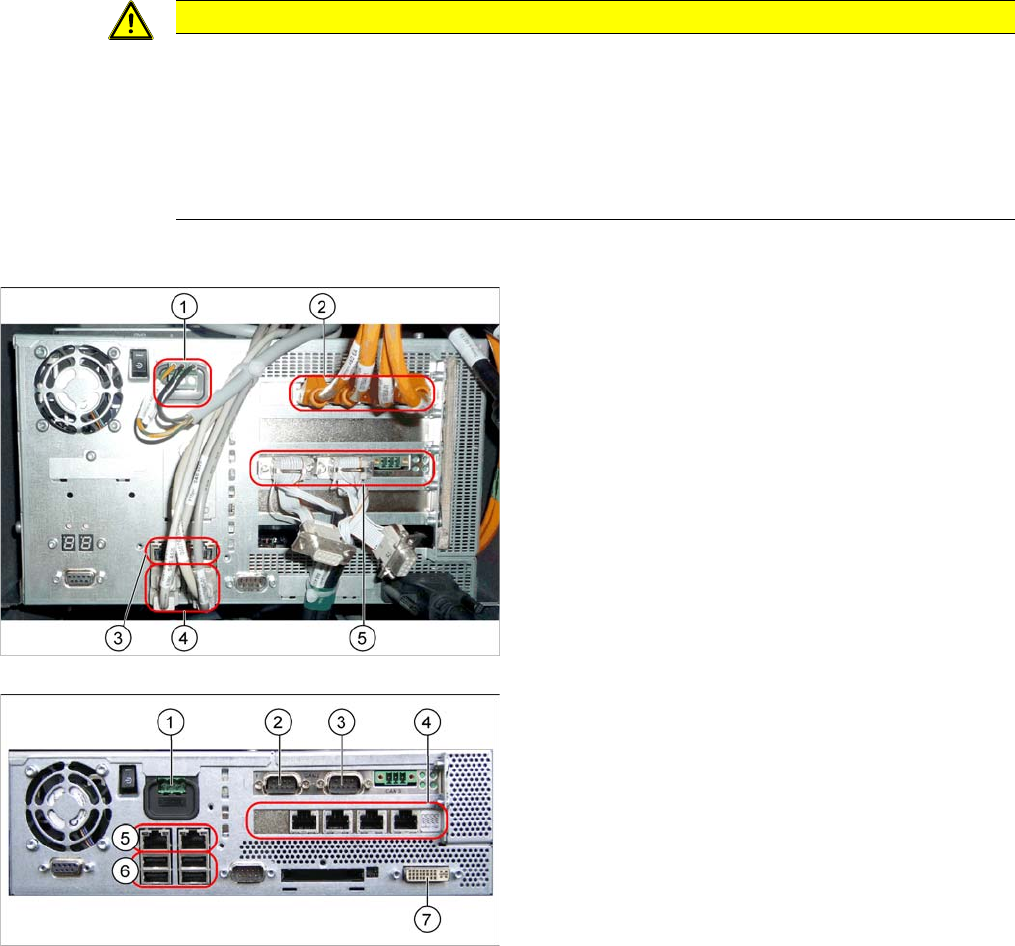

BoxPC 827C (SX4/DX4, X series S)
The BoxPC is located in a rack unit between locations 1
and 2.
1. Power supply
2. Hotlink interface
Depending on the placement heads used, there are
either one or two hotlink interfaces fitted.
One hotlink interface: if only C&P20 heads are fitted.
Two hotlink interfaces: all other placement head con-
figurations
3. LAN connections
4. USB connections
5. CAN card
Example of BoxPC 627B
BoxPC 627C (SX1/SX2/DX1/DX2, 3D coplan)
1. Power supply DC 24 V
2. CAN 1
3. CAN 2
4. Hotlink card
5. LAN connections
6. USB connections
7. DVI/VGA monitor connection
Service Work
Control 3.3.1 Replacing the Control Computer BoxPC
58 Service Manual SIPLACE SX4/DX4
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 12].
► Unplug all press-fit connections to the BoxPC. Mark their positions, to make clear assignment easier
later on.
► The BoxPC is fixed to the machine with Velcro. Release the BoxPC from the Velcro and remove it
from the machine.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:
CAUTION
Installation instructions
► The new BoxPC is supplied without a CAN card, hotlink interface or memory extension to
2 GB. You will need to take these from the old BoxPC and fit them in the new one. (See
"3.3.2 Replacing the CAN Card [03079973-xx]" [ ➙ 59],
"3.3.3 Replacing the Hotlink Interface Card [03052135-xx]" [ ➙ 60] and
"3.3.4 Replacing the BoxPC Memory Extension [03086337-xx]" [ ➙ 61])
► The BoxPC needs to be installed after it has been fitted. (See the following instructions)

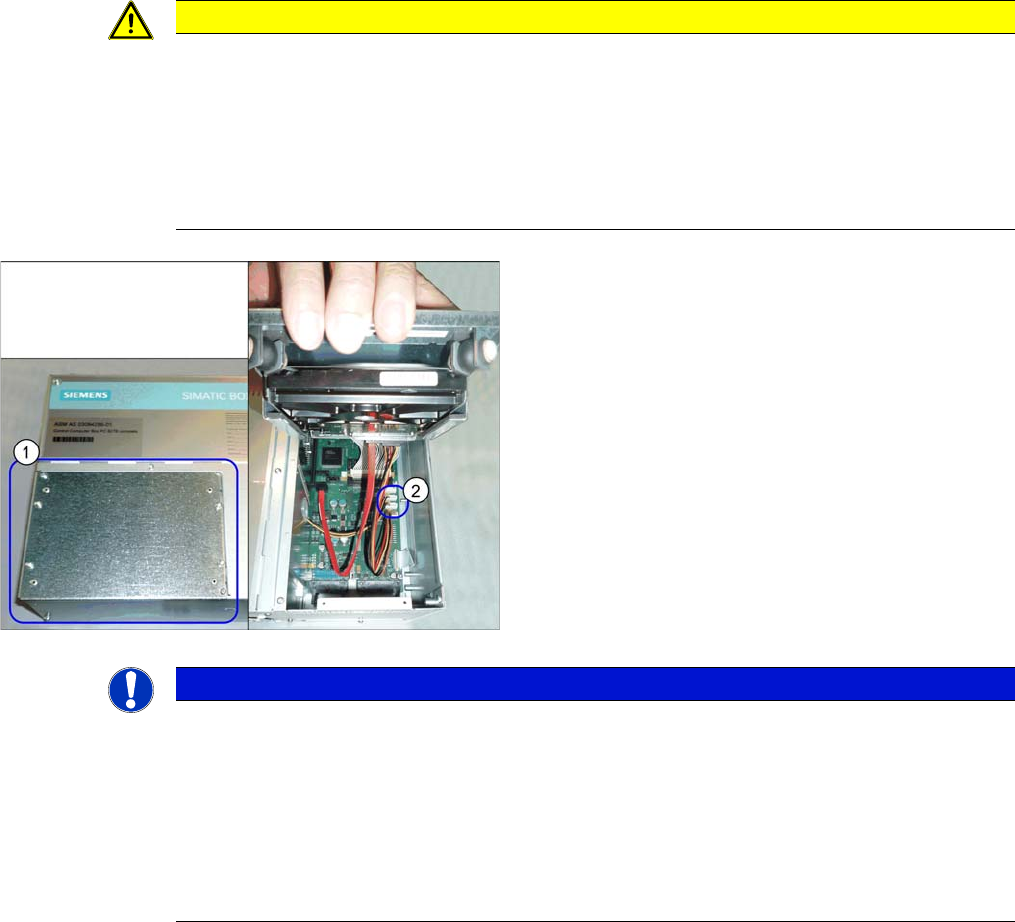

Hotlink interface power cable
► The hotlink interface power cable [03042074-xx] (2)
needs to be taken from the old BoxPC and fitted in the
new one. To gain access to this cable, loosen and
open the cover (1) on the hard drive.
NOTICE
Installing the BoxPC
► The BoxPC needs to be installed after it has been fitted. Read the relevant installation
guide:
- "Windows Embedded Standard 7" [00197366-xx]
- "Windows XP Embedded" [00196737-xx]
► BIOS update and setting images are no longer included on the station software CD.
The CDs for the BIOS settings are only available via the SIPLACE Software Download
Center (SDC).
