Service Work Conveyor 3.6.1 Loosening the Conveyor Side Clamps 98 Service Manual SIPLACE SX4/DX4 You can now move the sides. Restoring the clamp ► Follow the removal in structions in reverse order for installati o n. Als…
Service Work
3.6.1 Loosening the Conveyor Side Clamps Conveyor
Service Manual SIPLACE SX4/DX4 97
3.6.1.2
3.6.1.2 Moving the Conveyor Sides by Manually Releasing the Side Clamps
Moving the Conveyor Sides by Manually Releasing the Side Clamps
0220 - Parts etc. - SXDX4
Parts, equipment and tools
▪ Depending on your clamping version, you may need the following per side:
3x ISO4762-M3x35-A2-70 [03043114-xx] or
3x ISO8734-3x30-A-ST [03015760-xx]
Procedure
► Move the conveyor sides to a position which gives you good access to the clamps.
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 12].
► Repeat these steps for all clamps on the sides concerned.
NOTICE
Marking the starting positions
After completing this task, it is helpful to move the conveyor sides back to their approximate
starting positions.
► You may want to mark the current positions of the conveyor sides.
Do not mark the clamping surface or the guide rails.
CAUTION
Loosen all clamps
You always need to loosen all clamps for one conveyor side.

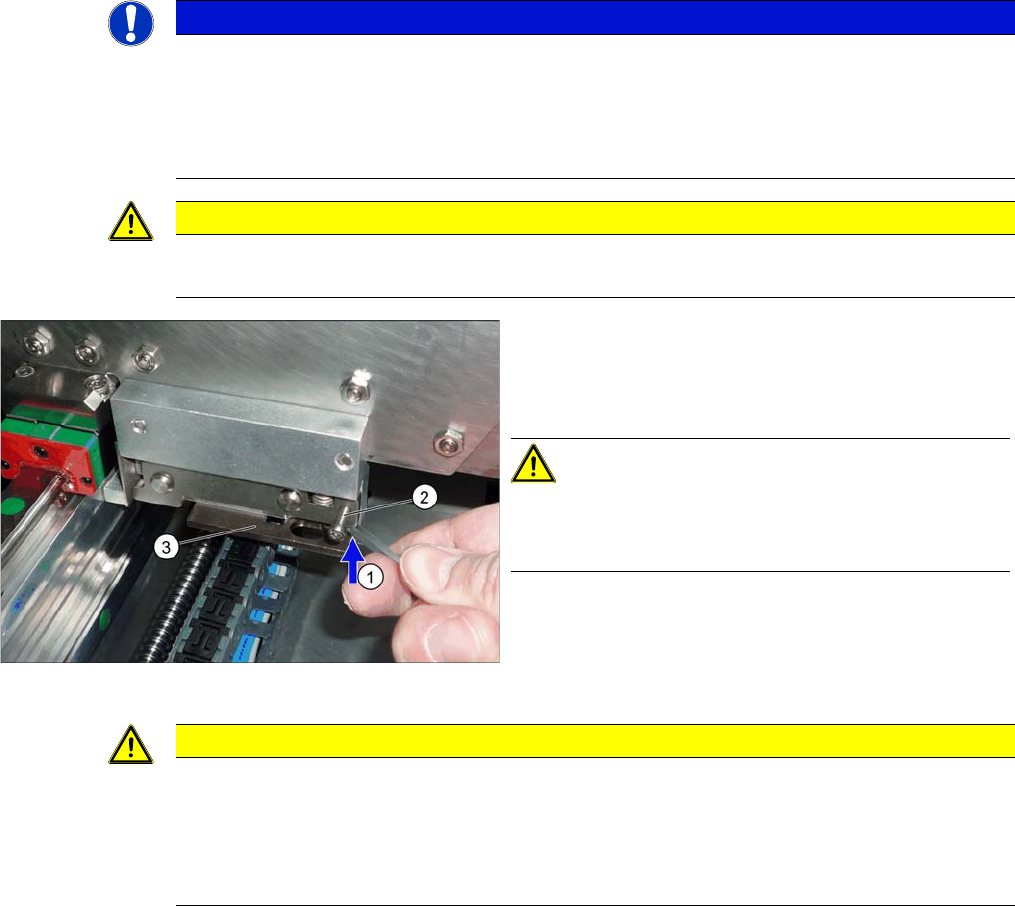

► Loosen the conveyor side clamps.
To do this, press the clamp (1) (e.g. with a screwdriv-
er) upwards and turn or insert a screw (M3x16) into
the hole (2).
CAUTION!
Make sure that you do not distort the guide plate (3). If
you do, this could lead to problems with recognizing the
position of the conveyor side.
CAUTION
Always loosen all clamps for one conveyor side!
► Always loosen all clamps for one conveyor side!
SX1/SX2/DX1/DX2: 2 clamps per conveyor side
SX4/DX4/X series S: 3 clamps per conveyor side.
► If you do not loosen all clamps for the conveyor side, this could be easily damaged.
Service Work
Conveyor 3.6.1 Loosening the Conveyor Side Clamps
98 Service Manual SIPLACE SX4/DX4
You can now move the sides.
Restoring the clamp
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:
CAUTION
Moving the sides
► When the clamp is manually loosened, make sure that you only move the conveyor sides
by pushing against the clamping units.
► Make sure that you always move the conveyor sides parallel.
► Take care not to distort or trap the conveyor sides when pushing!
CAUTION
Installation instructions
► After completing the work, push the conveyor sides back into their approximate starting po-
sition.
► Make sure that the conveyor sides are back in their original positions after switching on.
► Perform a reference run.
► Perform side calibration for the fixed side on the left and right. If you do not, not all conveyor
sides will be calibrated.
This calibration is needed to ensure that the conveyor sides are positioned correctly.
► Conveyors for SX1/SX2 V2 only: calibrate the PCB sensors.
► Use a board to test the parallelism. This board must be transported evenly through the en-
tire conveyor. (See also Setting the Parallelism of the Conveyor Sides)
► Re-establish the original conveyor configurations:
For more information, go to Service menu - Conveyor configuration - Set options for con-
veyor fixed rail.
Select one of the positions and click on the Adjust configuration button.
Then reset the conveyor sides to the previous configuration.
Service Work
3.6.2 Manual Removal of Large Boards Conveyor
Service Manual SIPLACE SX4/DX4 99
3.6.2
3.6.2 Manual Removal of Large Boards
Manual Removal of Large Boards
In some cases (e.g. for mapping) you may need to remove large boards manually from the conveyor.
Parts, Equipment and Tools
▪ Metal ruler or angle bracket
Procedure
► Move the conveyor rail back to the innermost position and retighten the fastening screws. Also ob-
serve the following instructions:
► Loosen the screws fastening the conveyor rail (1).
However, do not fully remove the screws.
► Move the conveyor rail within its slot from the inner-
most (2) to the outermost (3) position.
► Remove the board.
CAUTION
Installation instructions
► Make sure that the conveyor rail is flush with the clamping plate. There should be no pro-
jecting edge. Components on the boards could collide with clamping rails which are not
flush or could be irrevocably damaged during clamping. Check the fit with a metal ruler or
angle bracket.
