Service Work
Conveyor 3.6.1 Loosening the Conveyor Side Clamps
98 Service Manual SIPLACE SX4/DX4
You can now move the sides.
Restoring the clamp
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:
CAUTION
Moving the sides
► When the clamp is manually loosened, make sure that you only move the conveyor sides
by pushing against the clamping units.
► Make sure that you always move the conveyor sides parallel.
► Take care not to distort or trap the conveyor sides when pushing!
CAUTION
Installation instructions
► After completing the work, push the conveyor sides back into their approximate starting po-
sition.
► Make sure that the conveyor sides are back in their original positions after switching on.
► Perform a reference run.
► Perform side calibration for the fixed side on the left and right. If you do not, not all conveyor
sides will be calibrated.
This calibration is needed to ensure that the conveyor sides are positioned correctly.
► Conveyors for SX1/SX2 V2 only: calibrate the PCB sensors.
► Use a board to test the parallelism. This board must be transported evenly through the en-
tire conveyor. (See also Setting the Parallelism of the Conveyor Sides)
► Re-establish the original conveyor configurations:
For more information, go to Service menu - Conveyor configuration - Set options for con-
veyor fixed rail.
Select one of the positions and click on the Adjust configuration button.
Then reset the conveyor sides to the previous configuration.
Service Work
3.6.2 Manual Removal of Large Boards Conveyor
Service Manual SIPLACE SX4/DX4 99
3.6.2
3.6.2 Manual Removal of Large Boards
Manual Removal of Large Boards
In some cases (e.g. for mapping) you may need to remove large boards manually from the conveyor.
Parts, Equipment and Tools
▪ Metal ruler or angle bracket
Procedure
► Move the conveyor rail back to the innermost position and retighten the fastening screws. Also ob-
serve the following instructions:

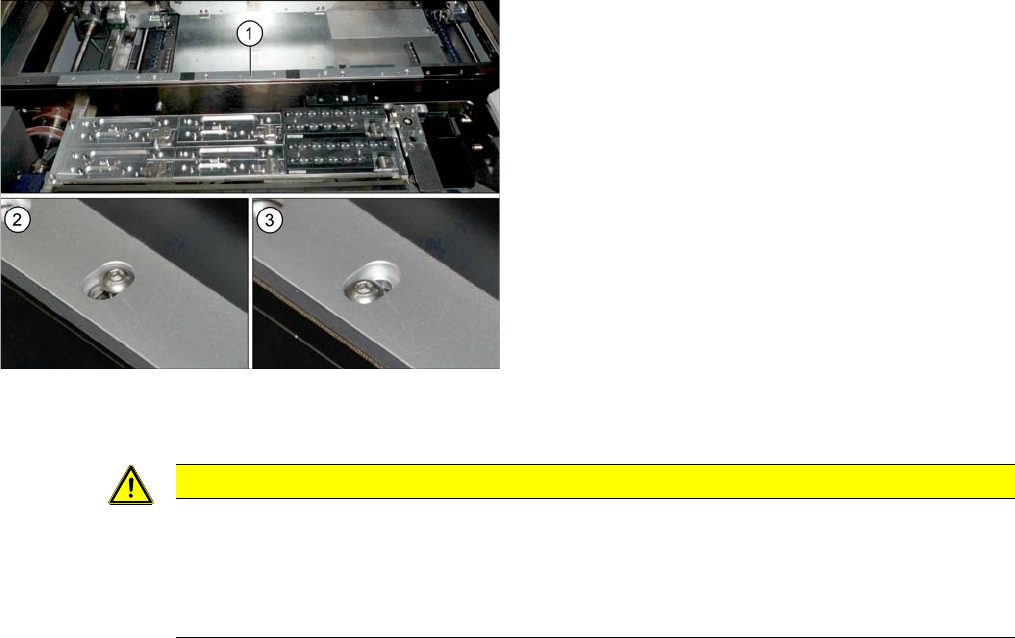

► Loosen the screws fastening the conveyor rail (1).
However, do not fully remove the screws.
► Move the conveyor rail within its slot from the inner-
most (2) to the outermost (3) position.
► Remove the board.
CAUTION
Installation instructions
► Make sure that the conveyor rail is flush with the clamping plate. There should be no pro-
jecting edge. Components on the boards could collide with clamping rails which are not
flush or could be irrevocably damaged during clamping. Check the fit with a metal ruler or
angle bracket.
Service Work
Conveyor 3.6.3 Replacing the Clamps
100 Service Manual SIPLACE SX4/DX4
3.6.3
3.6.3 Replacing the Clamps
Replacing the Clamps
Parts, equipment and tools
▪ Clamping unit SX4 1.1 [03084719-xx]
▪ Clamping unit SX4 2.1 [03084754-xx]
Removal
► Use the software to move the conveyor sides into the position which allows you best access.
► You may need to loosen the conveyor trolley sides, if this gives you better access. (see "3.6.1 Loos-
ening the Conveyor Side Clamps" [ ➙ 95]).
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 12].

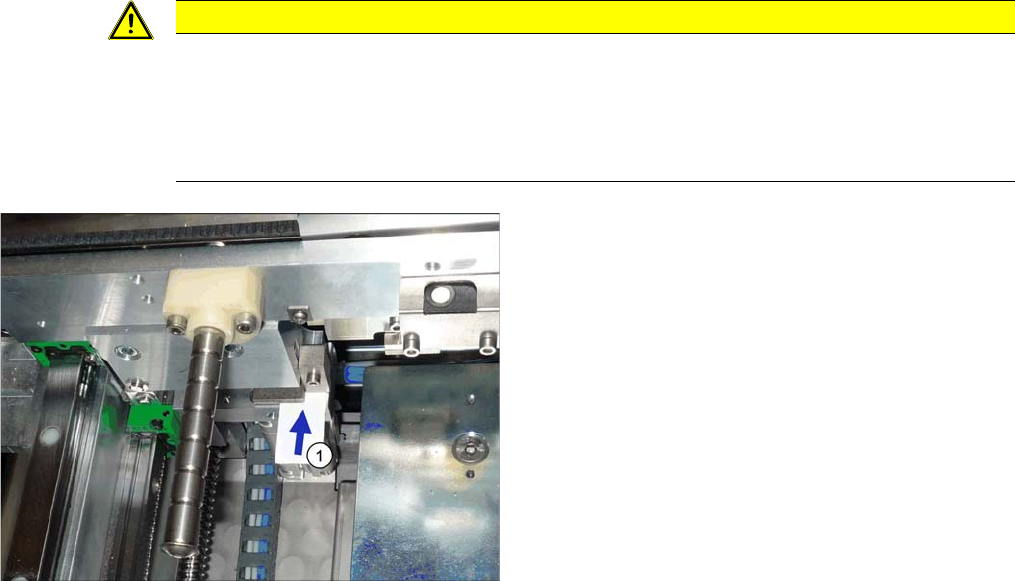

► Loosen the clamp on the clamping unit with a pin or a 3mm screw. (See above)
► Dismantle the clamping unit.
Installation
Installation is performed by following the above instructions in the reverse order. Also observe the fol-
lowing instructions:
CAUTION
Installation instructions
► During installation, you need to set a gap of 0.3 mm between the clamping unit (fixed with
a pin or a 3 mm screw) and the clamping surface. Check this gap with a feeler gauge (see
following diagram).
► Remove all pins from the conveyor edge clamps.
1. The gap between the clamping unit and the clamping
surface must be 0.3 mm.
