Power supply
Page 4 / 6 24.11.2021
Power supply
Page 5 / 6 24.11.2021
Pos. Item no. Description Part marking
1 00336145S06 POWER SUPPLY UNIT HS50 Spare Part
2 00345634-01 TRANSFORMER 11.1 KVA
3 00359214-01 MAIN SWITCH EM. STOP C32 3POL
50A RD/YE
SPARE PART
4 00307161-01 AUTO CIRCUIT BREAKER
5SX2/1POLE/4A-AC
Spare Part
5 00302817S01 AUTOMATIC CIRCUIT BREAKER
5SX2/3P/4A-AC
Spare Part
6 00341203S01 AUTOMATIC CIRCUITE BREAKER
5SX2
Spare Part
7 00341204S01 AUTOMATIC CIRCUITE BREAKER
5SX2
SPARE PART
8 00341205S01 AUTOMATIC CIRCUITE BREAKER
5SX2
Spare Part
9 00341206S01 AUTOMATIC CIRCUITE BREAKER
5SX2
SPARE PART
10 00310685-01 AUTO CIRCUIT BREAKER
5SX2/1POLE/1A-AC
SPARE PART
11 00341207-01 CONTACTOR 3RT10 / 24VDC / SIZE
S2
SPARE PART
12 00341208-01 CONTACTOR 3RT10 / 24VDC / SIZE
S0
SPARE PART
13 00341209-01 CONTACTOR 3RT23 / 24VDC /
2S-2OE
SPARE PART
14 00342396S01 INTERFER. SUPPR. DIODE
F.CONTACT.DC24-70
SPARE PART
15 00341210-01 AUXILIARY SWITCH BLOCK
3RH1/1POLE/1NC
SPARE PART
16 00341221-01 AUXILIARY SWITCH BLOCK
3RH1/1POLE/1NO
SPARE PART
17 00342494S01 PROTECTIVE MOTOR SWITCH
PKZ2/3POL/40A
SPARE PART
18 00342495S01 ENGINE PROTEC.- RELEA.BLOCK
ZM-16-PKZ2
Spare
19 00342496-01 MOTOR PROTECT. RELEASE BLOCK
ZM-32-PKZ2
Spare Part
20 00342491S01 POWER SWITCH 3RV10 / 0,45-0,63A SPARE PART
21 00342397S01 MAINS FILTER FOR 3-PHASEN-
SYSTEM 36A
Spare
22 00341246-01 RECTIFIER S101-B6U 160-08 SPARE PART
23 00341244S01 RECTIFIER S61-B2U 28-02 SPARE PART

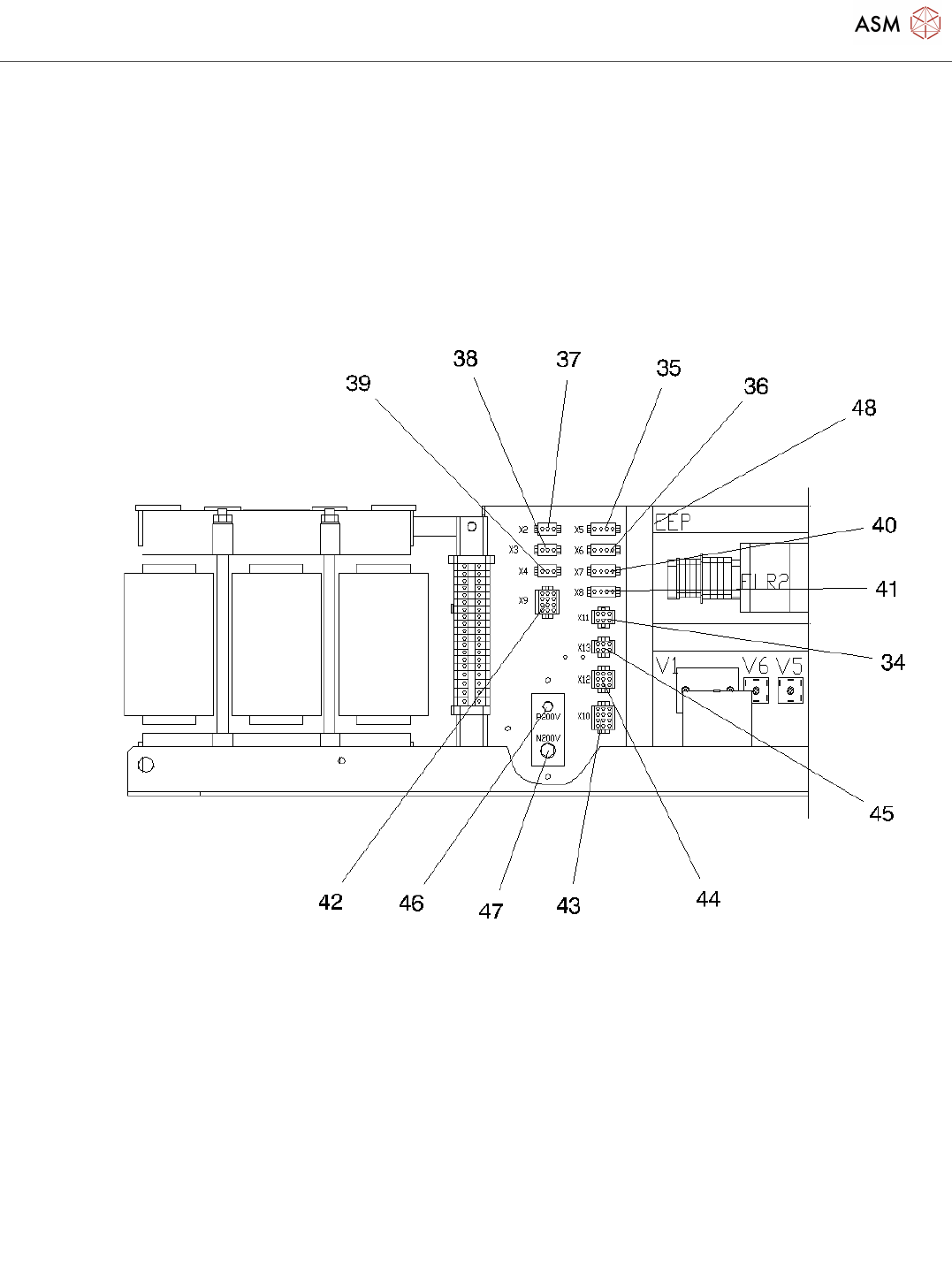

Power supply
Page 6 / 6 24.11.2021
Pos. Item no. Description Part marking
24 00341245S01 RECTIFIER S63-B6U 28-02 SPARE PART
25 00341222S01 SAFETY CONTACTOR 3TK28 24VDC
5NO-1NC
SPARE PART
26 00348352-01 ELECTROLYTIC CAPACITOR
33000UF/63V
SPARE PART
27 00341831S03 INRUSH CURRENT LIMITER
BRW3TG31033-01
SPARE PART
28 00341835S01 BOARD ELR TC31034-01 Spare Part
29 00344136-04 BASIC HOUSING FOR POWER
SUPPLAY HS50
30 00336137-02 PRESSURE ANGLE
31 00845075-01 HEXAGON SOCKET HEAD CAP
SCREW M8*16
32 00095475-01 WASHER 8.4
00337852-02 CABLE: TREE SET POWER SUPPLY
HS50
*
34 00337796-02 CABLE HS50:CTRL.SIGN.LIFT.TABLE
MTR EXT.
35 00333594-01 CABLE LIFTING TABLE MOTOR
PLACEM. AREA 1
36 00333595-01 CABLE LIFTING TABLE MOTOR
PLACEM. AREA 2
37 00335211-01 CABLE HS50: POWER PC
38 00335212-01 CABLE HS50: POWER MONITOR 1
39 00335213-01 CABLE HS50: POWER MONITOR 2
40 00336121-01 CABLE LIFTING TABLE MOTOR
PLACEM. AREA 3
41 00336122-01 CABLE LIFTING TABLE MOTOR
PLACEM. AREA 4
42 00337056-02 CABLE HS50: SERVO UNIT/POWER
SUPPLY/SEC4
43 00335219-01 CABLE HS50: UNREGULATED DC-
VOLTAGE
44 00335221-02 CABLE HS50: TRACK SIGNALS
POWER SUPPLY
45 00335223-01 CABLE HS50: SSK PERIPHERY
46 00335224-02 CABLE HS50: POWER PXY
47 00335225-02 CABLE HS50: POWER NXY
48 00335226-02 CABLE HS50: MAIN GROUND
