2 Assembly instructions Special design for manual tray at lo cation 2 SIPLACE D1 Special Design 05/2007 Edition 20 2.7.2 Adjusting the limit swit ch for the conveyor width : Open the mini output flap. : Remove the covers…
Special Design 2 Assembly instructions Special design for manual tray at location 2 SIPLACE D1
05/2007 Edition
19
: Fit the tray holder to location 2 using the two M5 x 30mm screws.
2
: Insert the reject bin again.
Tray holder assembly with M5 x 30mm screws
2 Assembly instructions Special design for manual tray at location 2 SIPLACE D1 Special Design
05/2007 Edition
20
2.7.2 Adjusting the limit switch for the conveyor width
: Open the mini output flap.
: Remove the covers from the conversion board at the output conveyor.
2
2
: Disassemble the bracket for the right limit switch removing 2 screws.
2

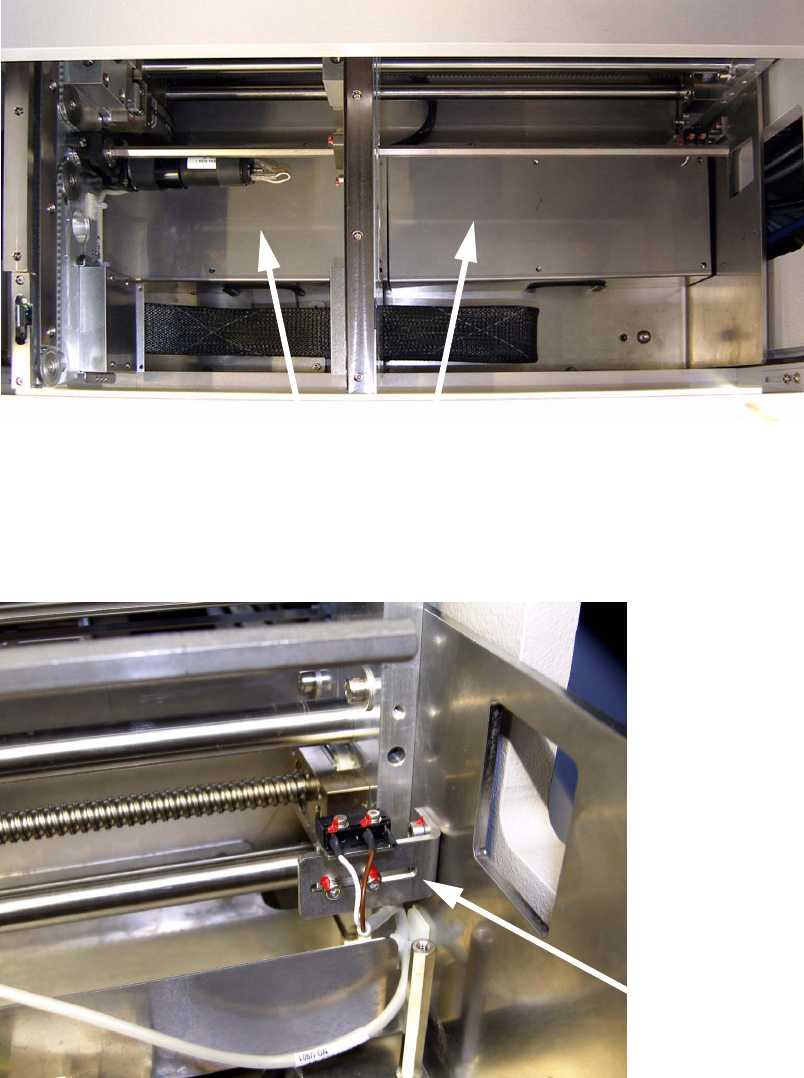

Covers of conversion board
Bracket
Special Design 2 Assembly instructions Special design for manual tray at location 2 SIPLACE D1
05/2007 Edition
21
: Disassemble the limit switch from the bracket.
2
: Disassemble the bracket for the left limit switch removing the two screws.
2
Disassemble the bracket
Bracket
