Page HANWHA TECHWIN 102 SM451DH X- Frame Ass’y (1/2) 1 8 8 A 12 11 3 5 4 6 7 9 10 2
Page
HANWHA TECHWIN
101
SM451DH
Air Ass’y (8/8)
NO. LEVEL PART NO. PART NAME Q'TY Old No. Old No. Stock Apply Reference
1 FC09-000107A BRACKET-POWER REAR;ME1:Steel 2
2 HP06-900179 FITTING KCE06-00 1
3 HP04-900027 MIST_SEPARATOR_ASSY 1
4 HP04-900041 OIL_FILTER AM08-T2-CR00-J387A 1
5 HP09-900118 REGULATOR HP09-900118 1
6 HP09-900123 REGULATOR AR08-T2-D0M0-J346A 1
7 FC09-000105A BRACKET-AIR REAR;ME1:Steel 1
8 J90831419B HEAD_AIR_SOL_CABLE_ASSY 2
9 HP06-900087 MIST_FITTING SQV12-04S 2
10 HP06-900026 ELBOW FITTING PL12-04/SQL12-04S-W 6
11 HP04-900025 ELEMENT_AIR TAF4000-05-6000 1
12 HP04-900024 ELEMENT_SEPARATOR PFH4000-0005A-6083 1
Page
HANWHA TECHWIN
102
SM451DH

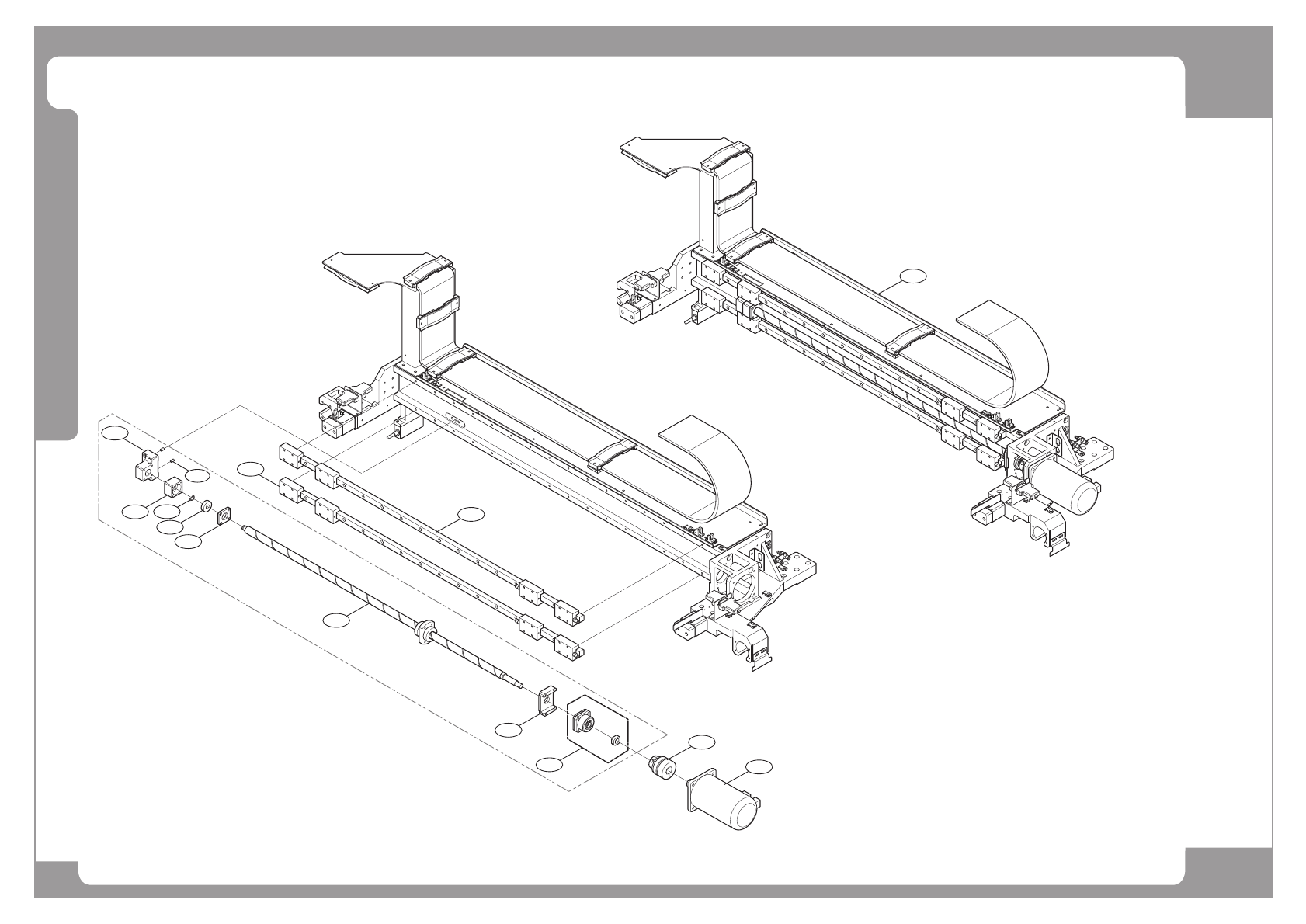

X- Frame Ass’y (1/2)
1
8
8
A
12
11
3
5
4
6
7
9
10
2
Page
HANWHA TECHWIN
103
SM451DH
X- Frame Ass’y (1/2)
NO. LEVEL PART NO. PART NAME Q'TY Old No. Old No. Stock Apply Reference
A-1 J90541070A X-BALL_SCREW_MODULE J90541070A 1
1 J71541009A BRG SUPPORT-X 1
2 FC18-901170 PINDOWEL 2
3 J71541010A BRG HOUSING-X 1
4 FC18-901667 C-RING [10mm (SHAFT)] 1
5 MC03-900023 BALL BEARING 1
6 J72541033A CUSHION_X_REAR J72541033A 1
7 MC13-900161 X-BALL_SCREW HG1632QS-HEZR-0874*0801-C5F 1
8 MC13-900032 LM_GUIDE-X SSR15XW2UUC1+940LHY-2 2
9 FC29-004428A CUSHION_X_FRONT 1 J72541003A
10 MC04-900012 SUPPORT_UNIT FK12-MP5 1
11 EP08-900122 SERVO MOTOR(MSMA082P1A01) 1
12 FC14-900236 COUPLING[SFC 040DA 10B-19B (Old No. B)] 1
