Page HANWHA TECHWIN 107 SM451DH Y- Frame Ass’y (1/2) NO. LEVEL P ART NO. P ART NAME Q'TY Old No. Old No. St o c k Apply Refere nce 1 EP08-90012 3 SERVO MOT OR(MSMA102P1C01) 2 2 FC14-900237 COUPLING[SFC 050DA 12B-1 9…

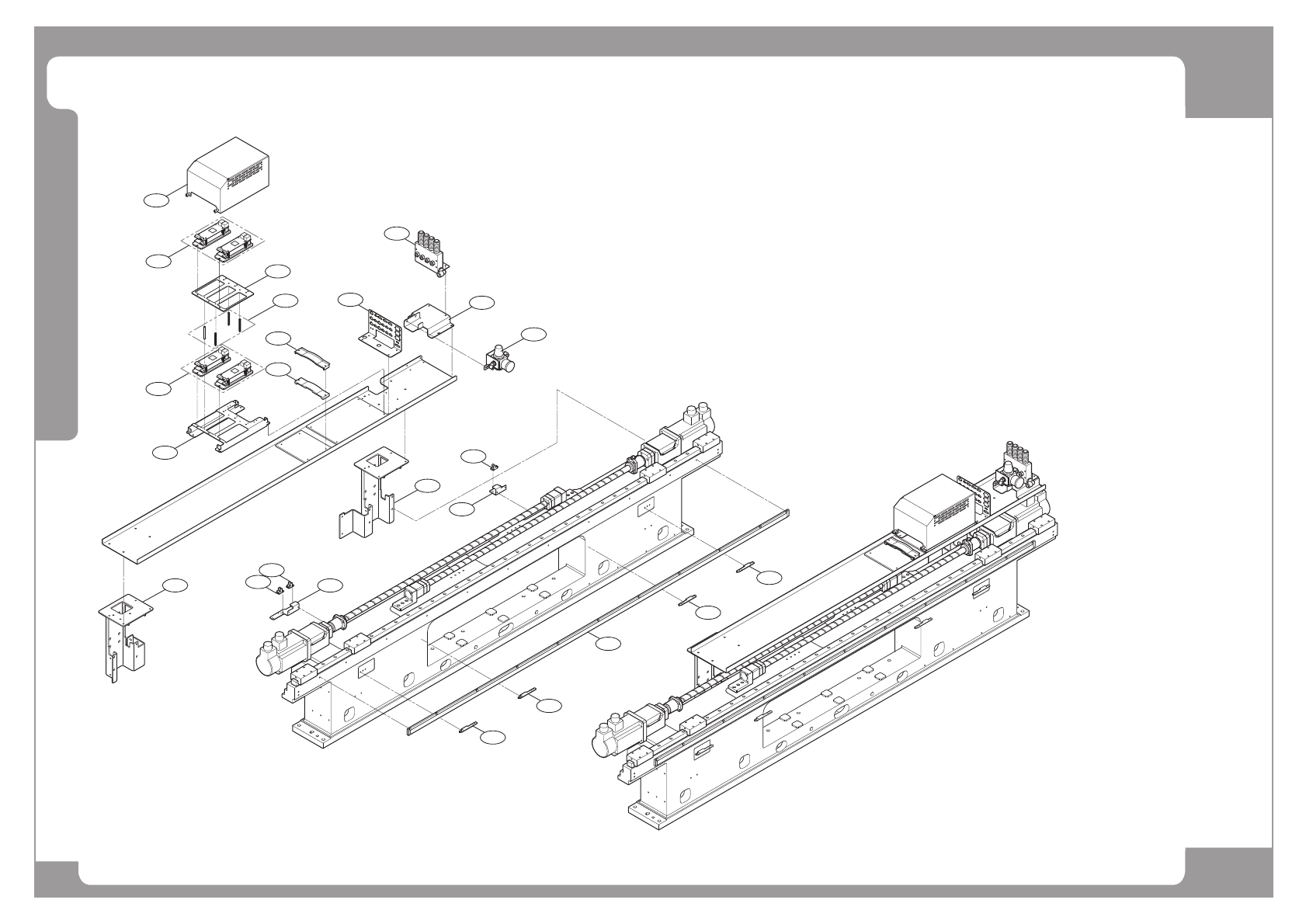

Page
HANWHA TECHWIN
106
SM451DH
Y- Frame Ass’y (1/2)
6
7
10
13
13
14
15
15
16
17
18
19
11
12
5
3
1
8
4
2
9
Page
HANWHA TECHWIN
107
SM451DH
Y- Frame Ass’y (1/2)
NO. LEVEL PART NO. PART NAME Q'TY Old No. Old No. Stock Apply Reference
1 EP08-900123 SERVO MOTOR(MSMA102P1C01) 2
2 FC14-900237 COUPLING[SFC 050DA 12B-19B(Old No. A)] 2
3 EP08-900123 SERVO MOTOR(MSMA102P1C01) 2
4 J70541005C Y_MOTOR_BLOCK 2
5 MC04-900028 SUPPORT UNIT[FK-15] 2
6 J72541006A STOPPER_Y_BALL_SCREW_FRONT J72541006A 2
7 MC13-900173 BALL_SCREW SBK2030ZS-3.4GT+1230LC5 2
8 MC13-000017 LM GUIDE-LM GUIDE-Y SSR25XWY4UUE+2090LY 1
9 FC39-000070B FRAME-Y_SM451DH;GCD450-10 1
10 J70541122B BRG_OUTER_SPACER 1
11 FC18-900917 BEARING NUT[RN15] 1
12 J70541006C BS_REAR_SUPPORT 1
13 MC03-900010 BEARING [6802zz] 2
14 AM04-000020A ASSY,IT,HOUSING-BEARING HOUSING Y 1
15 FC30-000078A PLATE-STOPPER EXT Y BALLSCREW 2
16 FC07-001717A BLOCK-12_5 Y SPACER VD 2 SAMSUNG ELEC OPTION
17 FC07-001688A BLOCK-354_5 Y STROKE VD 2 SAMSUNG ELEC OPTION
18 FC09-004611A BRACKET-PLUS LIMIT VD 2 SAMSUNG ELEC OPTION
19 EP19-900114 SENSOR 2 OPTION
Page
HANWHA TECHWIN
108
SM451DH
Y- Frame Ass’y (2/2)
19
6
16
16
16
8
18
2
9
17
7
15
20
3
14
14
12
12
13
1
4
4
11
5
