Page HANWHA TECHWIN 131 SM451DH Electric Device Ass’y (2/2) NO. LEVEL P A RT NO. P ART NAME Q'TY Old No. Old No. St oc k Apply Reference 1 J705101 1 1C BOARD COVER 1 2 J91741076A CONV_SUB_IF_BOARD VER 1.0 1 3 J70510…
Page
HANWHA TECHWIN
130
SM451DH

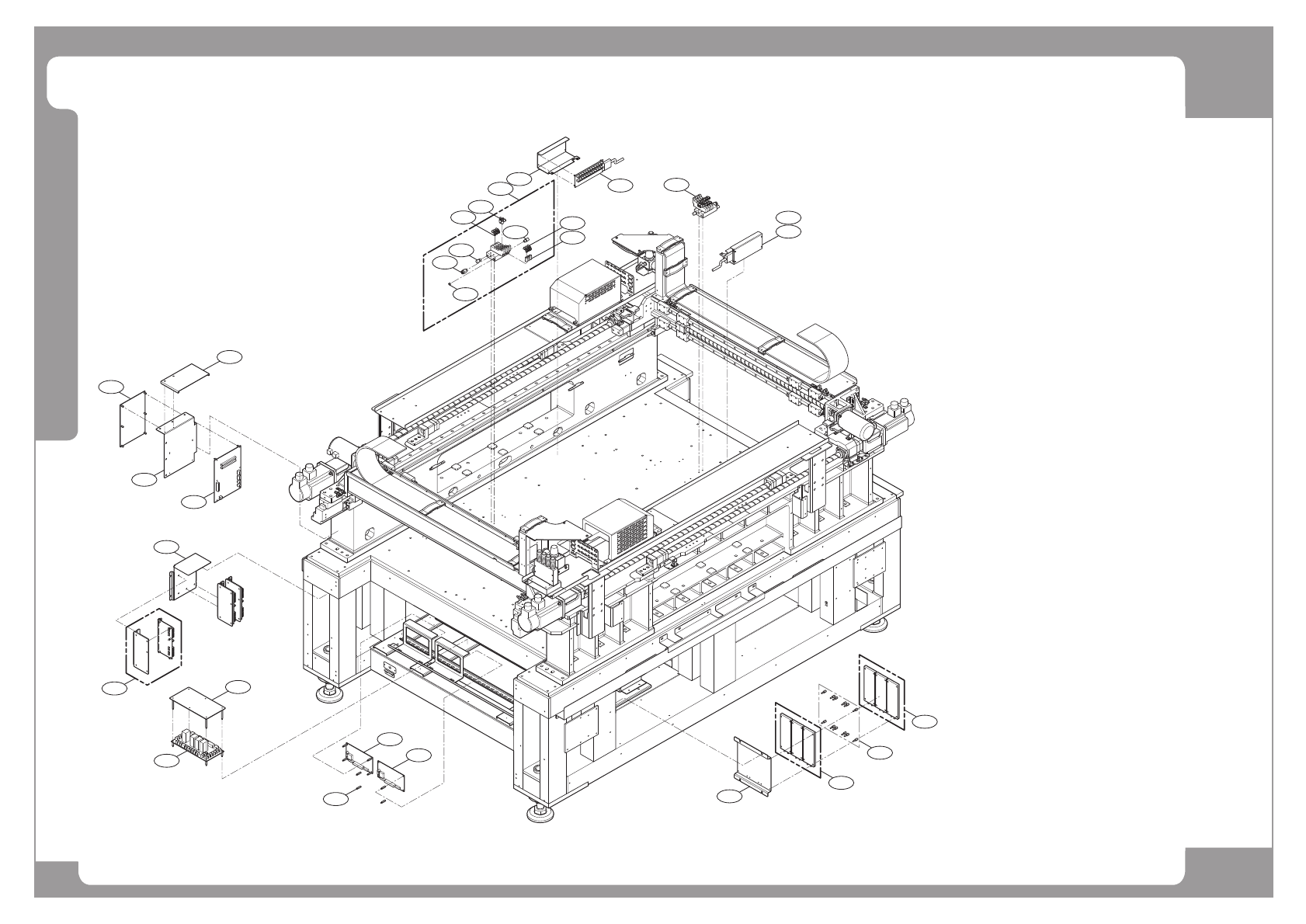

Electric Device Ass’y (2/2)
12
12
13
11
7
10
10
17
20
21
16
5
8
9
6
1
2
3
4
14
19
20
18
22
18
17
16
15
13
Page
HANWHA TECHWIN
131
SM451DH
Electric Device Ass’y (2/2)
NO. LEVEL PART NO. PART NAME Q'TY Old No. Old No. Stock Apply Reference
1 J70510111C BOARD COVER 1
2 J91741076A CONV_SUB_IF_BOARD VER 1.0 1
3 J70510110C BOARD BRACKET 1
4 J91741165C DOCKING_IO_BOARD 1
5 FC09-000065A BRACKET-STEP DRIVER BASE;ME1:Steel 1
6 EP06-000283 SERVO CONTROL-DRIVE-BELT STEP DRIVER 3 EP06-900114
7 J7251007A BOARD COVER[J7251007A] 1
8 J91741087A SAFETY_CONTROL_DC_POWER_BOARD VER 1.0 1
9 FC29-900614 HEX SUPPORT [M3*20 (BOLT-NUT)] 8
10 J91741208B SM431_SEDES_SLAVE_M 2
11 J70511021A RESISTOR_BRACKET J70511021A 1
12 EP10-901978 REGENERATIVE RESISTOR[IRN150S] 6
13 J70511003A RESISTER_SUPPORT J70511003A 12
14 HP09-000008 MANIFOLD-R5032-2;ME6:Aluminum 1
15 HP09-000009 MANIFOLD-R5032-3;ME6:Aluminum 1
16 J90601048A SM431_CONVEYOR_SENSOR_IF_BOARD 2LAYER, 1 2
17 FC09-000021A BRACKET-CONV_SNS_BOARD;ME1:Steel 2
18 2
19 2
20 6
21 3
22 1
23 1
Page
HANWHA TECHWIN
132
SM451DH
Electric Control Part
