Page HANWHA TECHWIN 5 SM451DH Fixed Laser Camera Ass'y (1/2) NO. LEVEL P ART NO. P ART NAME Q'TY Old No. Old No. St ock Apply Reference A AM03-000960A ASSY ,OPTICS-SM451DH_LASER_R!_FOV45 _ST AGE 1 1 FC08-000001…
Page
HANWHA TECHWIN
4
SM451DH

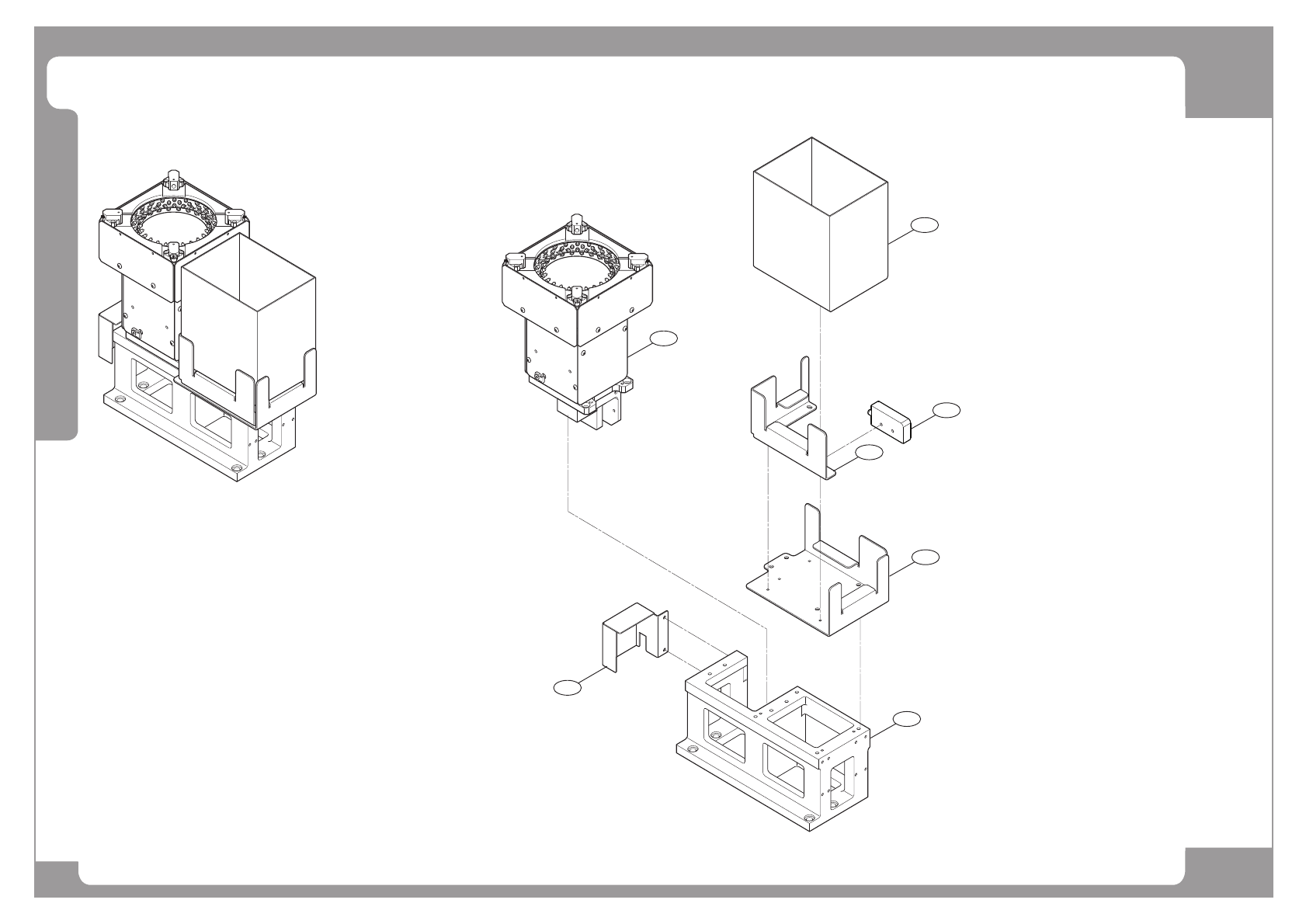

Fixed Laser Camera Ass'y (1/2)
1
A
2
6
3
4
5
Page
HANWHA TECHWIN
5
SM451DH
Fixed Laser Camera Ass'y (1/2)
NO. LEVEL PART NO. PART NAME Q'TY Old No. Old No. Stock Apply Reference
A AM03-000960A ASSY,OPTICS-SM451DH_LASER_R!_FOV45_STAGE 1
1 FC08-000001A BOX-DUMP;ME1:Steel 1
2 FC09-000023B BRACKET-DUMP_BOX_2 1
3 FC09-000022A BRACKET-DUMP_BOX_1;ME1:Steel 1
4 FC29-000252A SUPPORT-CAMERA;ME1:Steel 1
5 FC15-000164A COVER-CAMERA_BOARD;ME1:Steel 1
6 AM03-001759A CABLE ASSY-DUMP_BOX_FLOAT_DETECT_SENSOR 1
Page
HANWHA TECHWIN
6
SM451DH

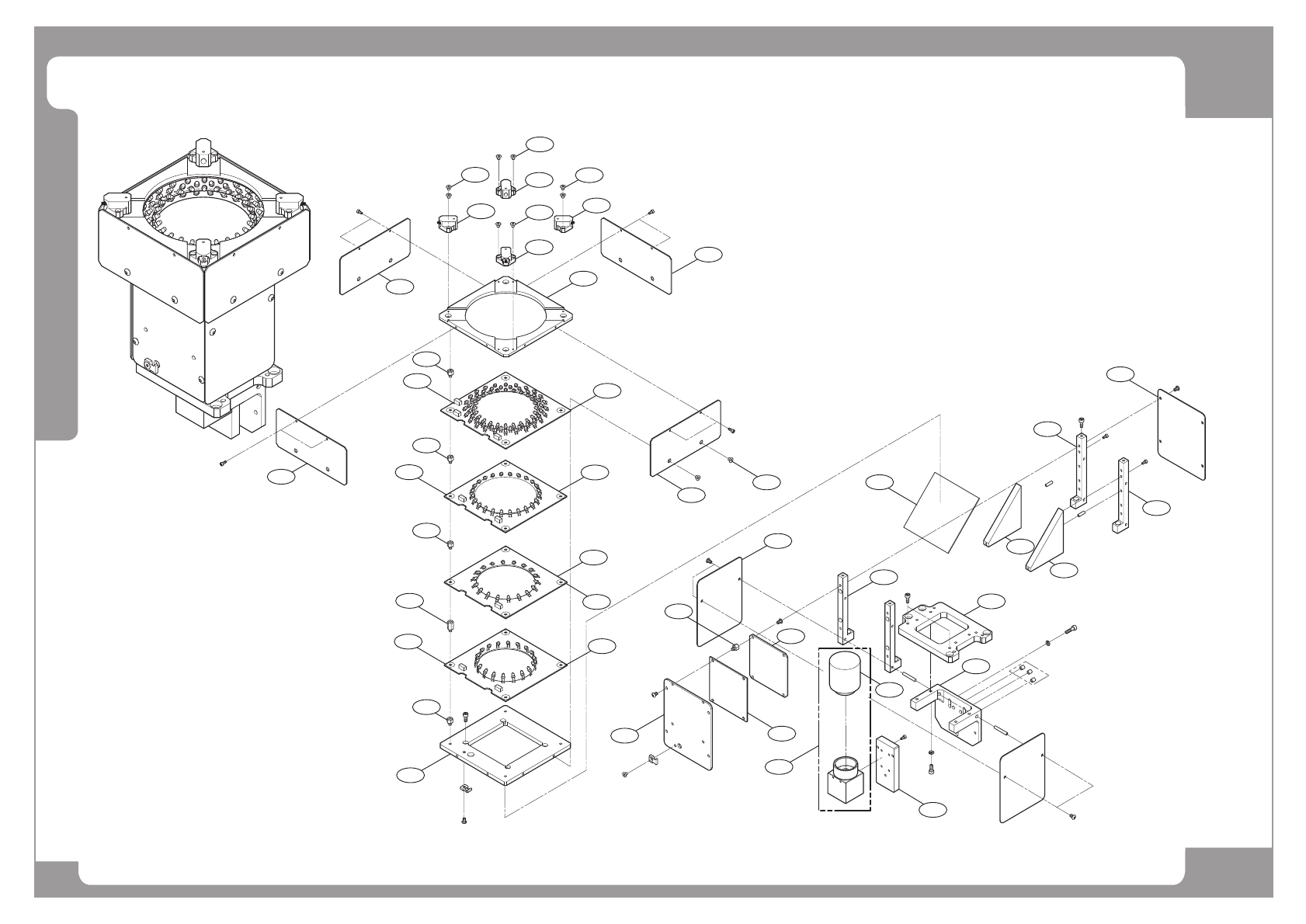

Fixed Laser Camera Ass'y (2/2)
20
3
11
7
27
31
27
9
9
10
7
15
26
13
13
13
13
23
13
19
18
25
24
17
21
7
16
5
1
28
28
28
30
30
30
30
28
27
29
6
27
14
2
4
12
