Page HANWHA TECHWIN 197 SM451DH Safety Interlock Interface (3/3) NO. Lev . P ART NO. P ART NAME Q'TY Old N o. Supply Supply L T Reference 1 AM03-00 0414A CABLE ASSY 1 2 AM03-00 0413A CABLE ASSY 1 3 AM03-000630A CA B…
Page
HANWHA TECHWIN
196
SM451DH

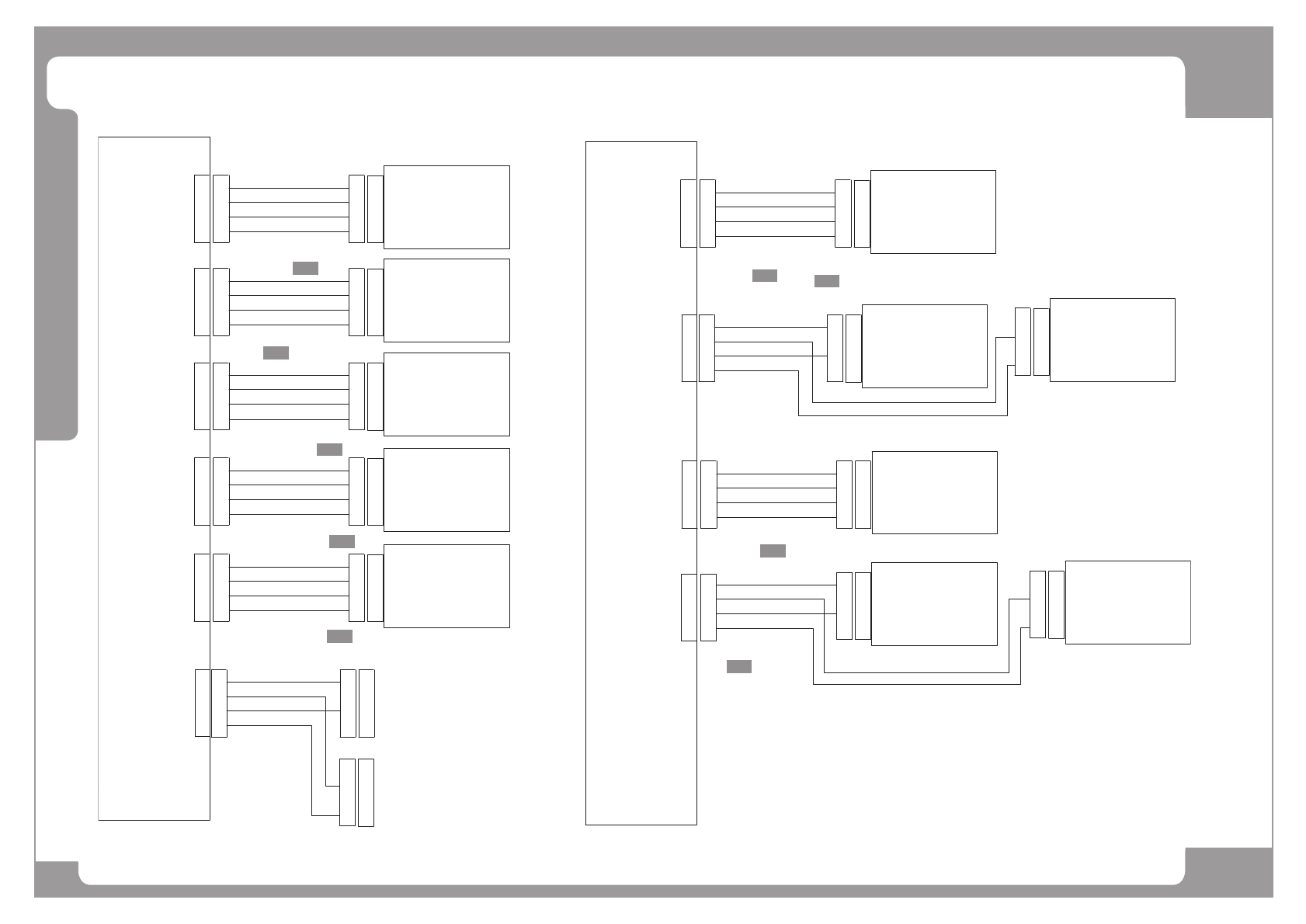

Safety Interlock Interface (3/3)
+24V
44
CN24
3
2
3
2
CN7S
1 1
44
3
2
3
2
KVMS B/D
AXIS SENSOR B/D
24G
4
4
+24V
+24V
24G
24G
24G
3
2
1
CN4
3
2
1
4
3
2
4
3
2
44
44
CN23
1 1
CN22
22
33
1 1
22
44
33
CN21
1 1
SAFETY CONTROL
BOARD
CN20
22
33
1 1
4
4
FEEDER I/F B/D
CN4
24G
+24V
+24V
+24V
24G
4
4
CN10
1
1
3
2
1
3
2
1
24G
24G
+24V
+24V
2
2
4
3
4
3
CN4
1
1
CONVEYOR I/F B/D
24G
24G
+24V
+24V
CN4
2
3
1
2
3
1
4
4
44
+24V
+24V
BOARD
CN26
4DP
SAFETY CONTROL
22
33
1
1
24G
24G
CN1
2
2
3
3
1
1
VME IO B/D CN1
(SM451DH_CV002)
(SM451DH_FD001)
(SM451DH_AX001)
(SM451DH_KV001)
(SM451DH_VI001)
CN29
44
2
3
2
3
11
CN28
(SM451DH_CI001)
24G
+24V
+24V
24G
44
2
3
2
3
11
4
2
3
CN7
1
4
2
3
1
CAN IO B/D
(SM451DH_PW078)
24G
+24V
+24V
24G
4
2
3
CN1
1
4
2
3
1
#1 SEDES B/D
AM03-000414A
AM03-000630A
AM03-000082A
AM03-000144A
AM03-000367A
AM03-000105A
AM03-000342A
REAR
CONVEYOR I/F B/D
FRONT
(SM451DH_CV001)
AM03-000413A
CN25
4
2
3
1
4P
FRONT HEAD
4
4
3
2
1
CN4
3
2
1
4
4
3
2
1
CN4
3
2
1
I/F B/D PWR EXT
REAR HEAD
I/F B/D PWR EXT
+24V
+24V
GND
GND
4
3
2
1
CN27
4
2
3
1
4P
FRONT SEDES
4
4
3
2
1
CN4
3
2
1
SLAVE B/D
+24V
+24V
GND
GND
(SM451DH-SC003)
AM03-000351A
4
2
3
1
4
4
3
2
1
CN4
3
2
1
REAR SEDES
SLAVE B/D
4
2
3
CN1
1
4
2
3
1
#2 SEDES B/D
^4`
^5`
^7`
^6`
^8`
^9`
^:`
^;`
^<`
Page
HANWHA TECHWIN
197
SM451DH
Safety Interlock Interface (3/3)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-000414A CABLE ASSY 1
2 AM03-000413A CABLE ASSY 1
3 AM03-000630A CABLE ASSY-REAR FDR IO BD PWR CABLE ASSY 1
4 AM03-000082A CABLE ASSY-AXIS SNS BD PWR CABLE ASSY_DH 1
5 AM03-000144A CABLE ASSY-FR-BD-POWER-CABLE-ASSY_DH 1
6 AM03-000367A CABLE ASSY-VME IO B/D PWR CABLE ASSY 1
7 AM03-000351A CABLE ASSY 1
8 AM03-000105A CABLE ASSY-CAN IO BD PWR CABLE ASSY_DH 1
9 AM03-000342A CABLE ASSY-SEDES B/D PWR CABLE ASSY_DH 1
Page
HANWHA TECHWIN
198
SM451DH
Electric Circuit Diagram (1/7)
Z2-AXIS
DRIVER
GRAPHIC SYMBOL
-EMS/W
-MC
-RY
COIL PART
SWITCHING PART
RELAY
3~
M
SWITCHING PART
MAGNETIC CONTACT
MAGNET CONTACT
RELAY
COIL PART
22
12
21
11
22
12
SWITCH LAMP
3Ø MOTOR
-M
LED TYPE
SWITCH
DOOR INTERLOCK
SWITCH
-DS/W
-LAMP
-NF
ITEM
-MCCB
SYMBOL
-CP
-SC
S Y M B O L L I S T
312
4 5 6
GRAPHIC SYMBOL
NOISE FILTER
POWER CONSENT
21
11
CIRCUIT BREAKER
CIRCUIT PROTECTOR
EMERGENCY
COOLING FAN
SPARK KILLER (1PH)
-FAN
-SK
(USE FOR AC)
TERMINAL BLOCK
SPARK KILLER (3PH)
-ZM
-TB
VU
tr
GRAPHIC SYMBOL
DESCRIPTION
DESCRIPTION
SYMBOL
ITEM
DESCRIPTION
(a)
(a)
(a)
-FUSE
WE
L3L1 L2
-SD
FUSE
SERVO DRIVER
CONTACT
(THERMAL)
FRAME EARTH
PE
(b)
(GENERAL)
CONTACT
(CIRCUIT BREAKER)
(CIRCUIT PROTECTOR)
CONTACT
(b)
(b)
SYMBOL
ITEM
DESCRIPTION GRAPHIC SYMBOL
SYMBOL
ITEM
