NO. LEVEL PART NO. PART NAME Q'TY Old No. Old No. Stock Apply Reference
1 FC15-000075A COVER-FB_FRONT;ME1:Steel 1
2 FC14-000876 COUPLER 16 HP06-900169
3 J41041067A SCM_FEEDER_BASE_COVER J41041067A 1
4 J91741280A SCM_FEEDER_BASE_ASSY REV 1.0 1
5 FC18-902785 SOCKET HEAD CAP SCREW M8*10 (NI/ZN) 4
6 J70570262C CAP-TOP PLATE 3
7 HP06-900047 ELBOW FITTING 1
8 FC39-000083B BODY-FEEDER_BASE_SM451DH 1
9 FC18-901968 SOCKET_SET_SCREW M8X6(SUS) 2
10 FC15-003011A SIDE CABLE COVER-FB[J7057213A] 2 J7057213A
11 FC30-000082A PLATE-VERTICAL;ME1:Steel 1
12 FC18-901867 SOCKET HEAD CAP SCREW M4*16 (BL/Zn) 2
13 FC09-000097A BRACKET-FRONT_SENSOR1;ME1:Steel 1
14 RM01-000064B BAR-FEEDER_UNLOCK;AL6061P-T6,SILVER 2
15 EP19-900083 PHOTOELECTRIC SWITCH 4
16 FC09-000097A BRACKET-FRONT_SENSOR1;ME1:Steel 1
17 FC30-000083A PLATE-TOP;ME1:Steel 1
18 FC09-006126A SENSOR_BKT 1
Page
HANWHA TECHWIN
12
SM451DH

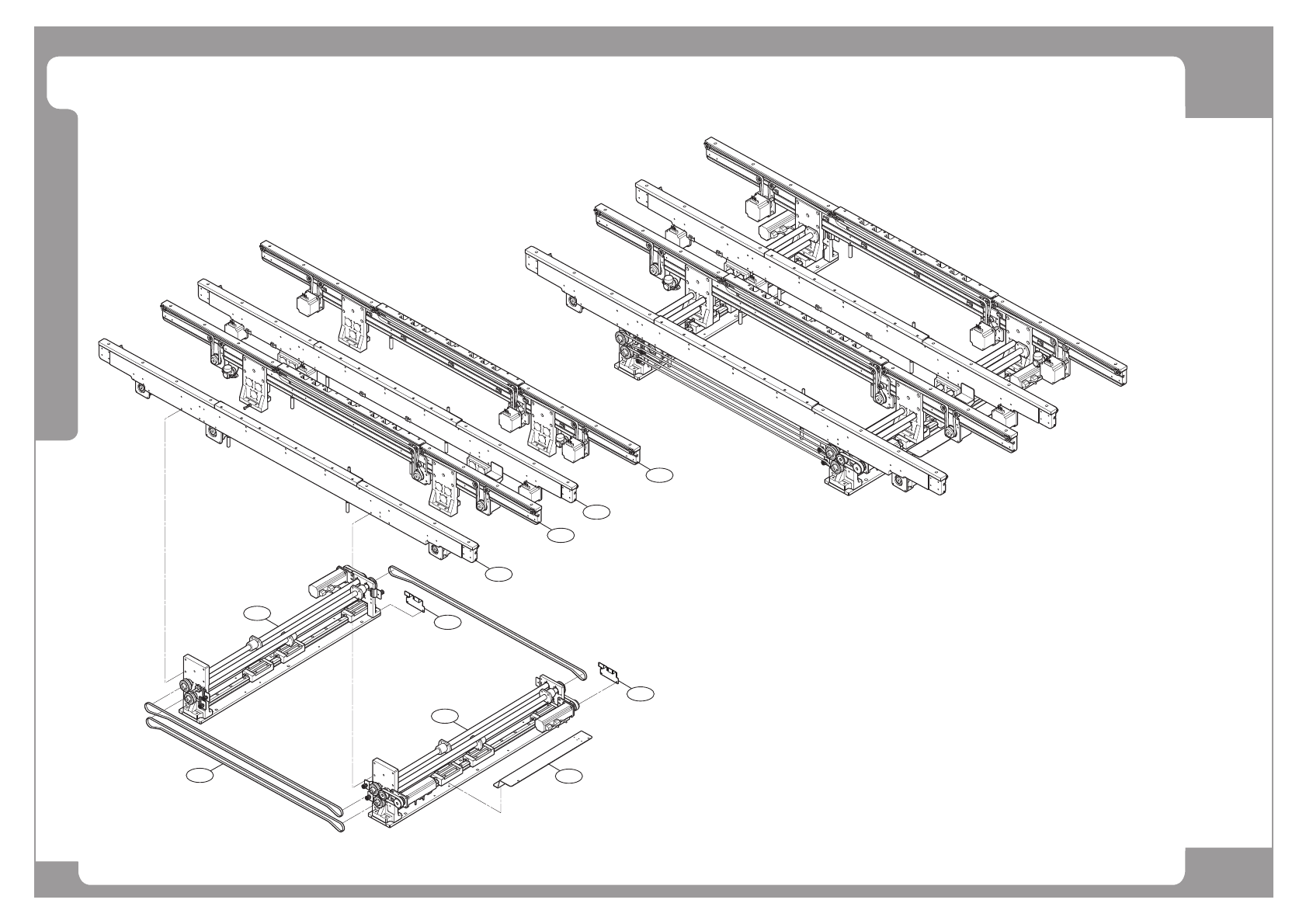

Conveyor Ass’y (1/7)
