Page HANWHA TECHWIN 15 SM451DH Conveyor Ass’y (2/7) NO. P ART NO. P ART NAME Q'TY Old No. Stoc k Apply Reference 1 FC09-000018A BRACKET -CONV_HOME_ SENSOR;ME1:S teel 3 2 FC07-000029A BLOCK-SCREW_FIX;ME1:S teel 1 3 F…
Page
HANWHA TECHWIN
14
SM451DH

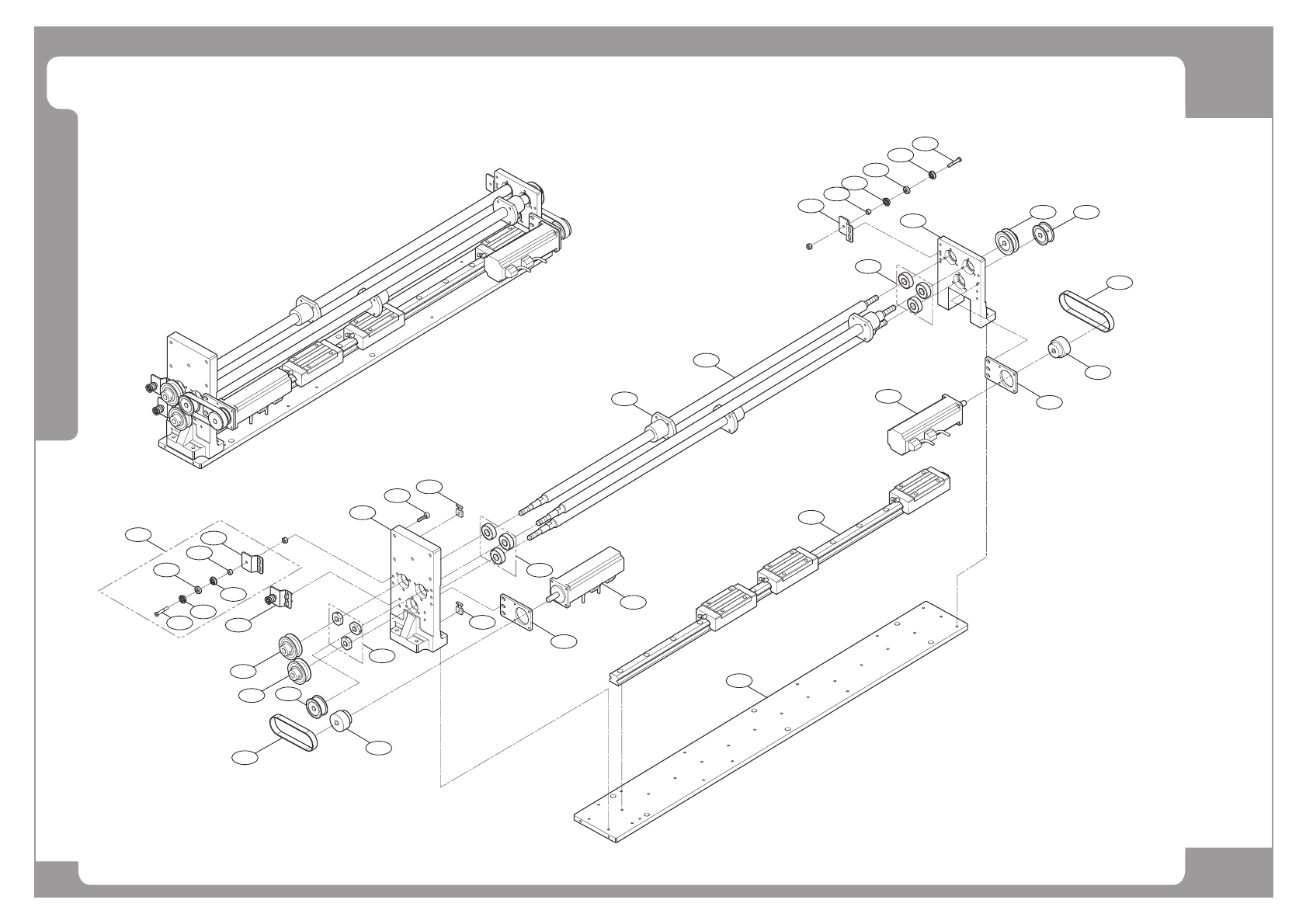

Conveyor Ass’y (2/7)
9
9
12
23
19
15
16
17
18
19
20
4
10
7
13
A
1
14
3
2
A
21
9
11
A
13
22
22
6
6
8
1
14
Page
HANWHA TECHWIN
15
SM451DH
Conveyor Ass’y (2/7)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 FC09-000018A BRACKET-CONV_HOME_SENSOR;ME1:Steel 3
2 FC07-000029A BLOCK-SCREW_FIX;ME1:Steel 1
3 FC05-000003A BASE-LM;ME1:Steel 1
4 MC13-000001 LM GUIDE-748L;748,93.2,3,N,K1,ME1:Steel 1
5 FC07-000028A BLOCK-FIX_FRAME;ME1:Steel 1
6 MC03-900022 BALL BEARING 4
7 MC03-900044 BALL BEARING[685ZZ] 2
8 J70531678A BELT_TENSION_SHAFT J70531678A 3
9 MC19-900014 PULLEY-WIDTH [20-XL-025 ] 3
10 J70653688A IDLER_SPACER_S1 J70653688A 3
11 FC09-000016A BRACKET-BELT_TENTION;ME1:Steel 3
12 J7053194A BEARING NUT [J7053194A] 3
13 FC18-903195 PROFILE MOUNT [DIA4.0] 2
14 EP19-900114 LIMIT SENSOR [EE-SX674] 4
15 FC05-000004A BASE-LEAD_SCREW;ME1:Steel 3
16 EP08-900121 SERVO MOTOR(MSMA012P1A01) 1 EP08-900121
17 FC09-000012A BRACKET-SERVO_MOTOR;ME1:Steel 1
18 MC19-900015 PULLEY-MOTOR [P32-3M-9] 1
19 FC18-902674 SOCKET HEAD CAP SCREW M5*18 (NI/ZN) 7
20 J7153330A PULLEY SHAFT[J7153330A] 1
21 MC05-000001 TIMING BELT;3M,2.4,3,9,1.3,75,1.17 1
FC09-000522A BRACKET-COVER CONV SNS BOARD 2
FC15-000278A COVER-LM BLOCK 2
22 MC03-900023 BALL BEARING 6
23 FC07-000028A BLOCK-FIX_FRAME;ME1:Steel 2
Page
HANWHA TECHWIN
16
SM451DH

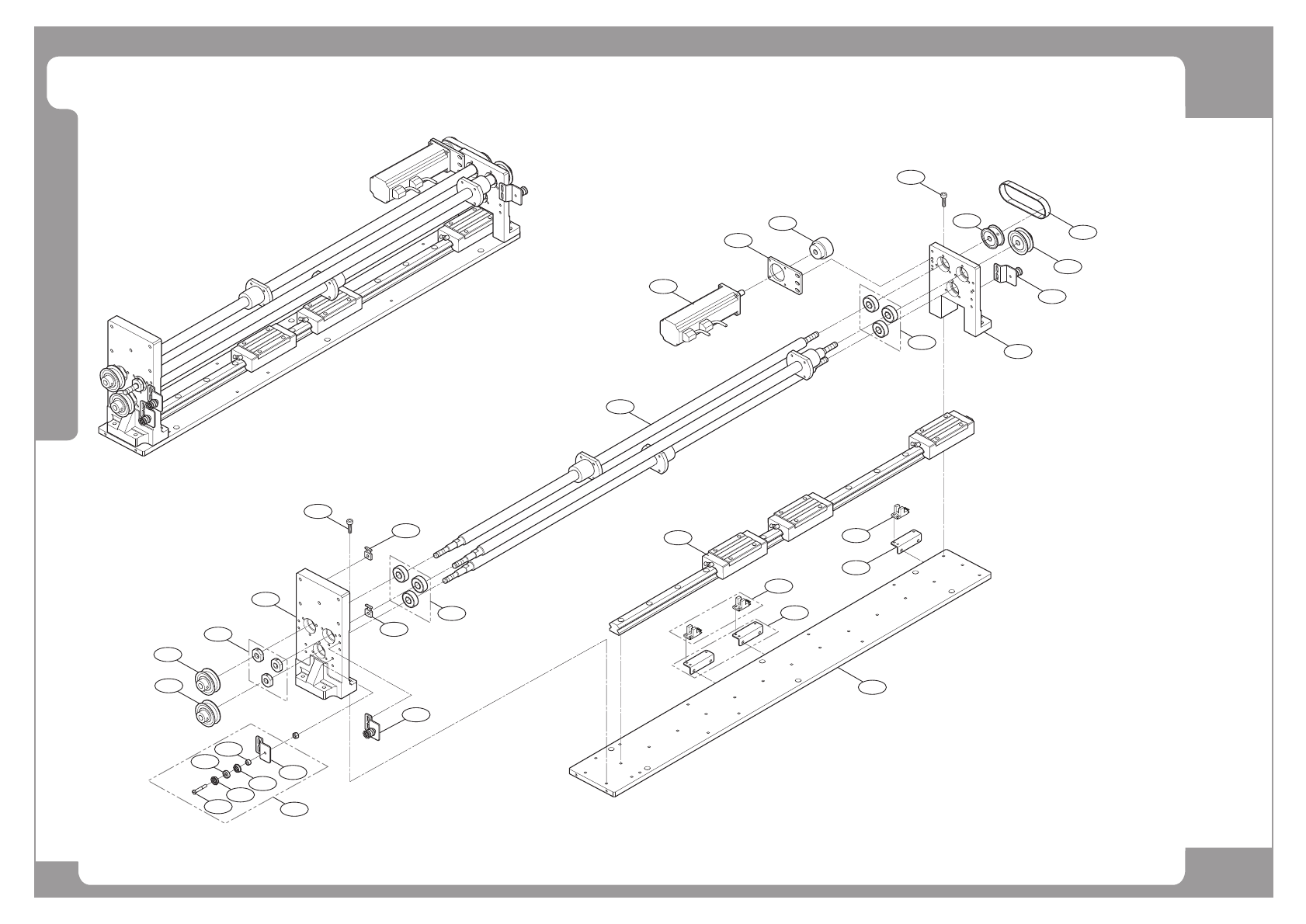

Conveyor Ass’y (3/7)
8
7
9
8
9
10
11
A
10
11
2
12
13
14
20
16
16
19
4
18
17
15
5 2
21
21
3
3
14
6
4
16
9
9
7
5
5
A
1
