Page HANWHA TECHWIN 21 SM451DH Conveyor Ass’y (4/7) NO. P ART NO. P ART NAME Q'TY Old No. Sto ck Apply Reference
Page
HANWHA TECHWIN
20
SM451DH
Conveyor Ass’y (4/7)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
28 J70531087B Q_SENSOR_BKT 1
29 J70531715A MOTOR_JIG_BAR_2 J70531715A 12 J70531715A
30 J70531106A BRACKET_BELT_MOTOR_S J70531106A 2
31 J70531804A PCB_SENSOR_BKT5 J70531804A 2
32 EP19-900099 PHOTO SENSOR[E3S-LS3N] 5
33 FC39-000003A FRAME-CONV_FRONT;ME6:Aluminum 1
34 J7253009B STOPPER 2 [J7253009B] 2
35 J71530399C CLAMP FRONT FRAME 1
36 J7153036A SLIDE GUIDE 1
37 MC13-900013 LM SLIDE 2
38 J71531048B PCB_GUIDE_END 2
39 FC15-000012A COVER-FRONT_PCB;ME1:Steel 1
40 J7153373A FIDUCIAL DISK[J7153373A] 1
41 J7153034A CLAMP SHAFT 2
42 FC09-004605A BRACKET-SENSOR BKT A SP 1 SAMSUNG ELEC OPTION
43 FC09-004606A BRACKET-SENSOR BKT B SP 1 SAMSUNG ELEC OPTION
Page
HANWHA TECHWIN
21
SM451DH
Conveyor Ass’y (4/7)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page

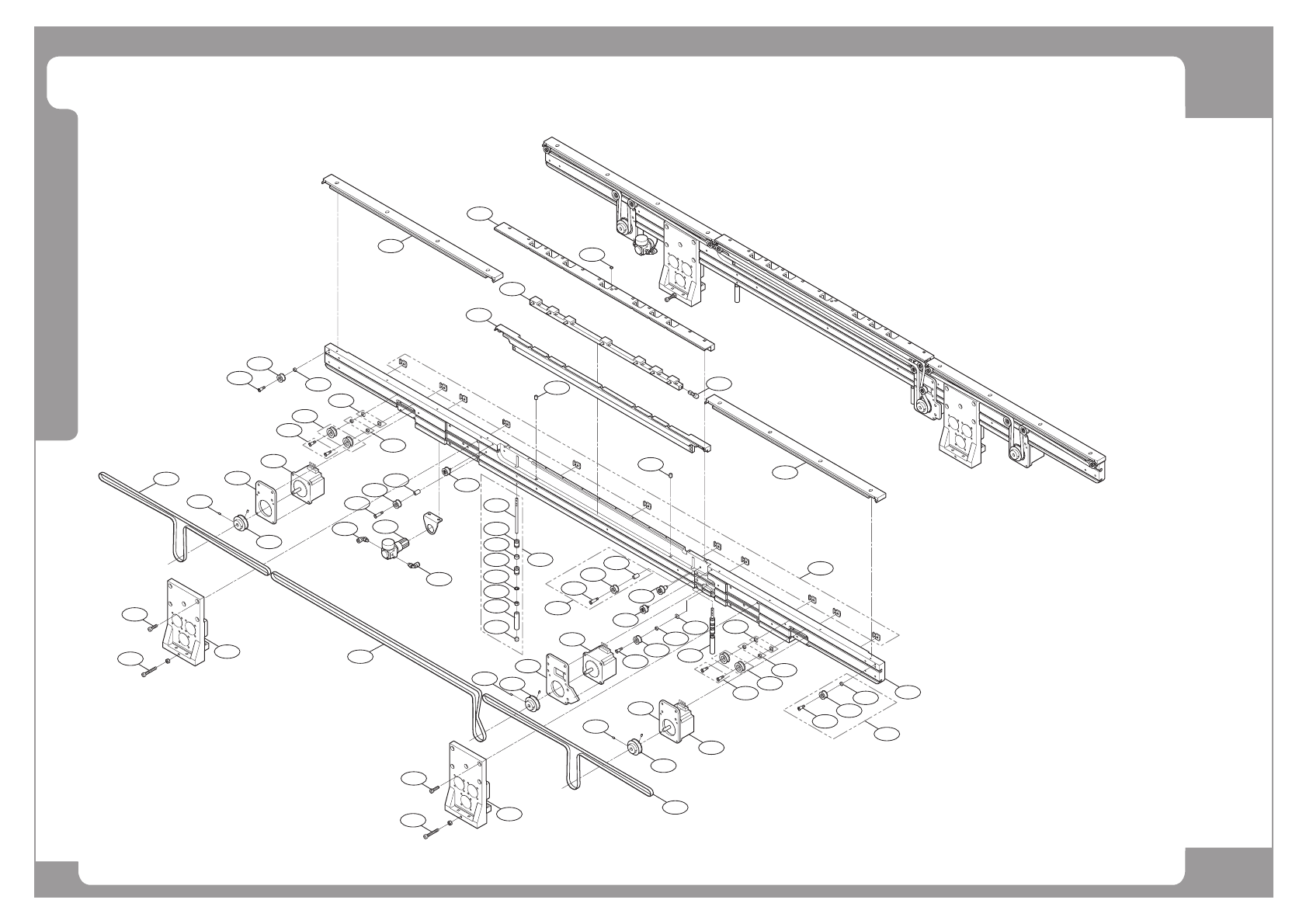

HANWHA TECHWIN
22
SM451DH
Conveyor Ass’y (5/7)
30
32
28
23
23
23
19
22
18
15
14
22
21
21
8
7
20
34
34
34
20
31
33
27
6
25
A
37
C
A
B
26
B
22
23
24
23
18
22
22
23
24
18
21
7
7
6
24
23
14
5
2
B
C
29
29
16
16
17
17
19
13
12
27
11
12
35
10
36
9
1
1
4
4
