Page HANWHA TECHWIN 43 SM451DH Conveyor Ass’y (3/7) (42mm Option) NO. LEVEL P A RT NO. P ART NAME Q'TY Old No. Old No. St oc k Apply Reference
Page
HANWHA TECHWIN
42
SM451DH
Conveyor Ass’y (3/7) (42mm Option)
NO. LEVEL PART NO. PART NAME Q'TY Old No. Old No. Stock Apply Reference
28 FC09-000409A BRACKET-PCB_STOPPER 1
29 FC09-001527A BRACKET-PCB_SENSOR_6_42;SPCC 1
30 FC30-000807A PLATE-SLIDE_GUIDE_42;PBS 3
31 FC18-903195 PROFILE MOUNT [DIA4.0] 7
32 MC05-900069 BELT_410_F MAM-5P-1517-7W 1
33 FC30-000808A PLATE-CLAMP_FRONT_FRAME_42;A6061-T6 1
34 MC19-000346A SHAFT-CLAMP_42;SUS303 2
35 MC06-900006 BALL_BUSH LMU5 4
36 J7153033A BUSH SPACER 2
37 FC18-901355 C-RING DIA11(HOLE) 2
38 FC18-900900 HEX NUT 2
39 MC19-000347A SHAFT-ADJUST_42;SUS303 2
40 J7253008B STOPPER[J7253008B] 2
41 J70531749A PCB_SENSOR_BKT2 J70531749A 1
42 J7055171A PIN [DIA3h8(B) L=10mm] 2
43 FC38-000080 SPRING,COM-TENSION_42;SWP-A,0.8,4.4,30 1
44 FC09-001528A BRACKET-MOVE_RAIL_TENSION-1;SM45C 1
45 FC09-001529A BRACKET-MOVE_RAIL_TENSION-2;SM45C 1
46 FC18-901046 HEX NUT [M4 (BL/ZN)] 1
47 FC18-000484A SPACER-TENSION_IDLER_42;SUS303 1
48 FC18-000483A PIN-IDLER_SHAFT_42;SUS303 1
49 FC09-005024A BRACKET-SENSOR_DOG;ME1:Steel 1 FC09-000017A
50 FC09-001525A BRACKET-WORK_MOTOR_42;SS400 1
51 J7053048A IDLER SPACER-M 3
52 J70531021A IDLER_SHAFT_M J70531021A 3
53 J7253009B STOPPER 2 [J7253009B] 2
54 FC15-000925A COVER-FRONT_PCB_42;SM45C 1
Page
HANWHA TECHWIN
43
SM451DH
Conveyor Ass’y (3/7) (42mm Option)
NO. LEVEL PART NO. PART NAME Q'TY Old No. Old No. Stock Apply Reference
Page
HANWHA TECHWIN
44
SM451DH

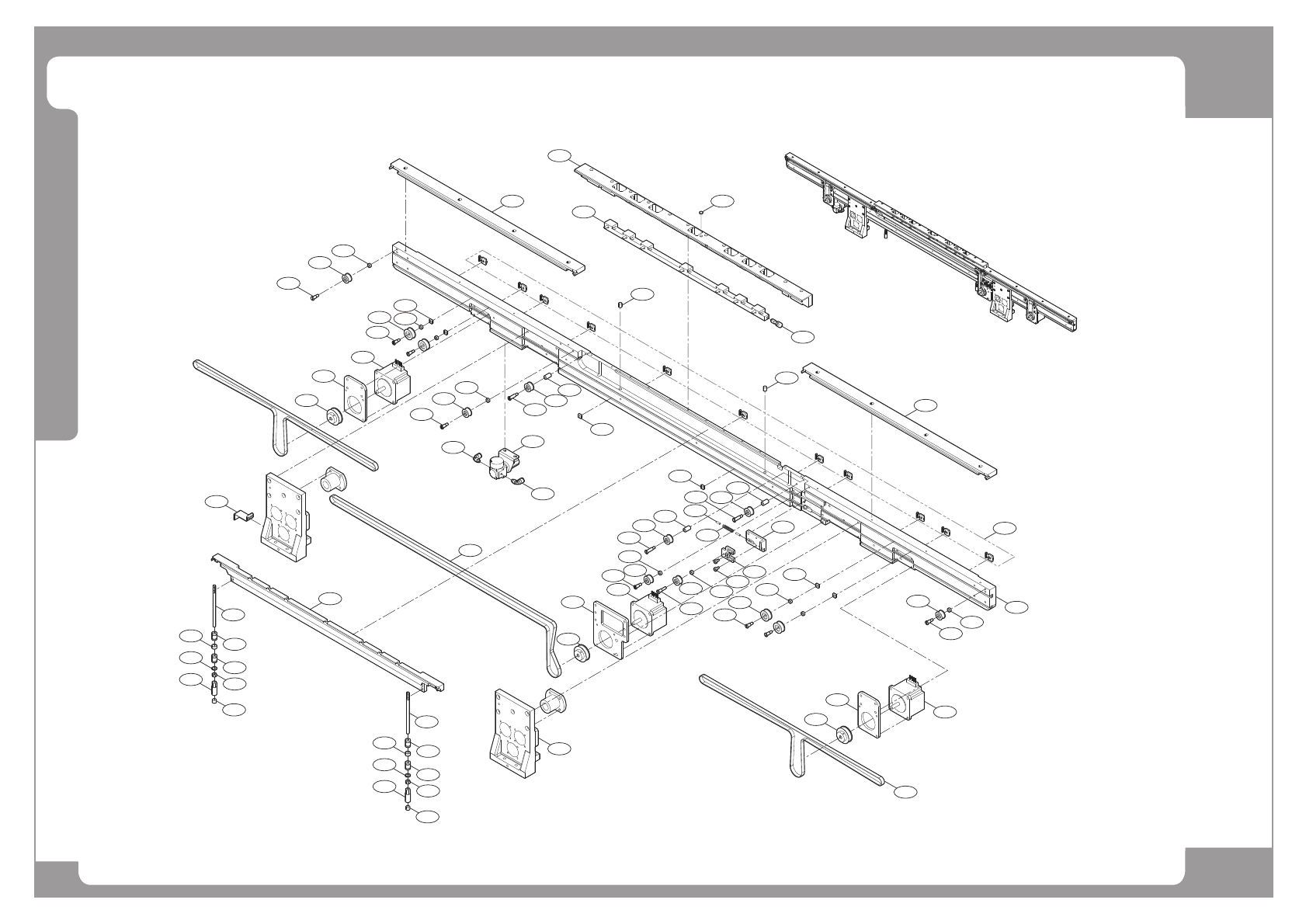

Conveyor Ass’y (4/7) (42mm Option)
8
9
12
30
16
23
10
24
28
15
11
4
19
20
25
9
10
10
16
16
17
9
11
24
10
11
10
9
23
23
10
24
22
26
12
14
32
13
14
2
3
7
5
5
18
21
1
6
6
29
33
31
34
35
35
38
27
36
37
39
34
35
35
38
27
36
37
39
12
16
9
10
11
17
9
11
9
10
11
30
13
14
