Page HANWHA TECHWIN 48 SM451DH Conveyor Ass’y (5/7) (42mm Option) 23 41 42 45 40 15 31 9 17 17 18 9 32 9 32 13 7 33 23 17 1 13 13 30 11 22 23 23 8 39 39 4 35 13 3 34 34 16 46 47 38 34 34 34 34 39 12 20 20 36 27 48 6 14 1…
Page
HANWHA TECHWIN
47
SM451DH
Conveyor Ass’y (4/7) (42mm Option)
NO. LEVEL PART NO. PART NAME Q'TY Old No. Old No. Stock Apply Reference
Page
HANWHA TECHWIN
48
SM451DH

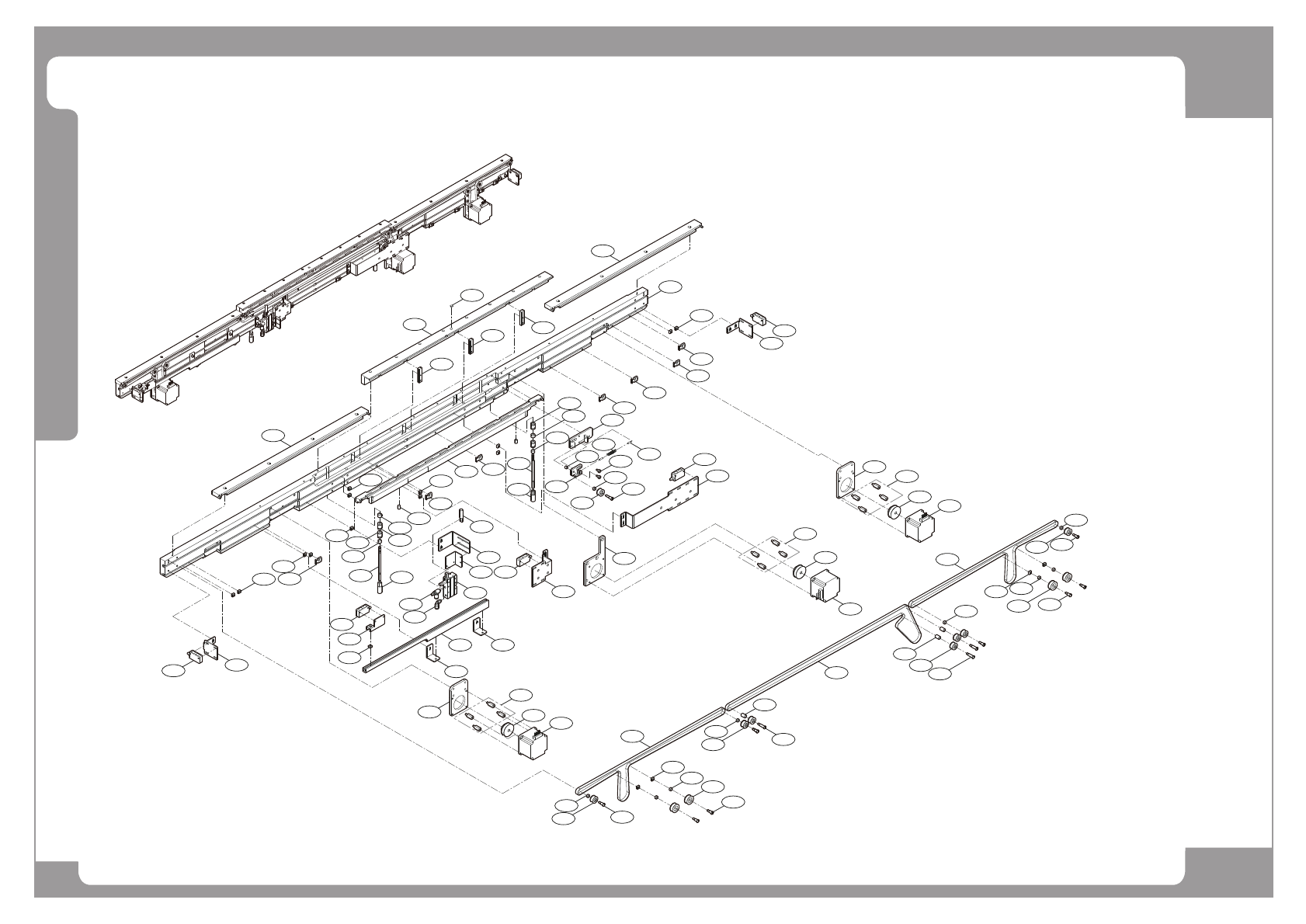

Conveyor Ass’y (5/7) (42mm Option)
23
41
42
45
40
15
31
9
17
17
18
9
32
9
32
13
7
33
23
17
1
13
13
30
11
22
23
23
8
39
39
4
35
13
3
34
34
16
46
47
38
34
34
34
34
39
12
20
20
36
27
48
6
14
14
31
11
30
33
21
28
32
29
29
10
10
43
2
1
37
5
44
19
13
31
25
26
30
4
2
13
13
34
31
31
18
23
5
23
5
22
13
7
23
33
5
5
33
21
13
Page
HANWHA TECHWIN
49
SM451DH
Conveyor Ass’y (5/7) (42mm Option)
NO. LEVEL PART NO. PART NAME Q'TY Old No. Old No. Stock Apply Reference
1 MC19-000347A SHAFT-ADJUST_42;SUS303 2
2 MC19-000346A SHAFT-CLAMP_42;SUS303 2
3 J7253009B STOPPER 2 [J7253009B] 2
4 J7253008B STOPPER[J7253008B] 2
5 J7253007A IDLER 2 7 J7253007A
6 FC09-000408A BRACKET-STOPPER_MOVE 1
7 J7253006A IDLER1 4
8 J7153373A FIDUCIAL DISK[J7153373A] 1
9 J7153111A TEP MOTOR PULLEY [J7153111A] 3
10 J71531048B PCB_GUIDE_END 2
11 J7153033A BUSH SPACER 2
12 J7055171A PIN [DIA3h8(B) L=10mm] 2
13 J7053184A SQUARE NUT M4 18
14 J70531804A PCB_SENSOR_BKT5 J70531804A 2
15 J70531749A PCB_SENSOR_BKT2 J70531749A 1
16 J70531744A STOPPER_POST J70531744A 1
17 J70531715A MOTOR_JIG_BAR_2 J70531715A 12
18 J70531106A BRACKET_BELT_MOTOR_S J70531106A 2
19 J70531087B Q_SENSOR_BKT 1
20 J70531086A BRACKET_RAIL J70531086A 2
21 J70531021A IDLER_SHAFT_M J70531021A 3
22 J7053048A IDLER SPACER-M 3
23 J7053047A IDLER SPACER-S 9 J7053047A
24 HP06-900047 ELBOW FITTING 1
25 HP14-900083 THROTTLE VALVE(ELBOW) 1
26 HP03-900036 AIR CYLINDER[MHY2-01-IU2054-D-M9N(3m)] 1
27 MC05-900069 BELT_410_F MAM-5P-1517-7W 1
