Page HANWHA TECHWIN 61 SM451DH Base Frame Ass’y NO. LEVEL P ART NO. P A RT NAME Q'TY Old No. Old No. Sto ck Apply Reference A FC28-000176 FOOT -MFPU-98 4 1 J7051010D HOUSING-F OOT[J7051010D] 4 2 J70521389A CA TCH_BR…
Page
HANWHA TECHWIN
60
SM451DH

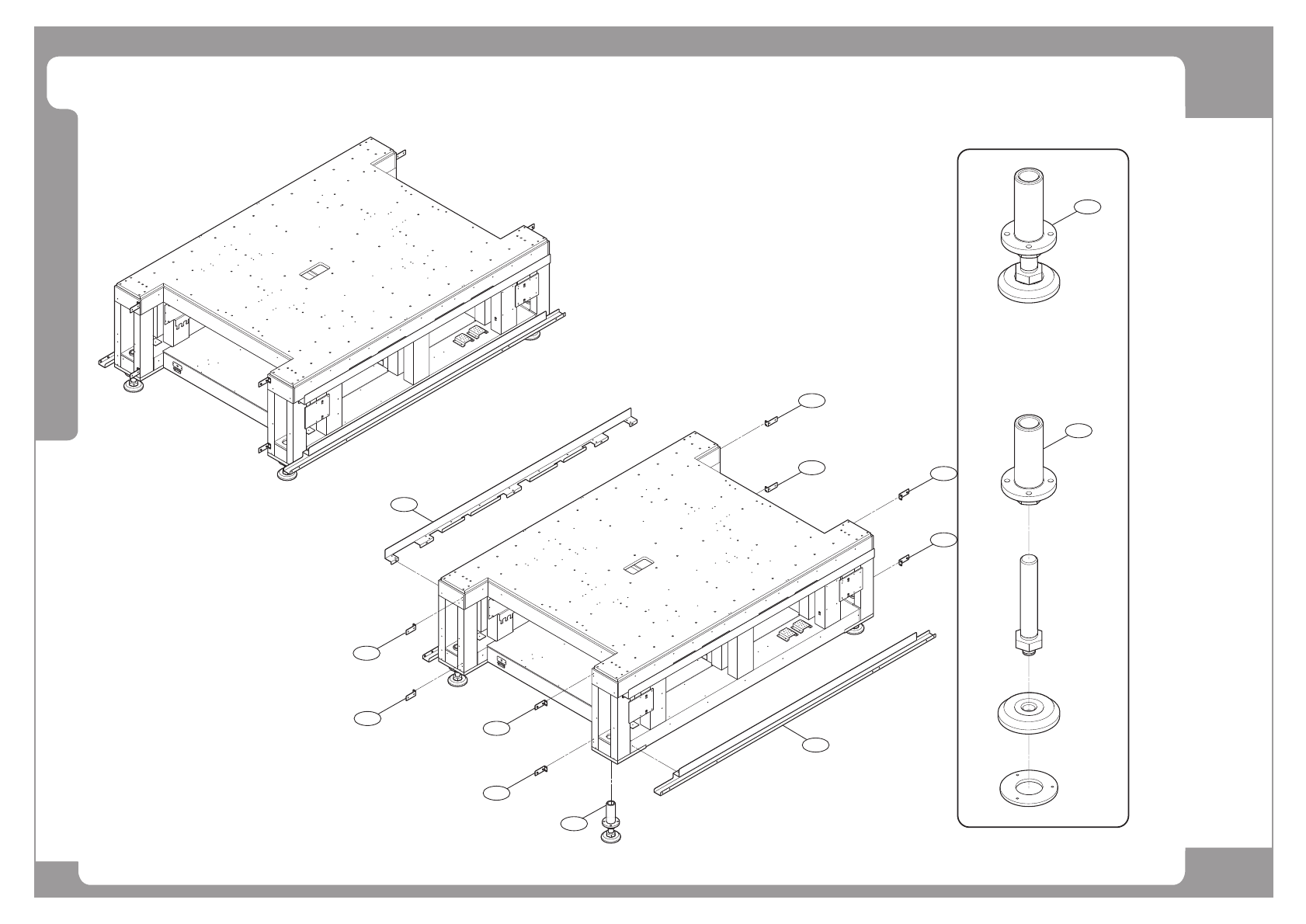

Base Frame Ass’y
4
2
2
2
1
2
A
A
3
2
2
2
2
Page
HANWHA TECHWIN
61
SM451DH
Base Frame Ass’y
NO. LEVEL PART NO. PART NAME Q'TY Old No. Old No. Stock Apply Reference
A FC28-000176 FOOT-MFPU-98 4
1 J7051010D HOUSING-FOOT[J7051010D] 4
2 J70521389A CATCH_BRACKET_R-2 J70521389A 8
3 EP03-000004A DUCT,CABLE-SIDE LOWER;SPCC,ME1:Steel 1
4 EP03-000006B DUCT,CABLE-S-U;SPCC,ME1:Steel 1 EP03-000006A
Page
HANWHA TECHWIN
62
SM451DH
Head Ass’y (1/4)
9
Head Ass'y (2/4)
Head Module 1P
Head Ass'y (3/4)
Driver Head Ass'y
Head Ass'y (4/4)
Head Carrier Ass'y
Head Ass'y (3/4)
Air Module
A
B
11
17
2
1
10
12
7
6
5
3
8
Fiducial Camera Ass'y
Fiducial Camera Ass'y
6
7
5
2
4
1
8
A
B
13
3
14
15
16
