Page HANWHA TECHWIN 69 SM451DH Head Ass’y (3/4) NO. P ART N O. P ART NAME Q'TY Old No. St o ck Apply Reference 1 J91741259A SM421 P_V ACUUM_SENS OR_BOARD VER 1.0 1 2 HP06-900047 ELBOW FITTING 2 3 J7155 1403B AIR_ BK…
Page
HANWHA TECHWIN
68
SM451DH

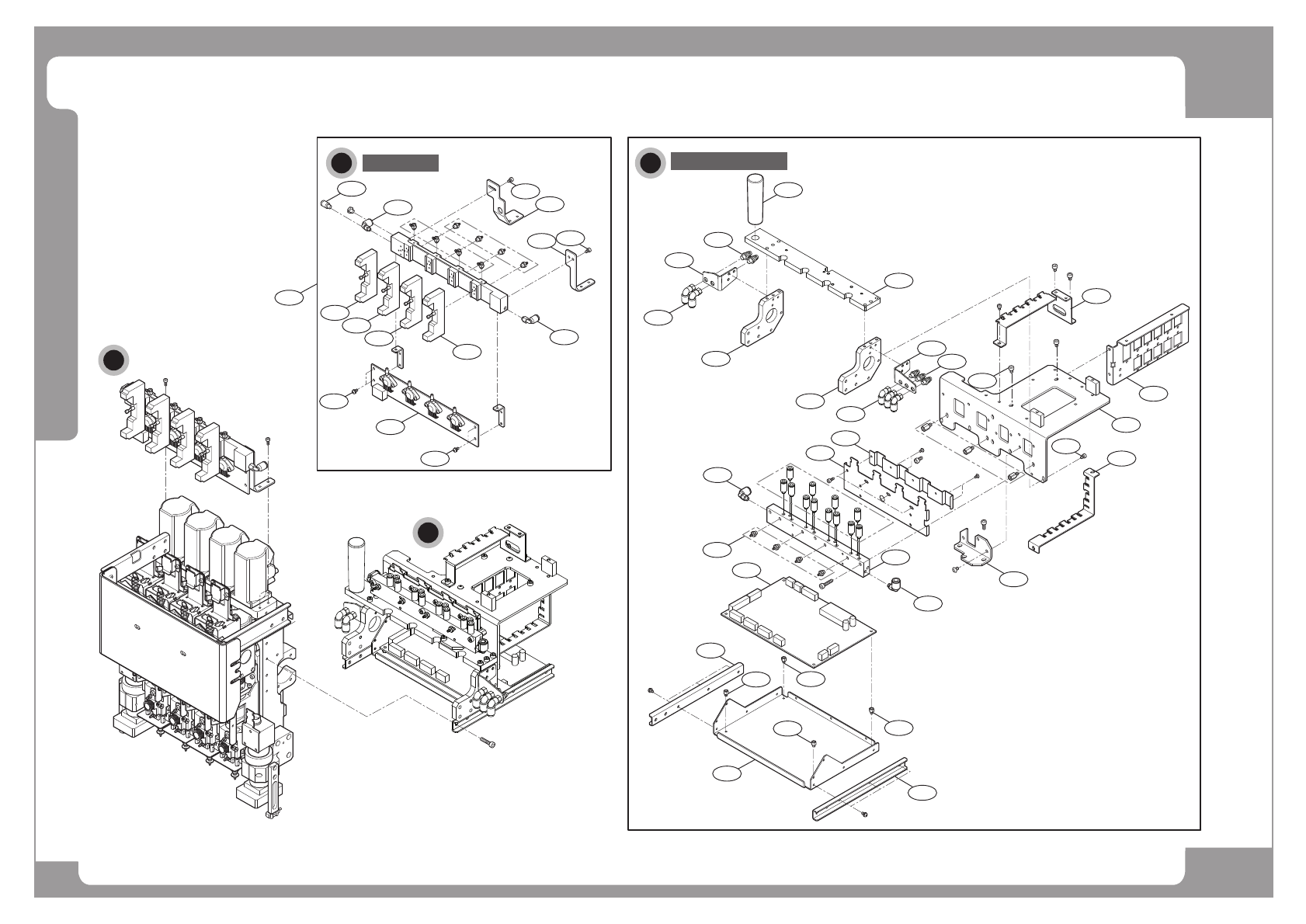

Head Ass’y (3/4)
A
B
Over Head Module
B
Air Module
A
2
29
9
11
8
18
18
5
3
29
16
16
15
19
4
17
10
14
18
12
7
13
13
6
1
28
28
24
27
27
27
25
25
5
18
2
29
26
27
23
37
23
20
22
21
20
Page
HANWHA TECHWIN
69
SM451DH
Head Ass’y (3/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91741259A SM421P_VACUUM_SENSOR_BOARD VER 1.0 1
2 HP06-900047 ELBOW FITTING 2
3 J71551403B AIR_BKT_A 1
4 J71551404A AIR_BKT_B J71551404A 1
5 FC09-000526A BRACKET-HEAD IO SIDE 2 J70551513A
6 J70551514A HEAD_IO_BKT_B J70551514A 1
7 AM03-000880A ASSY,HEAD-OVER-HEAD 1
8 J71551400A FLAT_CABLE_SPT J71551400A 1
9 FC09-000180A BRACKET-Z_CONN;ME1:Steel 1
10 J71551407A CABLE_SPT_TOP J71551407A 1
11 J70551527A FLAT_CABLE_SPT2 J70551527A 1
12 J71551408A OVER_HEAD_SPT J71551408A 1
13 J71551396A HARNESS_SUPPORT J71551396A 2
14 J71551397B HEAD_MANIFOLD 1
15 FC18-001045A CLAMP 1 J71551398A
16 J71551399B FLAT_CLAMP_B 1
17 FC29-900148 HANDLE BG-10 1
18 FC29-900610 HEX SUPPORT 4
19 J91741239B ASSY-SM451_HEAD_IF_BOARD_ASSY 1
20 FC28-900369 GREASE NIPPLE [M6*1.0-STRAIGHT] 5
21 FC09-000312A BRACKET-2_NIPPLE;ME1:Steel 1
22 FC09-000311A BRACKET-3_NIPPLE;ME1:Steel 1
23 HP06-900079 ELBOW_UNION_FEMALE KQ2LF04-M6 5
24 J90551358B SM421P_AIR_MODULE_ASSY 1
25 J61711009A FITTING_ELBOW KJL04-M5 2-SET SCREW[M3*5] 2
26 HP06-900252 STRAIGHT FITTING [M-5AU-4] 4
27 AM03-008334A ASSY,AIR-CHECK_VV_ASSY 4 HP14-900026
Page
HANWHA TECHWIN
70
SM451DH
Head Ass’y (3/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
28 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 2
29 FC18-902730 SOCKET HEAD CAP SCREW M3*15 (NI/ZN) 2
