Tape disposal_20211122_073249 - 第6页
Tape disposal Page 6 / 8 22.11.2021
Tape disposal
Page 5 / 8 22.11.2021
Tape disposal
Page 6 / 8 22.11.2021
Tape disposal
Page 7 / 8 22.11.2021
Pos. Item no. Description Part marking
1 00328647S07 TAPE CUTTER 15MM SPARE PART
2 00328719-06 RETAINING ANGLE LEFT SIDE SPARE PART
00328720-07 RETAINING ANGLE RIGHT SIDE SPARE PART
4 00328721-06 MOUNT (CAST IRON VERSION) *
5 00328730S01 DISTANCE PART
6 00328731-03 PRESSURE PAD SPARE PART
7 00328732-01 CUTTER FIXED
8 00328733-01 RAIL FOR KNIFE, FIXED
9 00328734-01 GUIDE FOR CUTTER FLEXIBLE
10 00328738-03 CUTTER MOVABLE

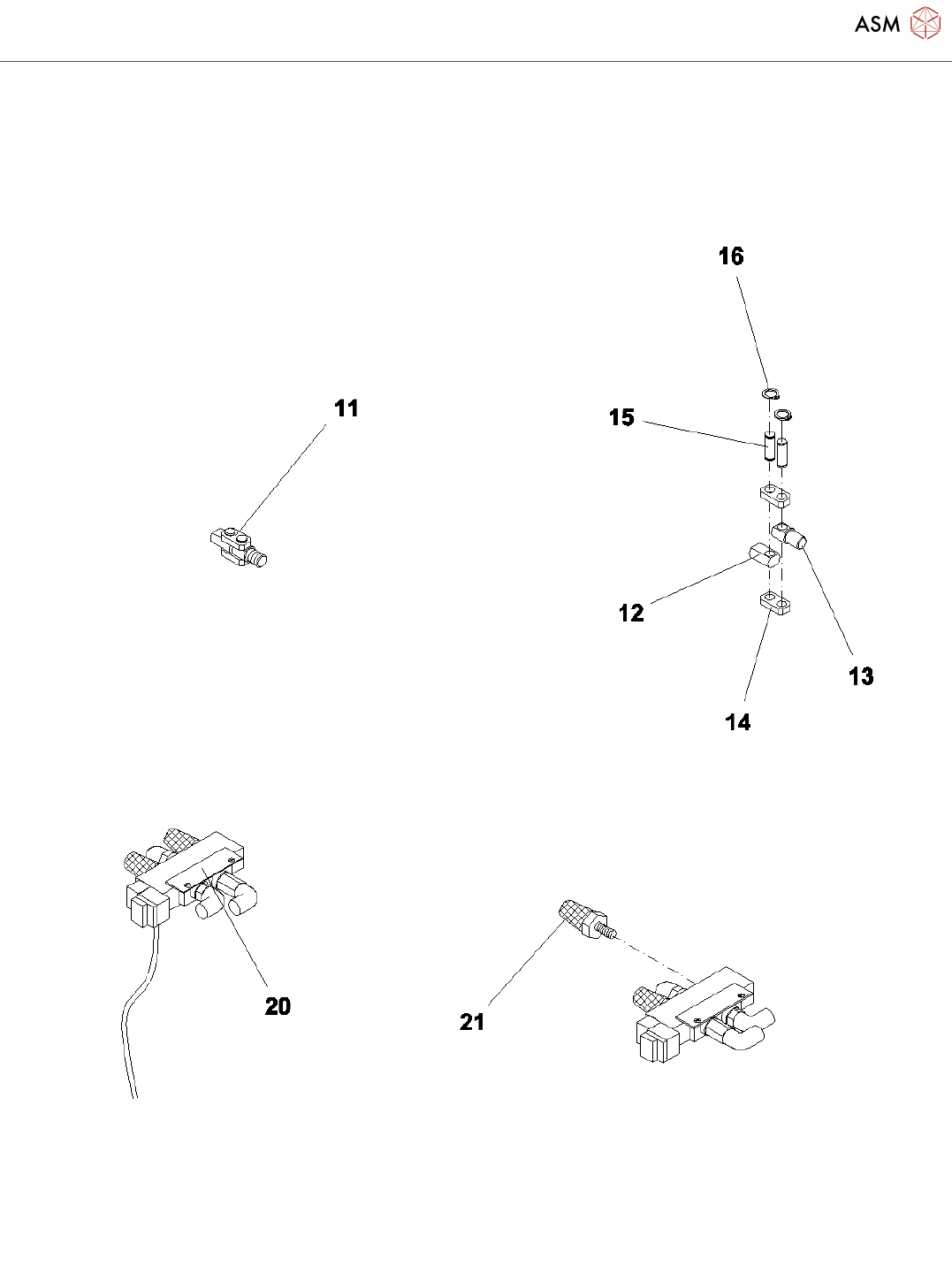

11 00348579-03 HINGE SPARE PART
12 00348578-02 JOINT-PART 1
13 00328744-02 JOINT - PART 2
14 00328745-03 JOINT PLATE
15 00328748-01 BOLT
16 00095482-01 DIN 471-6X0.7-C67 Spare Part
17 00328749-05 BAFFLE SPARE PART
18 00332684-01 CONTROL UNIT SUPPORT RAIL
19 03042066-01 COMPACT CYL. 40*30
ECDQ2840-0030
20 00330930-02 VALVE COMPLETE SPARE PART
21 00310744-01 SILENCER G-1/8 WEAR PART
22 00333878S01 RUBBER METAL BUFFER SPARE PART
23 00845028-01 HEXAGON SOCKET HEAD CAP
SCREW M4 X 20-8.8
24 00349453-01 HEXAGON SOCKET HEAD CAP
SCREW M4*25 BLACK
25 00845033-01 HEXAGON SOCKET HEAD CAP
SCREW M4 X 45-8.8
26 00845057-01 HEXAGON SOCKET HEAD CAP
SCREW M6 X 12-8.8
27 00095566-01 HEXAGON NUT
28 00311954-01 HEXAGON SOCKET HEAD CAP
SCREW
29 00845057-01 HEXAGON SOCKET HEAD CAP
SCREW M6 X 12-8.8
30 00845024-01 HEXAGON SOCKET HEAD CAP
