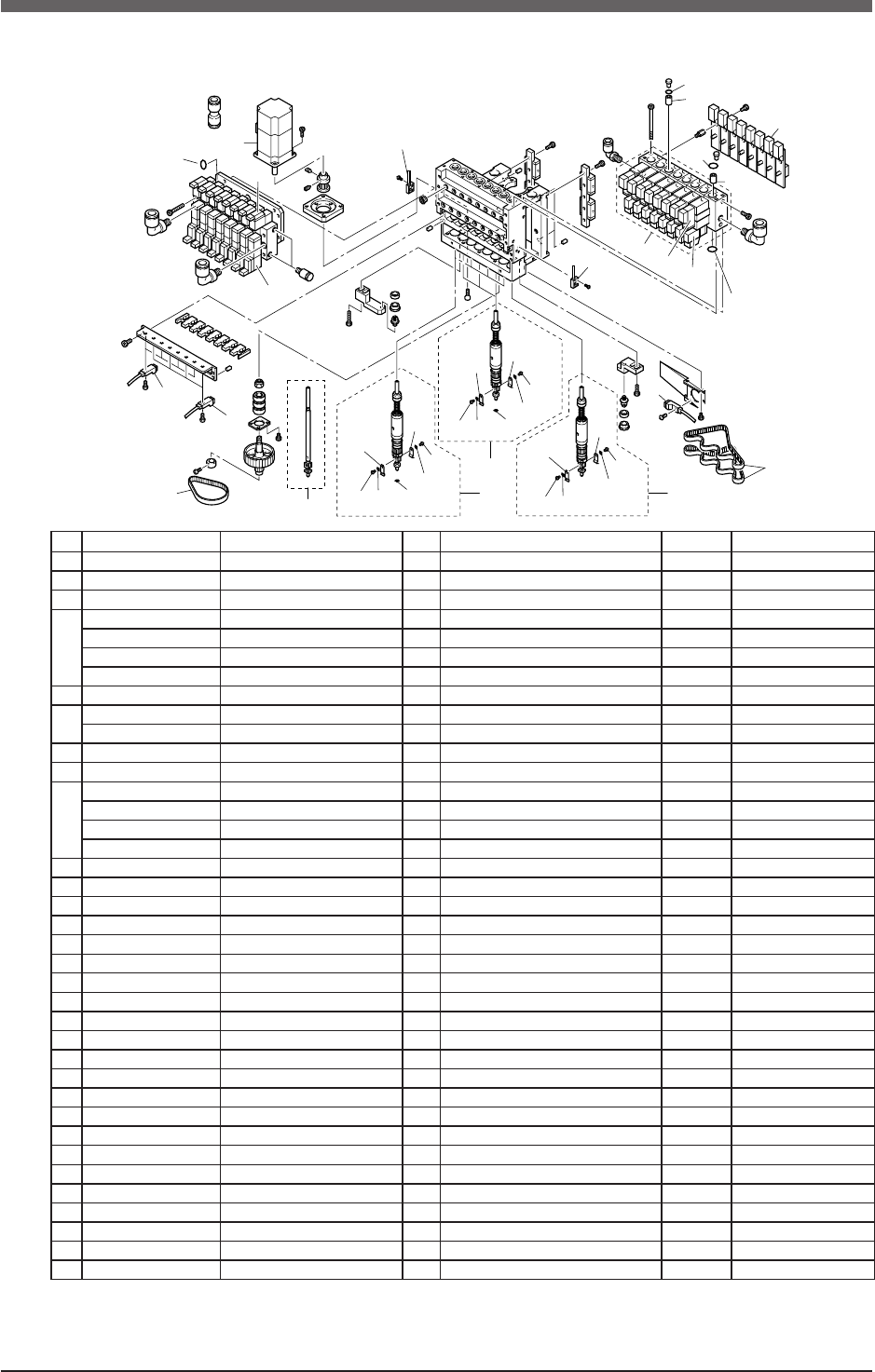

Maintenance Parts
■
Body Head
* This date is change instructions day of parts. It is different from the day when a part was changed.This date is change instructions day of parts. It is different from the day when a part was changed.
* この日付は変更指示日です。実際に部品が変更された日とは異なります。
6
5
3
4
9
2
10
13
6
25
12
7
14
15
8
21
20
20
25
22
16
18
16
17
17
18
28
30
29
16
18
16
1917
17
18
16
18
16
1917
17
18
31
No. Part No. Part Name Q'ty Remarks Rank *Date of change
1
2 KJ2-M7137-00X BELT, R MOTOR 1 A
3 KM1-M7138-00X BELT, HEAD 2 A
4
KM9-M7158-A0X SENSOR, HEAD 1 (NG01) C
KM9-M7158-B0X SENSOR, HEAD 1 (NG03) C
KM9-M7158-C0X SENSOR, HEAD 1 (NG05) C
KM9-M7158-D0X SENSOR, HEAD 1 (NG07) C
5 KM9-M7159-00X SENSOR, R AXIS 1 For R AXIS B
6
KM8-M7160-02X SENSOR,HEAD ASSY. 1 B
1997/12-
KM1-M7160-00X SENSOR HEAD 1 B
-1997/12
7 KV8-M7163-01X EJECTER,RESIN 1 B
8 KM1-M4592-13X VAC SENSOR BOARD ASSY. 8 B
9
KM9-M7165-A0X SENSOR, HEAD 1 (NG02) C
KM9-M7165-B0X SENSOR, HEAD 1 (NG04) C
KM9-M7165-C0X SENSOR, HEAD 1 (NG06) C
KM9-M7165-D0X SENSOR, HEAD 1 (NG08) C
10 KM8-M71A1-00X MOTOR SHIELD ASSY,R 1 B
11
12 KM1-M7162-11X VALVE 8 C
13 KM1-M7162-20X VALVE 8 C
14 KM5-M7174-11X EJECTOR 8 C
15 KM1-M7163-21X VALVE 8 C
16 KG7-M7137-A0X LEAF SPRING 16 A
17 90990-08J024 SCREW 16 A
18 90990-28J002 WASHER 16 A
19 90990-17J003 O-RING 8 A
20 K46-M8527-COX FILTER 8 A
21 90990-17J010 O-RING 8 A
22 90990-17J008 O-RING 2 A
23
24
25
26
27
28 KM9-M711S-A0X SHAFT, SPARE(H1) 1 H1 C
29 KM8-M712S-A0X SHAFT, SPARE(EVEN) 4 H2,4,6,8 C
30 KM8-M713S-A0X SHAFT, SPARE(ODD) 3 H3,5,7 C
31 KM9-M710S-00X SHAFT, SPARE(ODD) 8 C
8
Maintenance Parts
■
Nozzle Selection
No. Part No. Part Name Q'ty Remarks Rank
1 KM0-M711A-31X FLOATING NOZZLE 1 Type 31 A
2 KM0-M711A-03X NOZZLE A COMP 1 Type 31 UFOType A
3 KM0-M711C-02X NOZZLE C 1 Type 32-2 A
4 KM0-M711D-00X NOZZLE D COMP 1 Type 33 A
5 KM0-M711D-12X NOZZLE D 1 A
6 90990-17J013 O-RING 1 A
7 KM0-M711E-00X NOZZLE COMP 1 Type 34 A
8 KM0-M711E-12X NOZZLE 1 A
9 90990-17J015 O-RING 5 A
10 KG7-M71AB-A0X NOZZLE AB 1 Type 35 A
11 KM0-M711J-A0X NOZZLE TYPE39 ASSY. 1 Type 39 circle type A
1
2
10
4
6
5
7
9
8
3
11
9
Maintenance Parts
■
Nozzle Changer
■
Push Up
3
2
1
4
1
2
No. Part No. Part Name Q'ty Remarks Rank
1 KM1-M9605-03X CYLINDER, CLAMP 1 B
2 KM1-M9611-03X CYLINDER, U/D 1 B
3 KH5-M655A-A1X SENSOR, 1-1 1 B
4 KH5-M655A-02X FIBER 1 SPARE B
No. Part No. Part Name Q'ty Remarks Rank
1 KU0-M9217-00X CYLINDER 1 B
2 KU0-M653A-00X SENSOR, 1 ASSY 1 L=700 B
