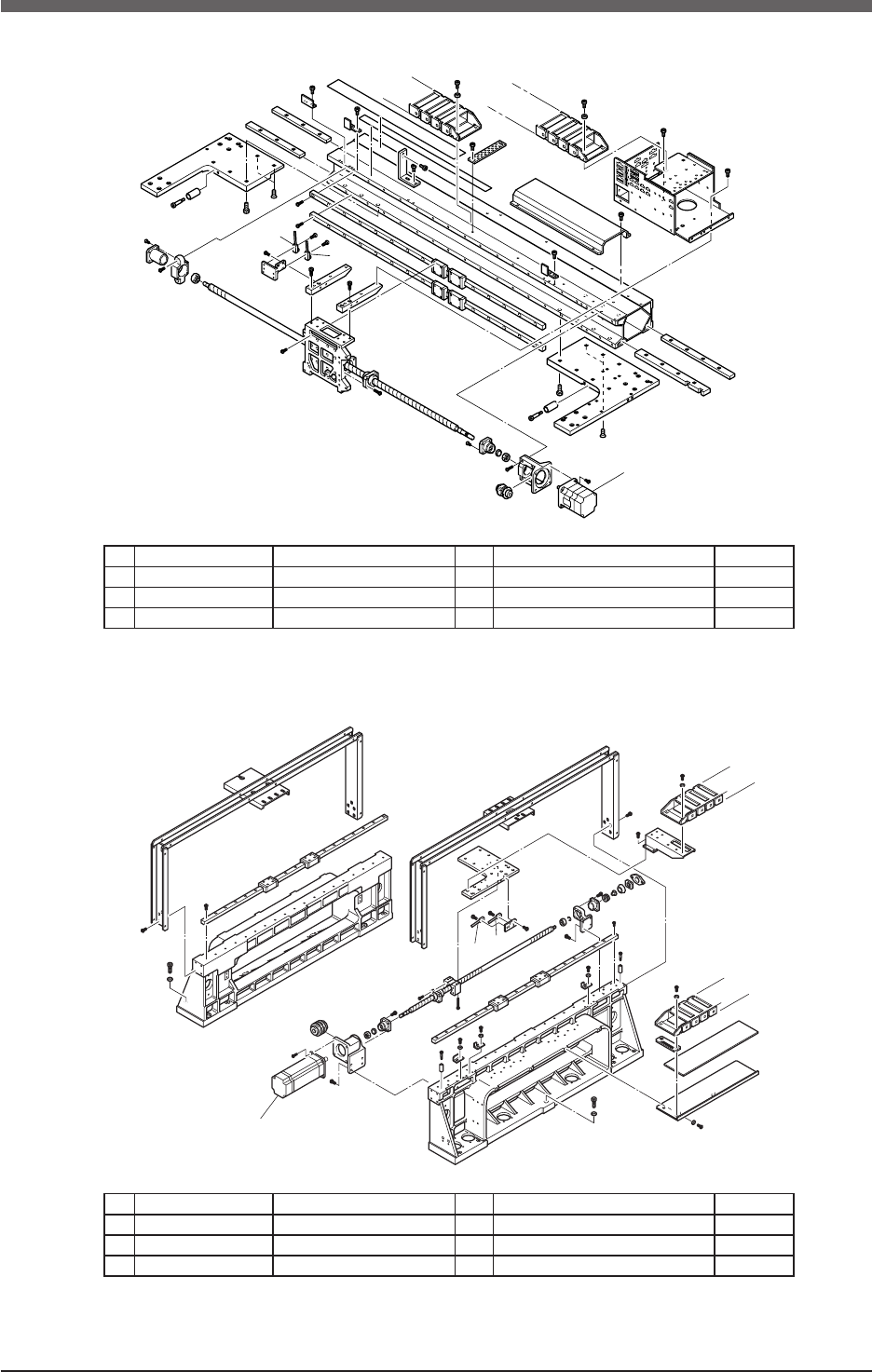

4 Maintenance Parts ■ X-Axis ■ Y -Axis 1 3 2 No. Part No. Part Name Q'ty Remarks Rank 1 90K55-87134X AC SER VO MOTOR 1 For X AXIS B 2 KM0-M655A-00X SENSOR, 1-1 1 For 2ND LIMIT B 3 KM0-M655E-00X SENSOR, 1-2 1 For ORG…
3
Maintenance Parts
■

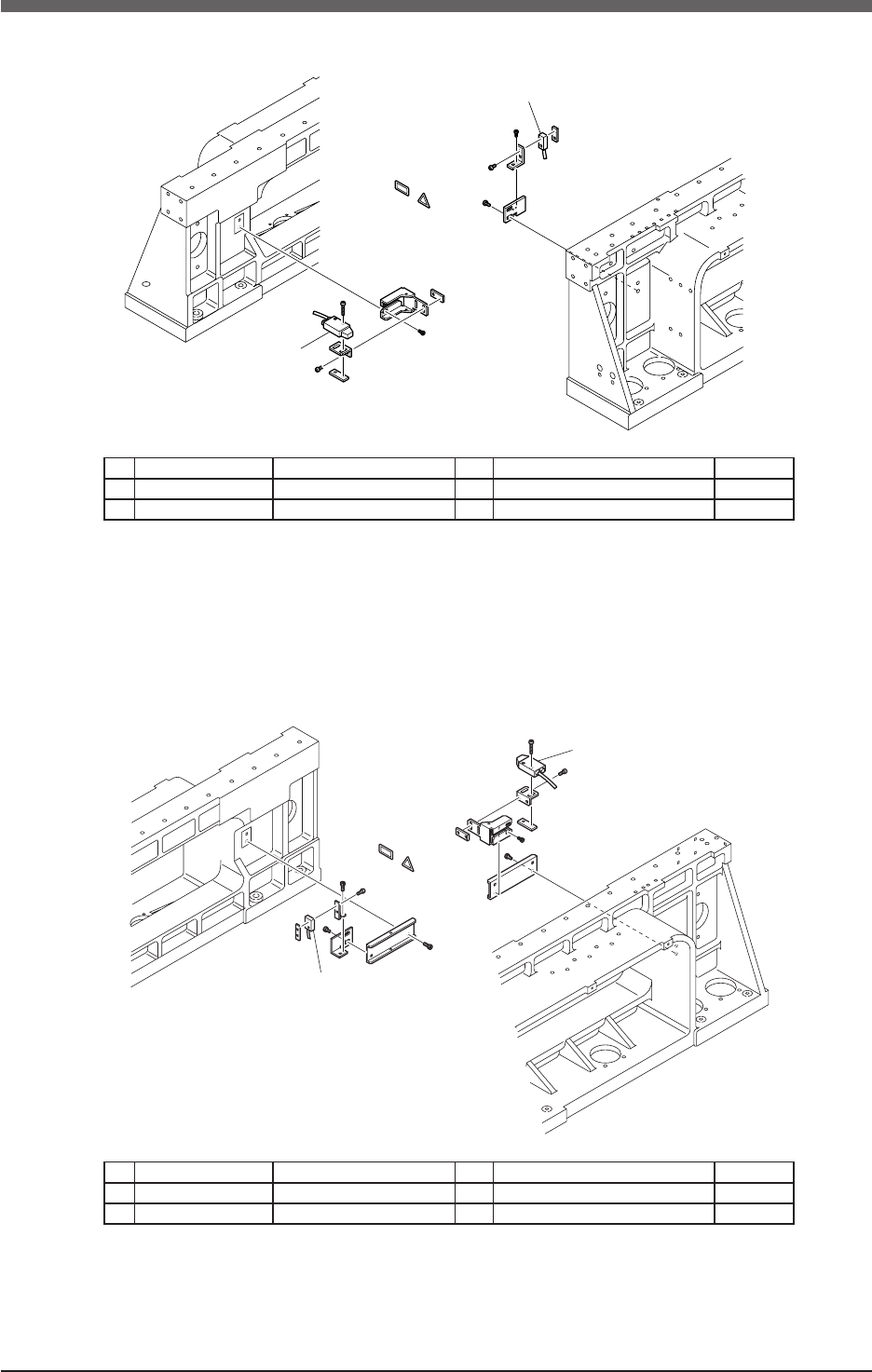

Feeder Floating Detection (Front)
■
Feeder Floating Detection (Rear)
2
1
No. Part No. Part Name Q'ty Remarks Rank
1 KG9-M3455-11X SENSOR S ASSY 1 For FEEDER (Photo Transmitter) B
2 KH5-M3456-A0X SENSOR, R 1 For FEEDER (Photo Receiver) B
1
2
No. Part No. Part Name Q'ty Remarks Rank
1 KG9-M3455-11X SENSOR S ASSY 1 For FEEDER (Photo Transmitter) B
2 KH5-M3456-A0X SENSOR, R 1 For FEEDER (Photo Receiver) B
4
Maintenance Parts
■
X-Axis
■
Y-Axis
1
3
2
No. Part No. Part Name Q'ty Remarks Rank
1 90K55-87134X AC SERVO MOTOR 1 For X AXIS B
2 KM0-M655A-00X SENSOR, 1-1 1 For 2ND LIMIT B
3 KM0-M655E-00X SENSOR, 1-2 1 For ORG. B
1
2
3
No. Part No. Part Name Q'ty Remarks Rank
1 KM0-M655A-00X SENSOR, 1-1 1 For 2ND LIMIT B
2 KM0-M655E-00X SENSOR, 1-2 1 For ORG. B
3 90K55-8A134Y AC SERVO MOTOR 1 For Y AXIS B
5
Maintenance Parts
■

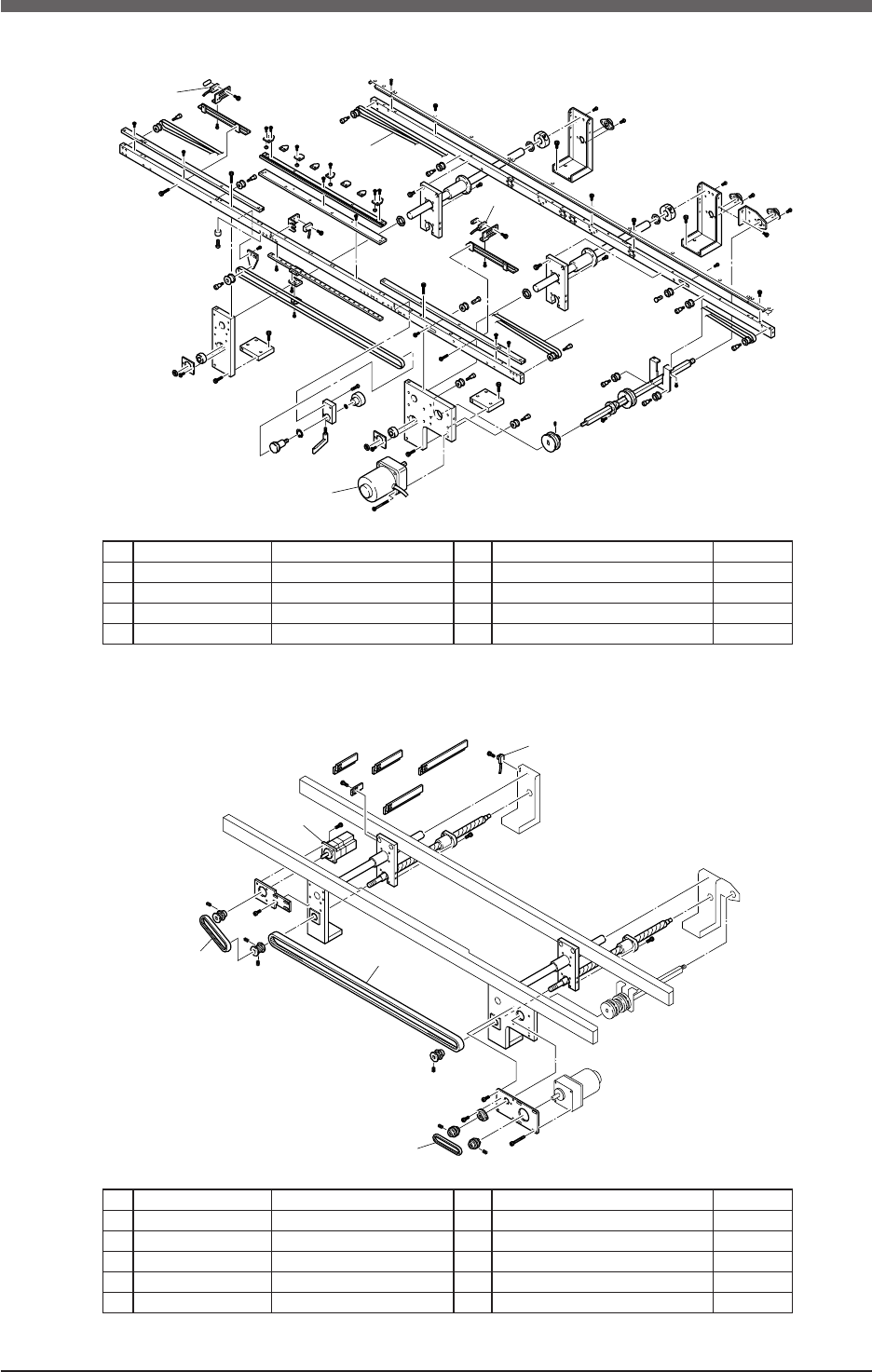

W-Axis
■
Auto Width Conveyor (Option)
2
3
1
4
4
5
2
3
4
1
No. Part No. Part Name Q'ty Remarks Rank
1 KH4-M4886-00X MOTOR ASSY 6 1 For CONVEYOR B
2 KM0-M911A-00X SENSOR,ENT. 1 B
3 KM0-M911E-00X SENSOR,OUT 1 B
4 KM0-M9129-00X BELT, 1 CONVEYOR 2 A
No. Part No. Part Name Q'ty Remarks Rank
1 KH2-M9110-10X BELT, PULLEY MOTOR 1 A
2 KG7-M9114-00X BELT, MOTOR W AXIS 1 A
3 KG7-M9115-00X BELT, W AXIS 1 A
4 KM0-M911F-00X SENSOR, 1-2 1 For W AXIS ORG. B
5 90K55-4W036W AC SERVO MOTOR 1 For W AXIS B
