FK-9F98-34 XP T ype II Series T raining T ext for Service Engineers Edition 2.0 XP142E – Chapter 7 Operation and Accuracy Page 6 of 8 9. Load the board in the conveyor and select [Production] – [Automatic] – [ST ART] and…
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 7 Operation and Accuracy Page 5 of 8
7.3 Reverse PAM
Side 1
1. Equipment: glass board (Z9731DNPJ002*), reverse measurement holder, additional light
source for fiducial camera.
2. Select [Production] – [Select Program] – “ReverseAM-F-192.PGO” – [Download].
3. Set 0.7mm nozzles in all positions on the revolver and in the nozzle editor.
4. Select [Production] – [Nozzle Center Measurement] – [Rotate Center Measurement] –
[START] to carry out a rotate center measurement. Carry this measurement out at least
three times before starting PAM.
5. Select [Production] – [Nozzle Center Measurement] – [Nozzle Center Measurement] –
[START] to carry out a nozzle center measurement. Carry this measurement out at least
three times before starting PAM.
6. Put a feeder loaded with 1005R components in slot 25 of the MFU.
7. Select [Maintenance A] – [Operation Settings] and make the following settings:
Operation Mode Production
Production Mode Automatic
Error handling Error Pass
Accel. Rate 1.00

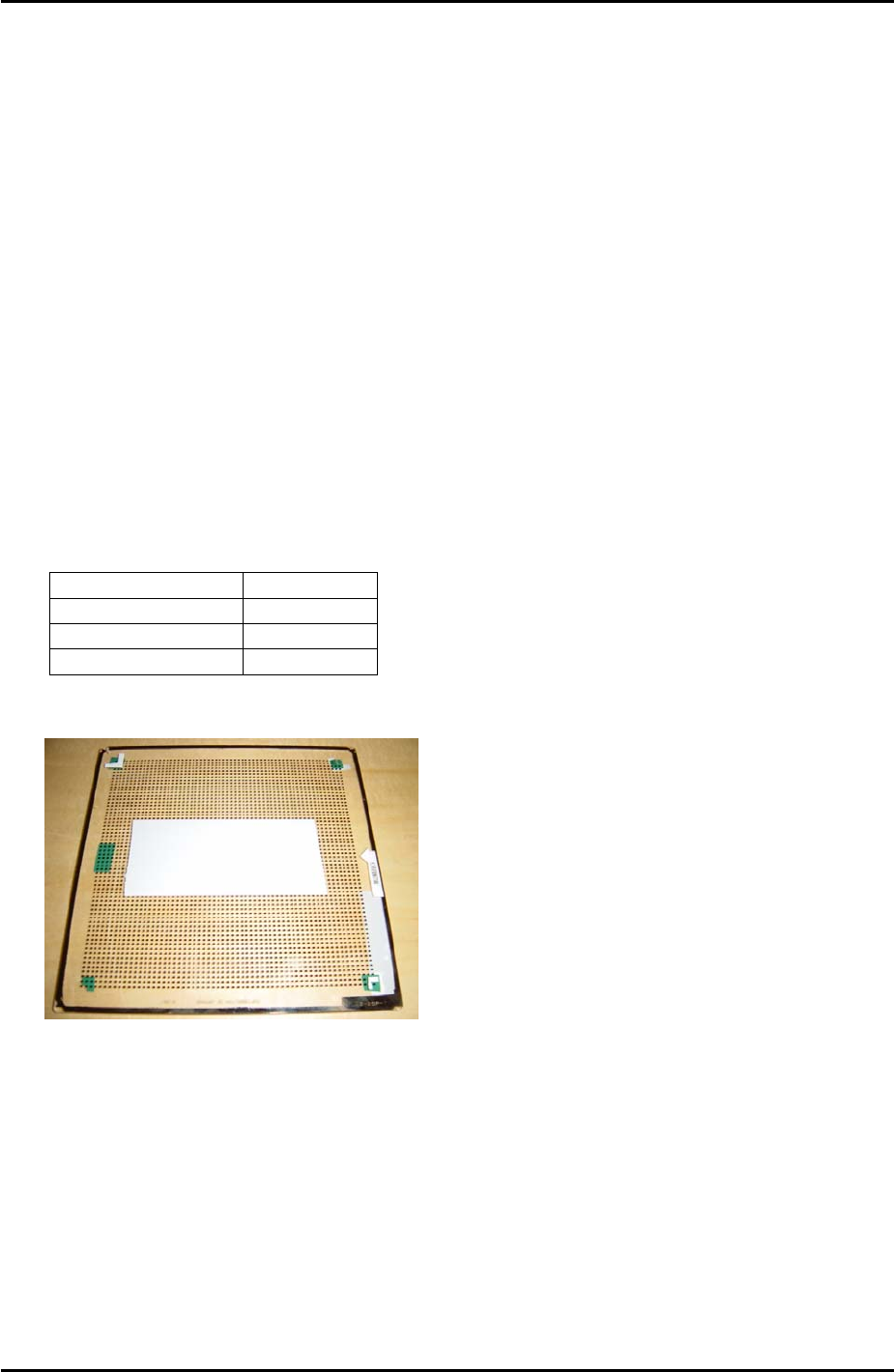

8. Put double sided tape on the center of the glass board as shown in the photo below:
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
7 – 5 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 7 Operation and Accuracy Page 6 of 8
9. Load the board in the conveyor and select [Production] – [Automatic] – [START] and
placement proceeds.
10. Once placement is completed press [CYCLE STOP] – [Close].
11. Remove the board from the conveyor and place it in the reverse measurement holder.
The surface upon which the components were placed should be facing down:
Insert in conveyor
in this direction
(Left to Right
conveyor). Plastic
stopper is at the
right of the holder.
12. Change the conveyor width to 198.5mm.

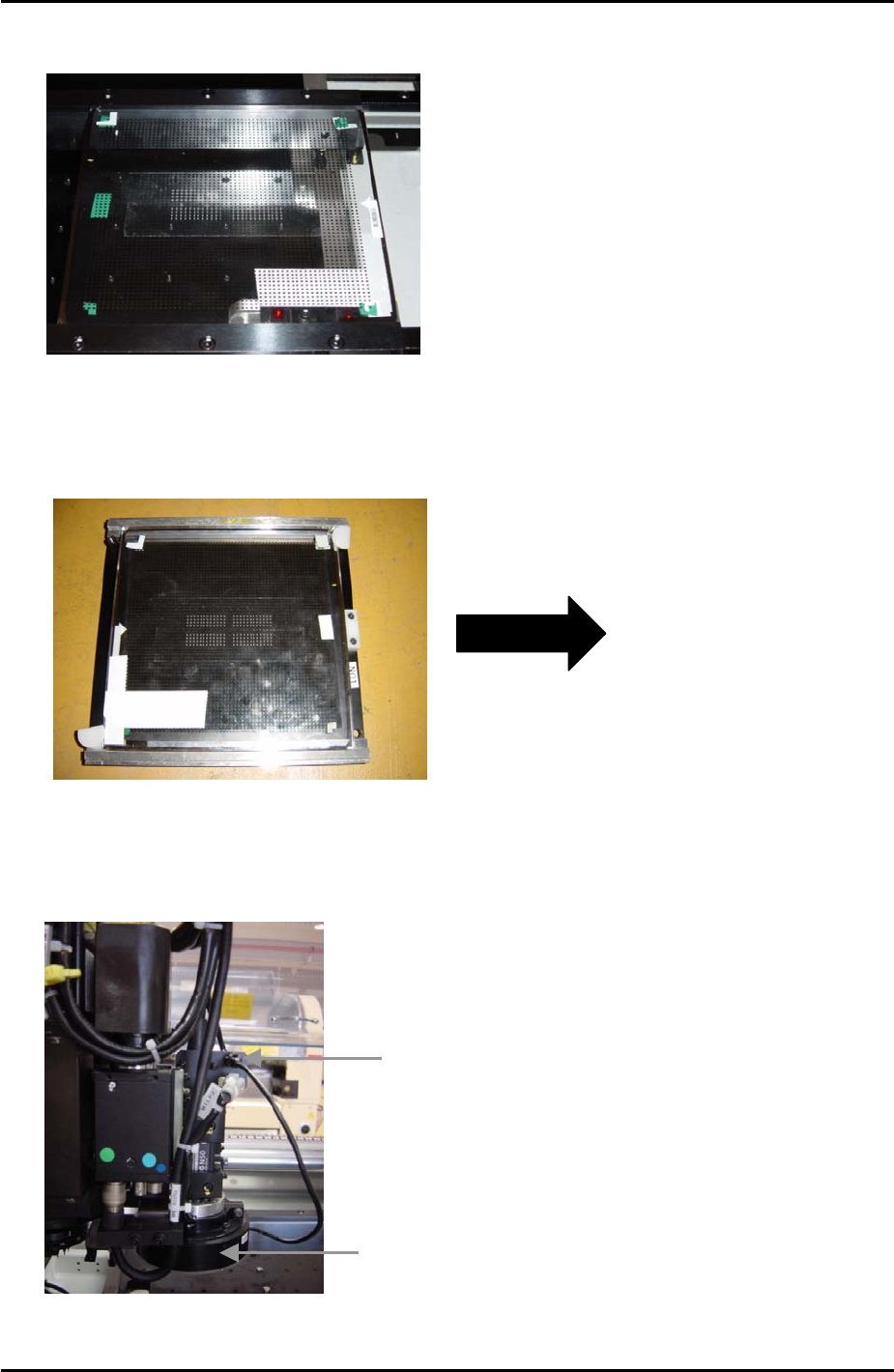

13. Install the additional light source on the fiducial camera as indicated in the photo below:
Install the light source
Connect this cable
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
7 – 6 CS Section
FK-9F98-34 XP Type II Series Training Text for Service Engineers
Edition 2.0 XP142E – Chapter 7 Operation and Accuracy Page 7 of 8
14. Load the reverse measurement holder in the conveyor and select [Conveyor Operation] –
[Load New Panel] to clamp the holder and board in the main table.
15. Select [Maintenance C] – [Accuracy Measurement] – and turn [Place Offset
Measurement Mode] ON.
16. Press [Select Program] – and select “ReverseAM-F-192.PGO”.
17. Select [Reverse Start] – [START] to start the measurement.
18. Once measurement is complete the “Accuracy Measurement Result” window opens.
Press [Side1 Offset] – [OK] to save the offsets.
19. Remove the holder from the conveyor and replace the tape on the glass board, repeating
steps 6 to 15 until the results are within the following tolerance:
Average 3∑
X
+/- 0.020 0.050
Y
+/- 0.020 0.050
Q
+/- 0.200 1.500
Side 2
1. Repeat for side 2 using “ReverseAM-R-192.PGO”.
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
7 – 7 CS Section
