Electrical extension parts
Page 7 / 9 18.11.2021
Electrical extension parts
Page 8 / 9 18.11.2021
Electrical extension parts
Page 9 / 9 18.11.2021
Pos. Item no. Description Part marking
1 00373139-03 MTC2 CONTROLLER BOARD, CPL. SPARE PART
2 00354975-01 BATTERY
3 M2003148 HEXAGON SOCKET HEAD CAP
SCREW 8.8 ZINC-C. M4X8
4 M2003149 PLAIN WASHER ZINC-COATED 4.3
5 00372639-01 CONNECTION CABLE POWER MTC
6 00372610-01 CABLE: CRASH LIGHT BARRIER
TOWER1
SPARE PART
7 00372653-01 CABLE: CRASH LIGHT BARRIER
TOWER2
8 00372632-01 CABLE: FEED AXIS
9 00372641-01 CABLE: UNLOCK DEVICE WTC
TOWER1
10 00372643-01 CABLE: UNLOCK DEVICE WTC
TOWER2
11 00372644-01 CABLE: LIFTING AXIS SPARE PART
12 00372629-01 CABLE: DISENGAGING DRIVER
TOWER1
SPARE PART
13 00372633-01 CABLE: DISENGAGING DRIVER
TOWER2
14 00372647-01 PLUG WITH CABLES MTC 2 SPARE PART
03009963S04 SLIDE-IN FRAMEWORK SPARE PART

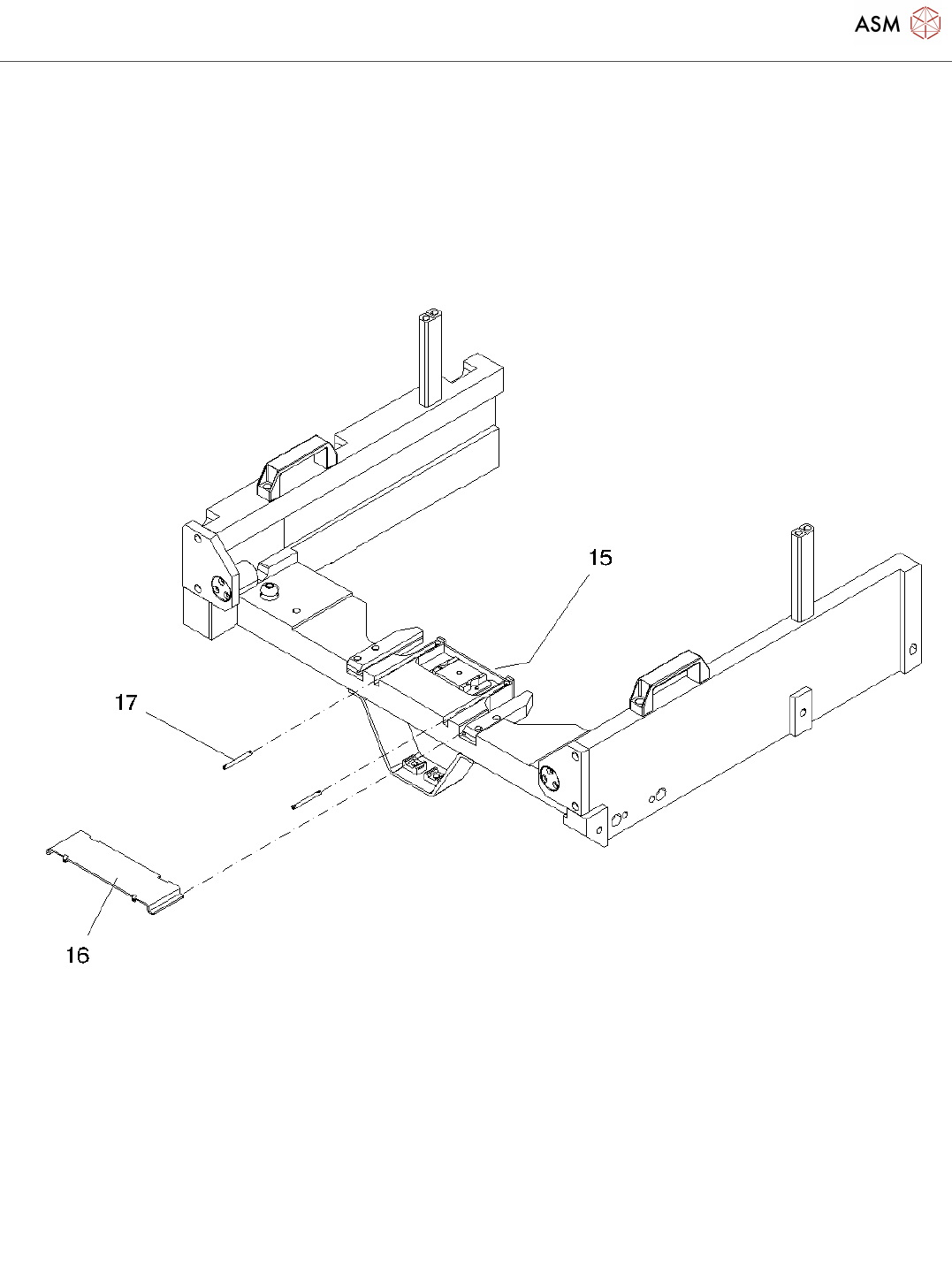

15 00372646-01 PLUG WITH CABLES DOCKING
STATION
SPARE PART
16 03010767-01 CONNECTOR COVER
17 03010782-01 TENSION SPRING 0.5X4.5X41.1
(RZ-045DI
18 00372652-02 UNIVERSAL ADAPTER,
AUTOTRANSFORMER
SPARE PART
19 M2003150 HEXAGON NUT ZINC-C. M6
20 M2003151 POSITIVE PATTERN LOCK WASHER
ZINC-C. 6
21 M2003152 WASHER ZINC-C. 6.4
22 M2003153 INSULATING BUSH
23 M2003154 RUBBER SHIM
