Pos. Item no. Description Part marking
1 03064450-02 GANTRY CARRIER, SX1/2
2 03072043-01 HANDLE NORELEM 06917-100053
3 00303193-01 DIN912-M3 X 8-A2-70
4 03079345-01 EXT. SPRING RX-038I 22.2 X 7.8 X
0.5 MM
SPARE PART

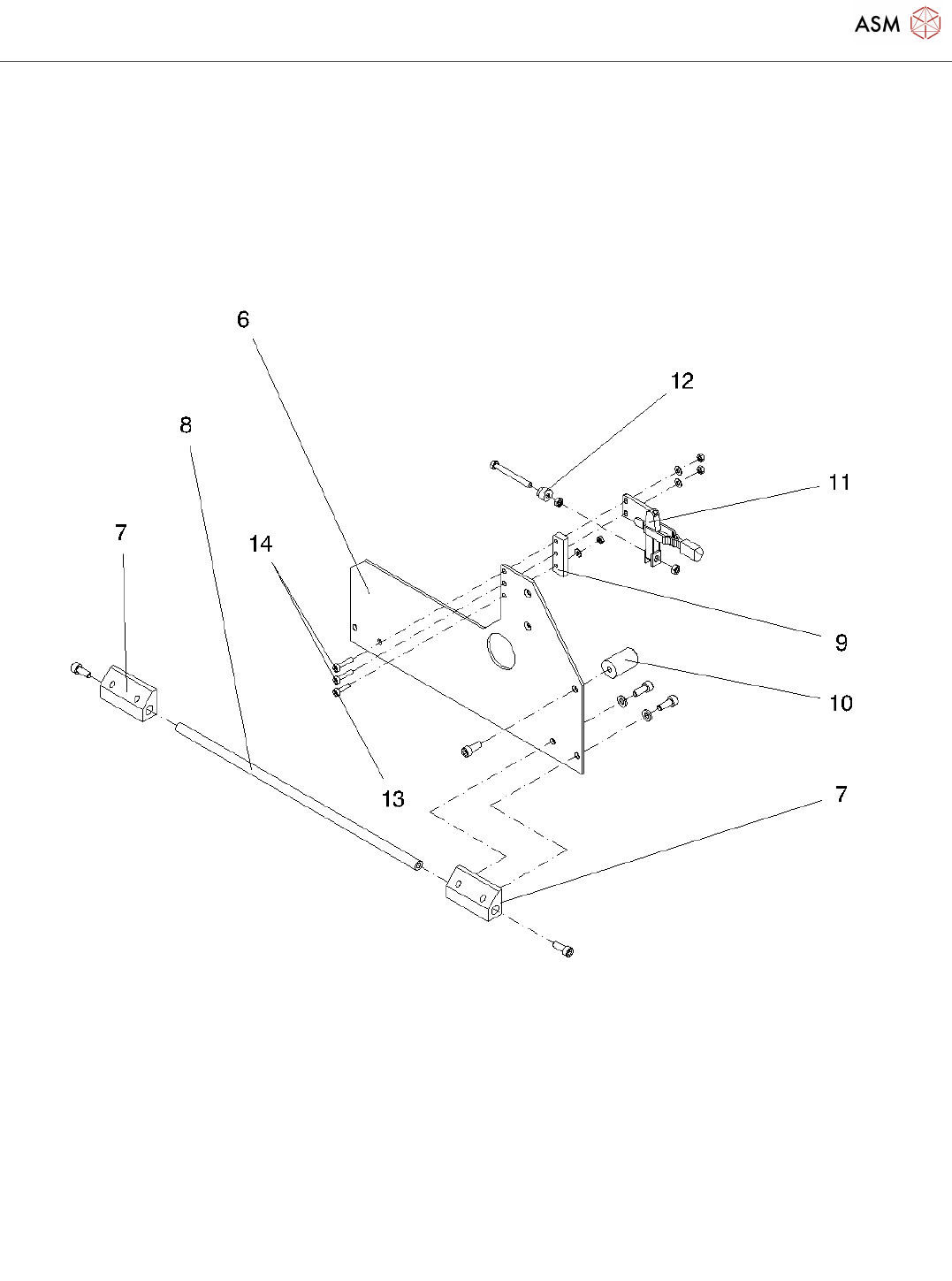

5 03079387-01 CLAMPING SYSTEM LEFT
6 03078953-02 MOUNTING SHEET SPARE PART
7 03079047-01 CONSOLE
8 03079043-01 SHAFT
9 03078978-01 SPACER PLATE
10 03079427-01 BUFFER
11 03078956-01 VERTICAL, QUICK-ACTING CLAMP
05040-05
12 03079418-01 PROTECTIVE CAPS 05280-02
13 00337990-01 DIN912-M4 X 16-A2-70
14 00340721-01 DIN912-M4 X 20-A2-70

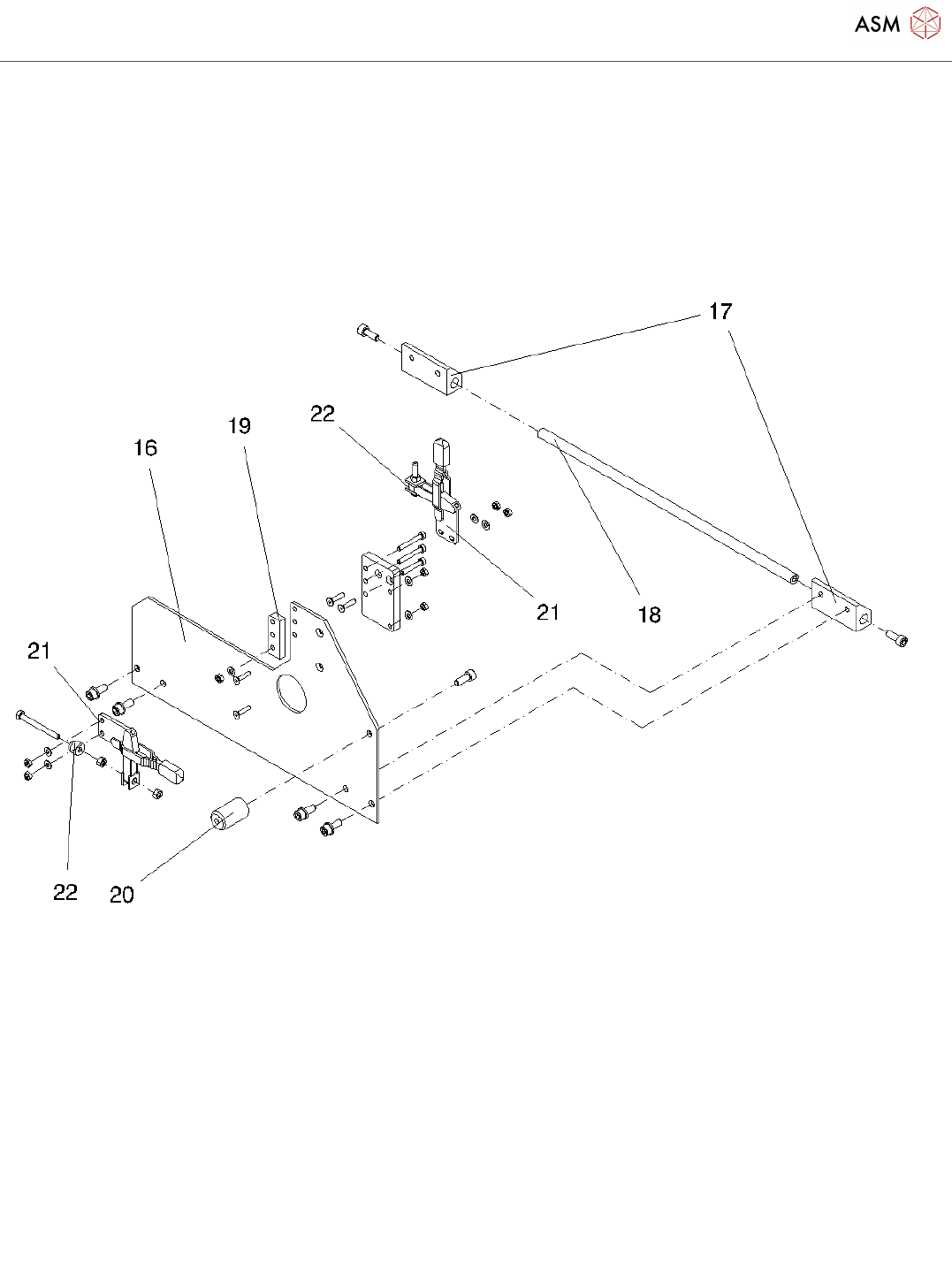

15 03079392-01 CLAMPING SYSTEM RIGHT
16 03078953-02 MOUNTING SHEET SPARE PART
17 03079047-01 CONSOLE
18 03079043-01 SHAFT
19 03078978-01 SPACER PLATE
20 03079427-01 BUFFER
21 03078956-01 VERTICAL, QUICK-ACTING CLAMP
05040-05
22 03079418-01 PROTECTIVE CAPS 05280-02
23 03067676-01 TRANSPORT LOCK X-RAIL, CPL. TOOL
24 03067727-02 TRANSPORT LOCK X-RAIL 1
25 03067728-01 TRANSPORT LOCK X-RAIL 2
03079586-01 CARRIERS BOX FOR GANTRY
SYSTEM SX
