User manual SIPLACE E 3 Technical data and assemblies
From software version SC 708.0 12/2014 Edition 3.3 Dimensions and weight
105
3.3.2 Dimensions
3.3.2.1 Dimensions of SIPLACE E double sided machine
3
Fig. 3.3 - 1 Dimensions of SIPLACE E double sided machine with 2 changeover tables
(1) Location 1 with changeover table
(2) Location 2 with changeover table
1
(2)
3 Technical data and assemblies User manual SIPLACE E
3.3 Dimensions and weight From software version SC 708.0 12/2014 Edition
106
3

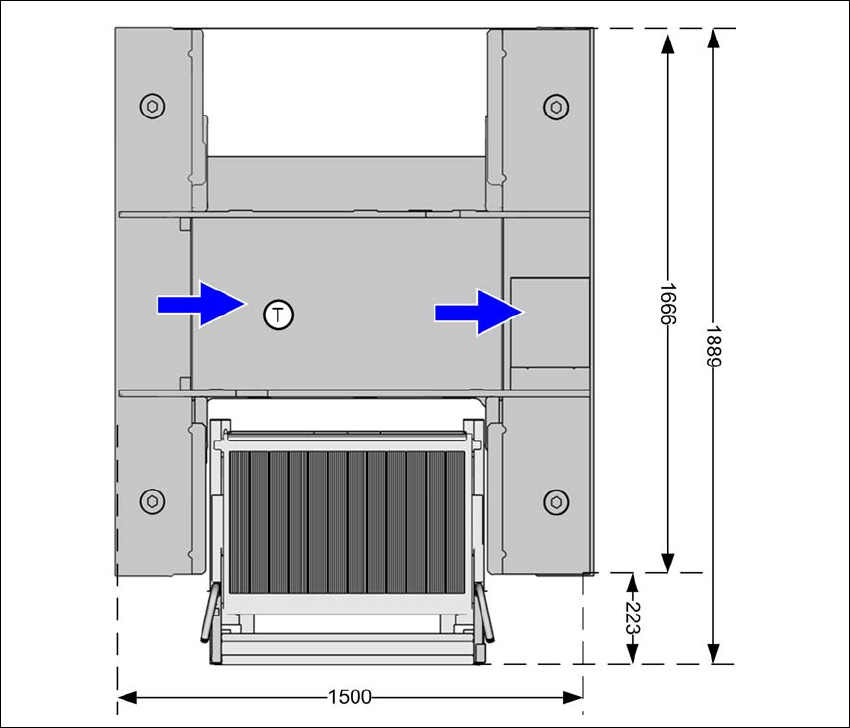

Fig. 3.3 - 2 Dimensions of SIPLACE E double sided machine with fixed table/changeover table
(1) Location 1 with fixed table
(2) Location 2 with changeover table
1
(2)
User manual SIPLACE E 3 Technical data and assemblies
From software version SC 708.0 12/2014 Edition 3.3 Dimensions and weight
107
3.3.2.2 Dimensions of SIPLACE E single sided machine
3
Fig. 3.3 - 3 Dimensions of SIPLACE E single sided machine with changeover table
